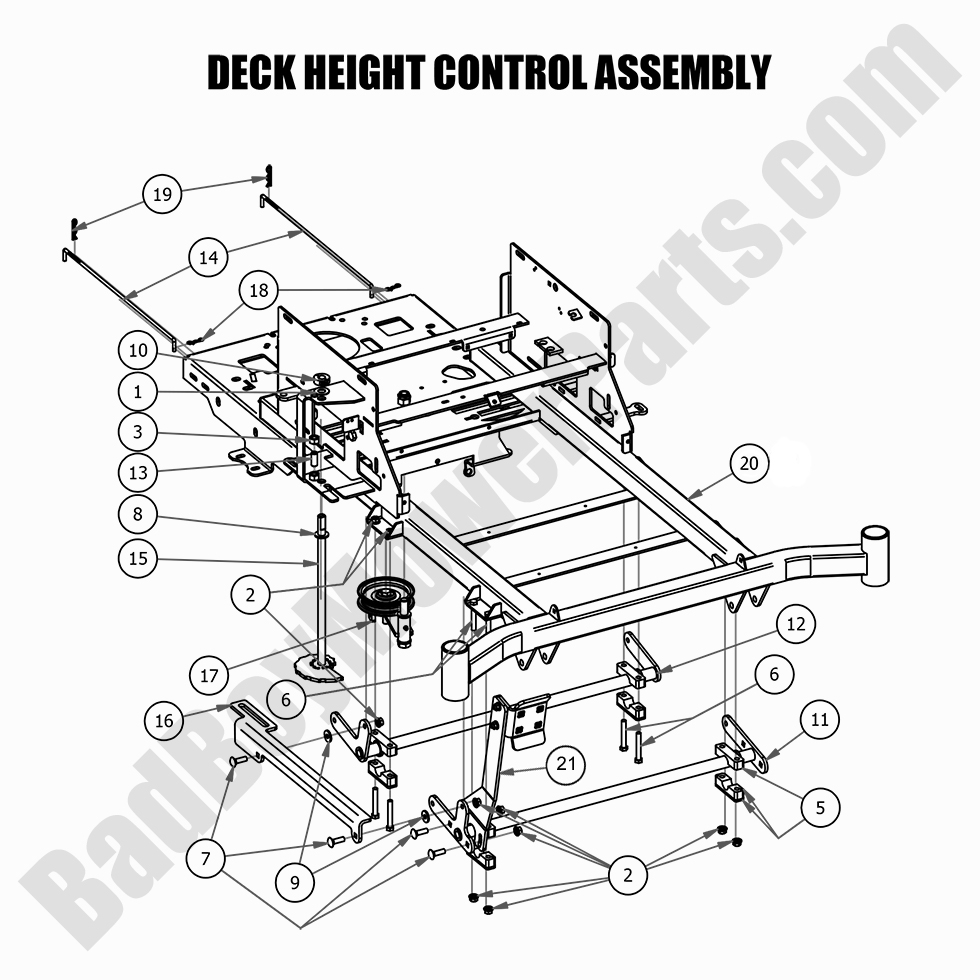

2021 ZT Avenger - Deck Height Control Assembly

2021 ZT Avenger - Deck Height Control Assembly

The 2021 ZT Avenger Deck Height Control Assembly ensures that your mower’s deck is adjusted to the desired height with ease. If you need a replacement assembly, BadBoyMowerParts.com carries the best selection of parts for all your deck height control needs. With Bad Boy Mower Part diagrams, finding the perfect match for your mower has never been easier. Whether you're a DIYer or a professional mechanic, we offer the right tools and parts to complete your repairs efficiently. Plus, enjoy Free Shipping On Orders Over $100, making your mower maintenance more affordable.

Bad Boy Mower Parts Lookup

2021 ZT Avenger - Deck Height Control Assembly
  Position Number SKU Product Title Price
1 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
6 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
7 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
8 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
9 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
10 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
11 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
12 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
13 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
14 028-0070-00 028-0070-00 - Neutral Rod
$12.48
15 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
16 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
17 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
18 044-2004-00 044-2004-00 - Bow Pin
$2.99
19 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
21 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
21 026-0019-98 026-0019-98 - Foot Pedal Assembly (See Models Used On For Detail)
$93.69
