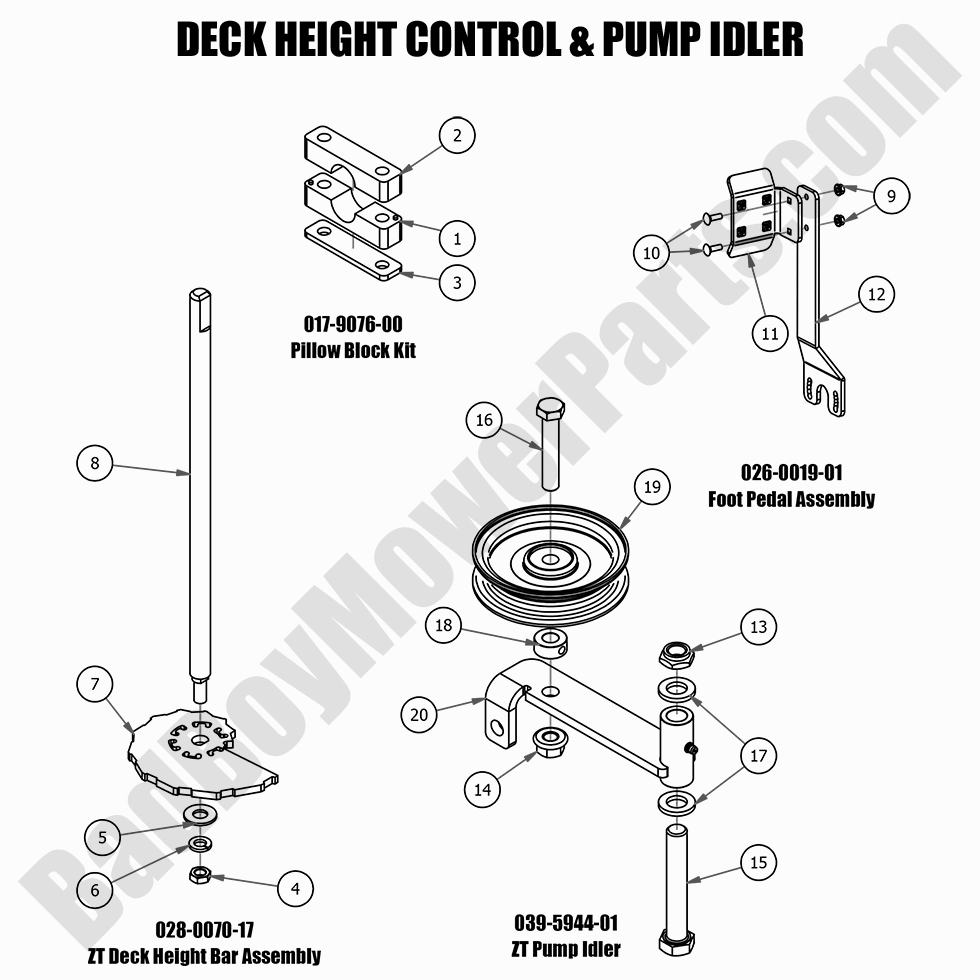

2021 ZT Avenger - Deck Height Control - Detail

2021 ZT Avenger - Deck Height Control - Detail

The 2021 ZT Avenger Deck Height Control - Detail allows you to easily adjust your mower deck to achieve the perfect cut for any type of grass. If you're looking to replace or repair this part, BadBoyMowerParts.com offers a range of high-quality components to restore your deck height control system. With our detailed Bad Boy Mower Part diagrams, you can easily find the exact parts you need. Whether you’re looking for replacement parts or upgrades, our comprehensive catalog is designed to make the repair process simple. Shop for Bad Boy Mower Parts today and take advantage of Free Shipping On Orders Over $100 for all qualifying purchases.

Bad Boy Mower Parts Lookup

2021 ZT Avenger - Deck Height Control - Detail
  Position Number SKU Product Title Price
1.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
2 017-9078-00 017-9078-00 - Pillow Block-Female (obsolete)
use part #017-9077-00
$21.28
3 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
4.0 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
4 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
5 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
6 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
7 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
8 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
9.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
9 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
10 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
11 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
12 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
13.0 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
13 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
14 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
17 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
18 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
19 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
20 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
