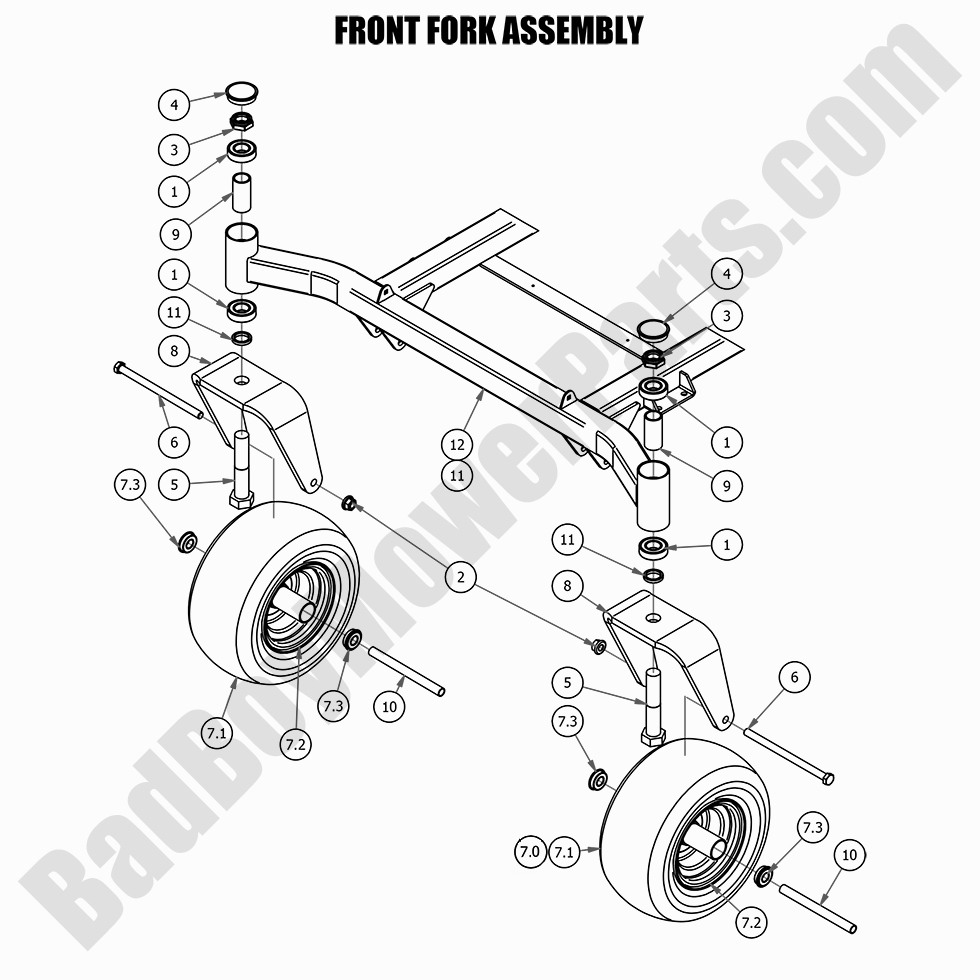

2021 ZT Avenger - Front Fork Assembly

2021 ZT Avenger - Front Fork Assembly

The 2021 ZT Avenger Front Fork Assembly is a crucial component for the stability and performance of your mower. If your front fork is damaged or in need of replacement, BadBoyMowerParts.com provides a variety of high-quality replacement parts. Our Bad Boy Mower Part diagrams guide you to the right components, ensuring a perfect fit for your mower. Whether you're looking for front fork assemblies or related parts, we have you covered. Take advantage of Free Shipping On Orders Over $100 and get the parts you need at an affordable price.

Bad Boy Mower Parts Lookup

2021 ZT Avenger - Front Fork Assembly
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
4 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
5 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
6 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
7.0 022-0007-00 022-0007-00 12X6X6 Black Wheel Assembly
$139.99
7.1 022-0010-00 022-0010-00 - 12x6x6 Front Tire
$78.10
7.2 022-0009-00 022-0009-00 - 6 x 4.50 Black Wheel (See Models Used On For Details)
$85.27
7.3 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
8 023-0003-00 023-0003-00 - Front Fork (See Models Used On For Details)
$39.04
9 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
10 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
11 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
12 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
