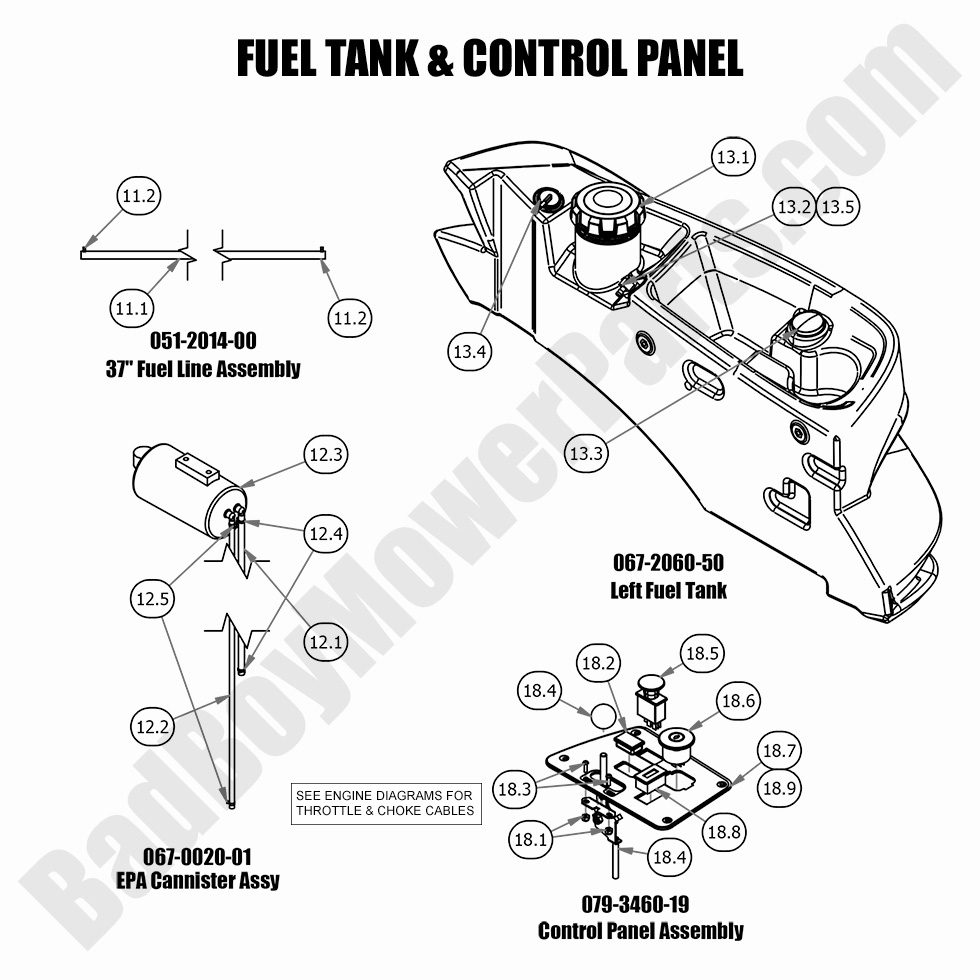

2021 ZT Avenger - Fuel Tank & Control Panel

2021 ZT Avenger - Fuel Tank & Control Panel

The 2021 ZT Avenger Fuel Tank & Control Panel are integral components of your mower, ensuring smooth fuel flow and easy operation. BadBoyMowerParts.com offers top-notch replacement fuel tanks and control panels that are designed for durability and performance. Our Bad Boy Mower Part diagrams make it easy to find the right parts for your mower. If you're in need of fuel tank replacements or control panel repairs, our comprehensive catalog has the parts you need. Plus, enjoy Free Shipping On Orders Over $100 to make your maintenance both easy and affordable.

Bad Boy Mower Parts Lookup

2021 ZT Avenger - Fuel Tank & Control Panel
  Position Number SKU Product Title Price
11.0 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
11.1 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
11.2 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
12.0 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
12.1 051-2020-01 051-2020-01 - 1/4 Vinyl 46" EPA Line (See Models Used On For Details)
$12.48
12.2 051-2025-02 051-2025-02 - 3/16 Vinyl 55" EPA Line
$12.48
12.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
12.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
12.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
13.0 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$349.99
13.1 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
13.2 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
13.3 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
13.4 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
13.5 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
18.0 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
18.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
18.2 018-1040-00 018-1040-00 - Light Plug
$2.99
18.3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
18.5 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
18.6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
18.7 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
18.8 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
18.9 091-0338-18 091-0338-18 - Control Panel Decal 2018-2021 MZ/Magnum/ZT/Maverick
$14.97
