2021 ZT Avenger - Steering Arm - Detail

2021 ZT Avenger - Steering Arm - Detail

The 2021 ZT Avenger Steering Arm - Detail is an important part of your mower's steering system, allowing for precise control. If you need to replace or repair your steering arm, BadBoyMowerParts.com has the parts you need. With our Bad Boy Mower Part diagrams, finding the right steering arm and related parts is quick and easy. Shop for Bad Boy Mower Parts to keep your mower steering like new. And with Free Shipping On Orders Over $100, maintenance has never been more affordable.

Bad Boy Mower Parts Lookup

2021 ZT Avenger - Steering Arm - Detail
  Position Number SKU Product Title Price
1A 031-0017-01 031-0017-01 - Left Steering Arm Assembly (See Models Used On for Details)
$145.99
1B 031-0018-01 031-0018-01 - Right Steering Arm Assembly (See Models Used On for Details)
$145.99
1C 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
1D 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
19 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
21 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
22 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
23 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
24 031-0017-98 031-0017-98 - 2017-2023 Left Drive Lever Housing (See Models Used On For Details)
$31.23
25.0 031-8850-70 031-8850-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$93.64

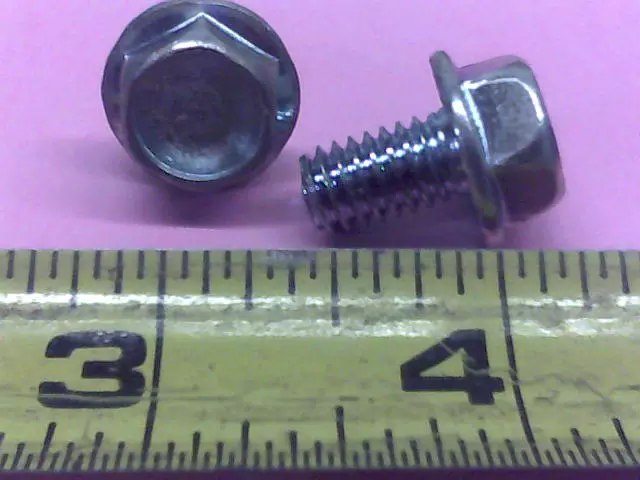

25.1 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
25.2 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
25.3 031-8850-02 031-8850-02 - Steering Arm Left - Tubing (See Models Used On For Details)
$85.12
25.4 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
25.5 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
26 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
27 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
29 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
30 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
36 031-0018-98 031-0018-98 - 2017-2023 Right Drive Lever Housing (See Models Used On For Details)
$23.42
37.0 031-8851-70 031-8851-70 - Right Steering Arm Black Elbow (See Models Used On For Details)
$93.64
37.3 031-8851-02 031-8851-02 - Steering Arm Right - 5" Tubing (See Models Used On For Details)
$85.12
37.4 031-9025-70 031-9025-70 - Right Steering Arm Black Elbow
$85.17
