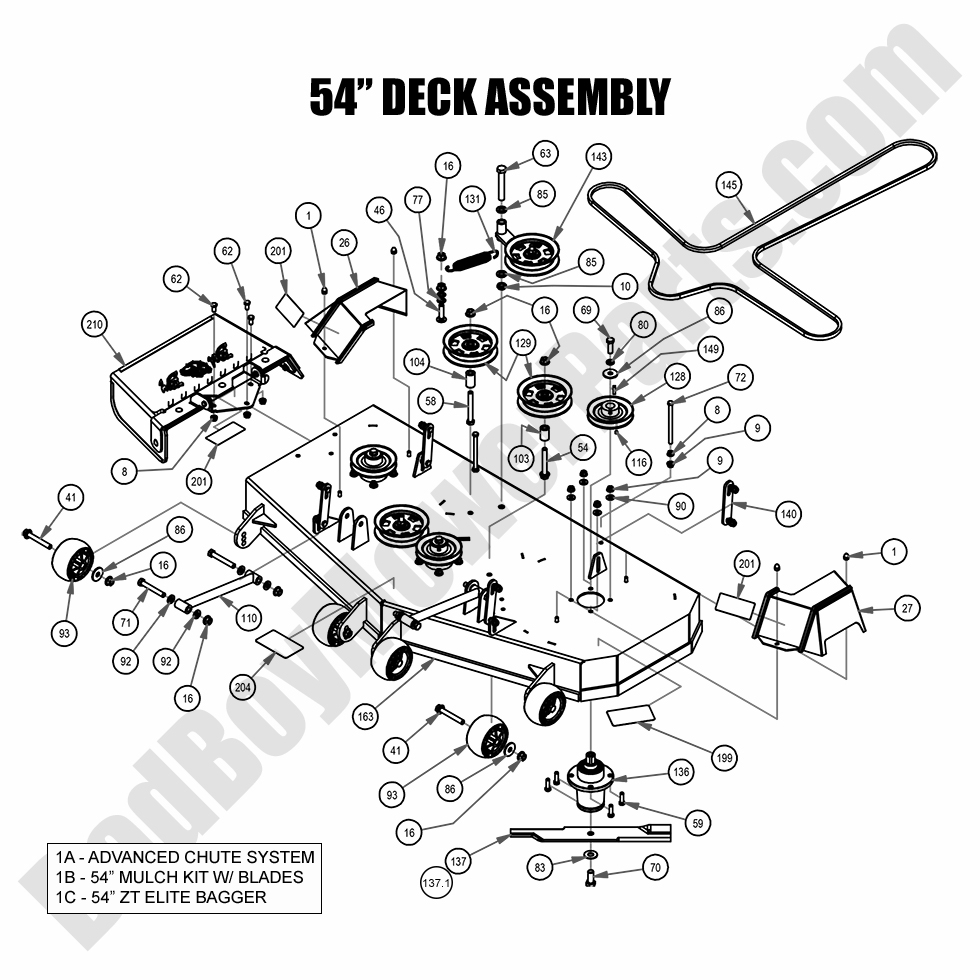

2021 ZT Elite - 54" Deck Assembly

2021 ZT Elite - 54" Deck Assembly

For those with the 2021 ZT Elite 54" Deck Assembly, BadBoyMowerParts.com is your one-stop shop for all the necessary parts. We offer an extensive selection of Bad Boy Mower Parts, including everything from deck pulleys to the blades that ensure optimal performance. The Bad Boy Lawn Mower Parts available on our site are specifically designed to fit the 2021 ZT Elite 54" deck, ensuring that you don’t have to worry about compatibility issues. Thanks to our clear and detailed Bad Boy Mower Part diagrams, you can quickly identify what you need for the deck assembly and parts replacement. Shopping for Bad Boy Parts Online is easy and secure, and we offer Free Shipping On Orders Over $100 to make your experience even more convenient. Take care of your mower’s deck today and enjoy smooth, efficient operation all season long.

Bad Boy Mower Parts Lookup

2021 ZT Elite - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0260-50 210-0260-50 - 2017-2025 60" Mulch Kit w/Blades (Not for MZ or Avenger)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
8 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
10 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
26A 014-5020-00 014-5020-00 - 2021-2022 Maverick 54"/60" RH Pulley Cover
$28.39
27 014-5021-00 014-5021-00 - 2021-2022 Maverick 54"/60" LH Pulley Cover
$28.39
41 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
46 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
54 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
58 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
59 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
62 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
63 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
69 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
70 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
71 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
72 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
77 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
80 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
83 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
85 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
86 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
90 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
92 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
93 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
103 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
104 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
110 028-0004-00 028-0004-00 - 2017-2021 ZT/MZ/MZ Magnum Deck Locator (obsolete)
use part #028-0004-22
$46.84
116 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
128 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
129 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
131 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
136 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
137.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
137 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
140 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
143 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
145 041-1560-00 041-1560-00 - Deck Belt (See Models Used On For Details)
$88.80
149 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
163 060-5417-00 060-5417-00 - 2017-2022 54" ZT & 2018-2022 54" Maverick Deck Shell
$1275.76
199 091-0904-18 091-0904-18 - 54" Deck Decal (See Models Used On For Details)
$6.41
201 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
204 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
210 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
