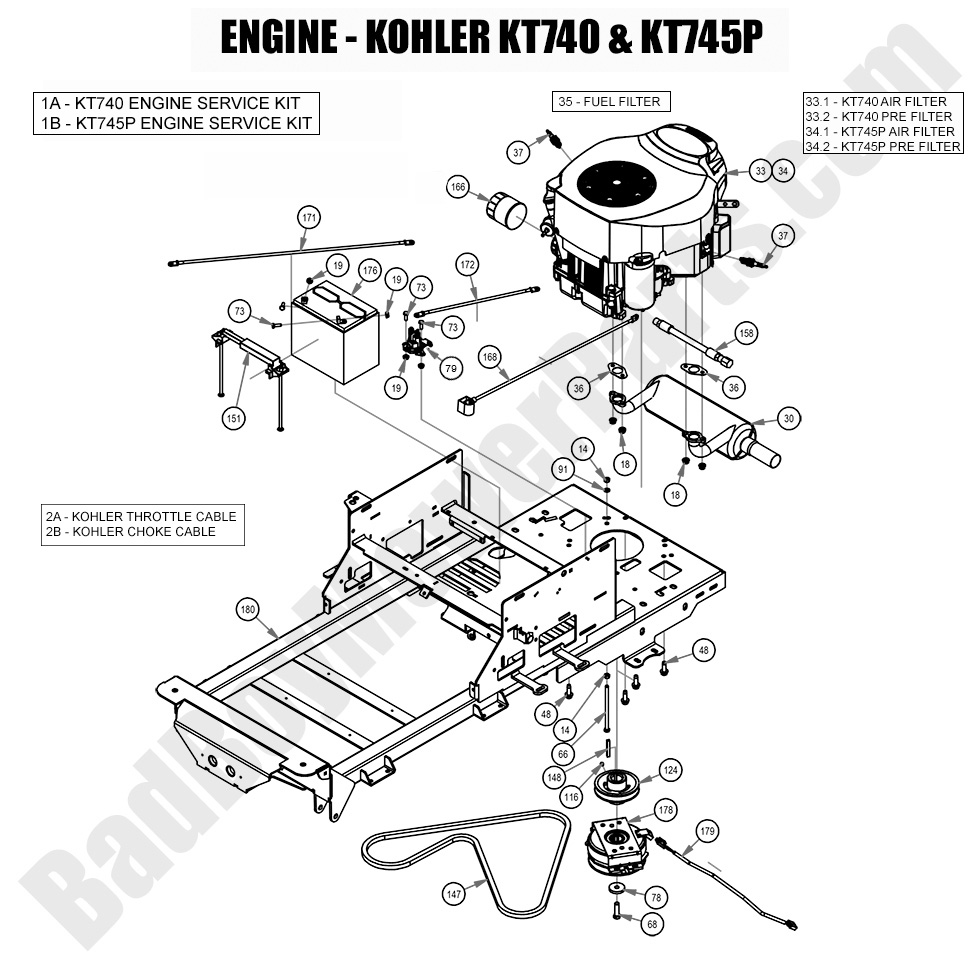

2021 ZT Elite - Engine - Kohler KT740 & KT745P

2021 ZT Elite - Engine - Kohler KT740 & KT745P

The 2021 ZT Elite Engine - Kohler KT740 & KT745P is known for its power and performance. If you're looking to maintain or repair this engine, BadBoyMowerParts.com has all the necessary Bad Boy Mower Parts to keep it in optimal condition. We offer a wide range of Bad Boy Lawn Mower Parts specifically designed for Kohler engines, including air filters, spark plugs, and oil filters. Our Bad Boy Mower Part diagrams make it simple to find the exact parts you need for your 2021 ZT Elite. Shopping for Bad Boy Parts Online has never been easier, allowing you to place an order from the comfort of your home. Additionally, with Free Shipping On Orders Over $100, it’s more convenient and cost-effective than ever to maintain your engine. Trust BadBoyMowerParts.com for all your Kohler KT740 & KT745P engine needs and keep your mower running smoothly.

Bad Boy Mower Parts Lookup

2021 ZT Elite - Engine - Kohler KT740 & KT745P
  Position Number SKU Product Title Price
1A 063-2000-06 063-2000-06 - Kohler 7000 Series Engine Service Kit
$94.47
1B 063-2000-12 063-2000-12 - Engine Service Kit For Kohler 7000 Series PRO
$106.06
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
14 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
18 013-8240-00 013-8240-00 - M8 Nut For Exhaust (See Models Used On For Details)
$7.36
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
30 015-0051-00 015-0051-00 - 2017-2024 Kohler Exhaust MZ/ZT/Maverick
$217.48
33.0 015-2020-00 015-2020-00 - 25hp Kohler-48" 2014-2022 ZT KT740-3030 (obsolete)
use part #015-2018-00
$2399.99
33.1 063-5003-00 063-5003-00 - 25/26 HP Koh Air Filter ZT/MZ
$34.23
33.2 063-5002-00 063-5002-00 - 25/26 HP Koh Precleaner ZT/MZ
$9.89
34.0 015-2026-00 015-2026-00 - 26hp Kohler-2018-2022 ZT-KT745-3088 (obsolete)
use part #015-2018-00
$2399.99
34.1 015-2026-03 015-2026-03 - Air Filter Element for Kohler
$37.44
34.2 015-2026-02 015-2026-02 - Air Pre-Cleaner for Kohler
$10.91
35 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
36 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
37 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
48 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
66 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
68 018-5450-00 018-5450-00 - 7/16-20 x 1 1/2 Fine Thread Bolt Gr8
$2.99
73 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
78 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
79 108-0001-00 108-0001-00 - Solenoid
$29.41
91 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
116 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
124 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
147 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
148 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
151 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
158 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
166.0 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$29.69
168 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
171 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
172 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
178 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
179 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
180 070-5421-00 070-5421-00 - 2021 Suspension ZT Frame--Painted
$1199.99
