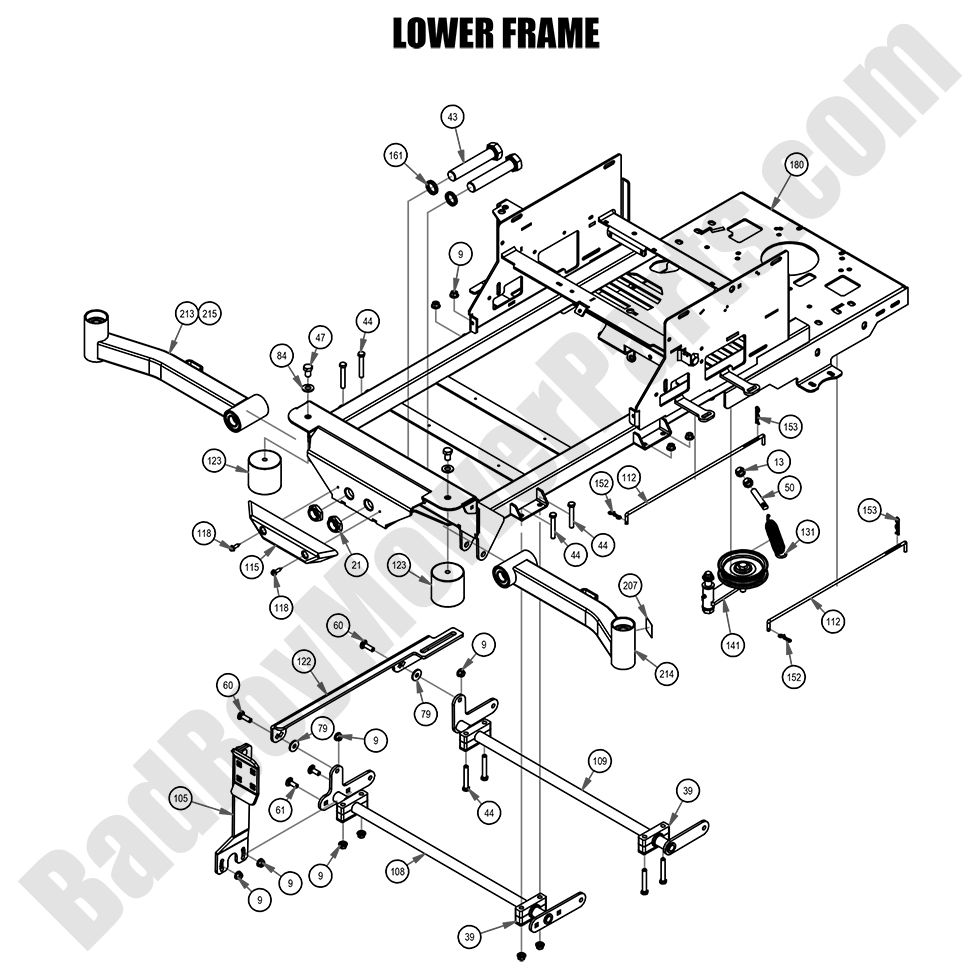

2021 ZT Elite - Lower Frame

2021 ZT Elite - Lower Frame

The 2021 ZT Elite Lower Frame provides essential support to your mower’s overall structure. If you’re looking to replace or maintain this component, BadBoyMowerParts.com has a complete selection of Bad Boy Mower Parts to keep your mower in peak working condition. Our Bad Boy Lawn Mower Parts include sturdy and reliable lower frames that are compatible with the 2021 ZT Elite. We also offer detailed Bad Boy Mower Part diagrams to make it easier for you to locate the correct parts for your mower. Shopping for Bad Boy Parts Online through our site ensures a smooth ordering experience, and with Free Shipping On Orders Over $100, you’ll save even more. Trust BadBoyMowerParts.com for all your 2021 ZT Elite lower frame and maintenance needs, and keep your mower running strong.

Bad Boy Mower Parts Lookup

2021 ZT Elite - Lower Frame
  Position Number SKU Product Title Price
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
21 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
39 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
43 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
44 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
47 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
50 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
60 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
61 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
79 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
84 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
105 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
108 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
109 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
112 028-0070-00 028-0070-00 - Neutral Rod
$12.48
115 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
118 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
122 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
123 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
131 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
141 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
152 044-2004-00 044-2004-00 - Bow Pin
$2.99
153 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
161 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
180 070-5421-00 070-5421-00 - 2021 Suspension ZT Frame--Painted
$1199.99
207 091-8002-00 091-8002-00 - Independently Articulating Front Susp. Arms Patent Decal
$5.49
213 250-1751-21 250-1751-21 2021-2024 ZT Suspension Arm Assy. Short Right
$109.99
214 250-1801-21 250-1801-21 - 2021-2022 ZT Suspension Arm Assembly Left
$106.99
215 250-1851-21 250-1851-21 - 2021-2022 ZT Suspension Arm Assembly Long Right (54 & 60 Decks)
$106.99
