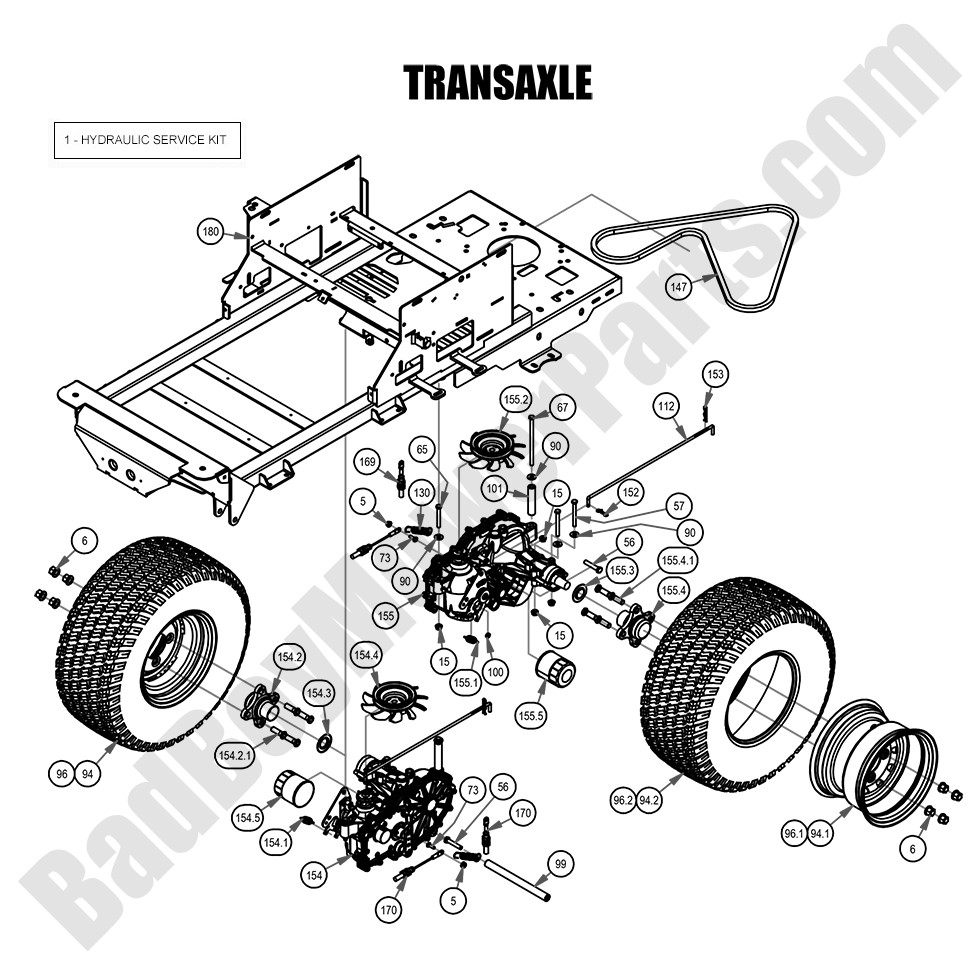

2021 ZT Elite - Transaxle

2021 ZT Elite - Transaxle

The 2021 ZT Elite Transaxle is a critical component for the smooth operation of your mower. If you're in need of a transaxle replacement or maintenance parts, BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts designed to fit your mower's specifications. From gears to seals, we provide everything you need to ensure your 2021 ZT Elite transaxle works seamlessly. Our Bad Boy Lawn Mower Parts are carefully selected for quality and durability, and our Bad Boy Mower Part diagrams make it easy to find the right part. Enjoy the convenience of ordering Bad Boy Parts Online, with the added benefit of Free Shipping On Orders Over $100. Trust BadBoyMowerParts.com to provide the parts that will keep your 2021 ZT Elite running like new, no matter the conditions.

Bad Boy Mower Parts Lookup

2021 ZT Elite - Transaxle
  Position Number SKU Product Title Price
1 085-4051-01 085-4051-01 - Hydro Service Kit for 2021 & Newer ZT Avenger, ZT Elite & Maverick Models (Without Expansion Tanks)
$125.99
5 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
6 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
15 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
56 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
57 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
65 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
67 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
73 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
90 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
94.1 022-2015-50 022-2015-50 - ZT Wheel for 54" and 60" decks, fits 022-2015-00 & 022-2215-00
$114.99
94.2 022-2020-00 022-2020-00 - ZT Tire Only 22x11-10 Carlisle
$289.99
94 022-2015-00 022-2015-00 - ZT Black Assy 22x11-10 (See Models Used On For Details)
$320.99
96.1 022-2019-17 022-2019-17 - 10" Black Wheel for 48" ZT
$99.50

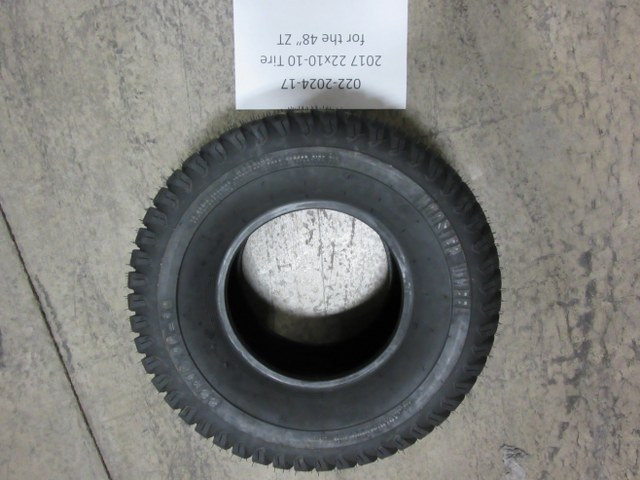

96.2 022-2024-17 022-2024-17 - 22x10-10 Tire for the 48" ZT fits the 022-2018-00
$175.99

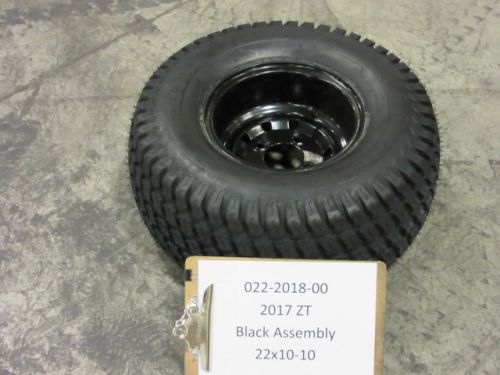

96 022-2018-00 022-2018-00 - ZT Black Assy 22x10-10 48" Deck (See Models Used On For Details)
$320.99
99 025-0017-00 025-0017-00 - Transaxle Spacer (See Models Used On For Detail)
$14.04
100 025-0036-00 025-0036-00 - Drive Arm Transaxle Spacer
$5.49
101 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
112 028-0070-00 028-0070-00 - Neutral Rod
$12.48
130 034-1026-00 034-1026-00 - Brake Return Spring (See Models Used On For Details)
$14.19
147 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
152 044-2004-00 044-2004-00 - Bow Pin
$2.99
153 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
154.1 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
154.2.1 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
154.2 050-2076-00 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details)
$90.56
154.3 050-8010-00 050-8010-00 - ZT/Maverick Transaxle Seal Kit (ZT-2800)
$109.46
154.4 050-2070-00 050-2070-00 - 2020 -2024 ZT Avenger/ ZT/Maverick Transaxle Fan/Pulley Kit
$85.17
154.5 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
154 050-2095-02 050-2095-02 - 2021-2022 RH 3100 Transaxle
$729.99
155 050-2096-02 050-2096-02 - 2021-2022 LH 3100 Transaxle
$729.99
169 064-3050-21 064-3050-21 - 2021-2025 Load Balanced Brake Cable 1
$56.77
170 064-3051-21 064-3051-21 - 2021-2025 Load Balanced Brake Cable 2
$56.77
180 070-5421-00 070-5421-00 - 2021 Suspension ZT Frame--Painted
$1199.99
