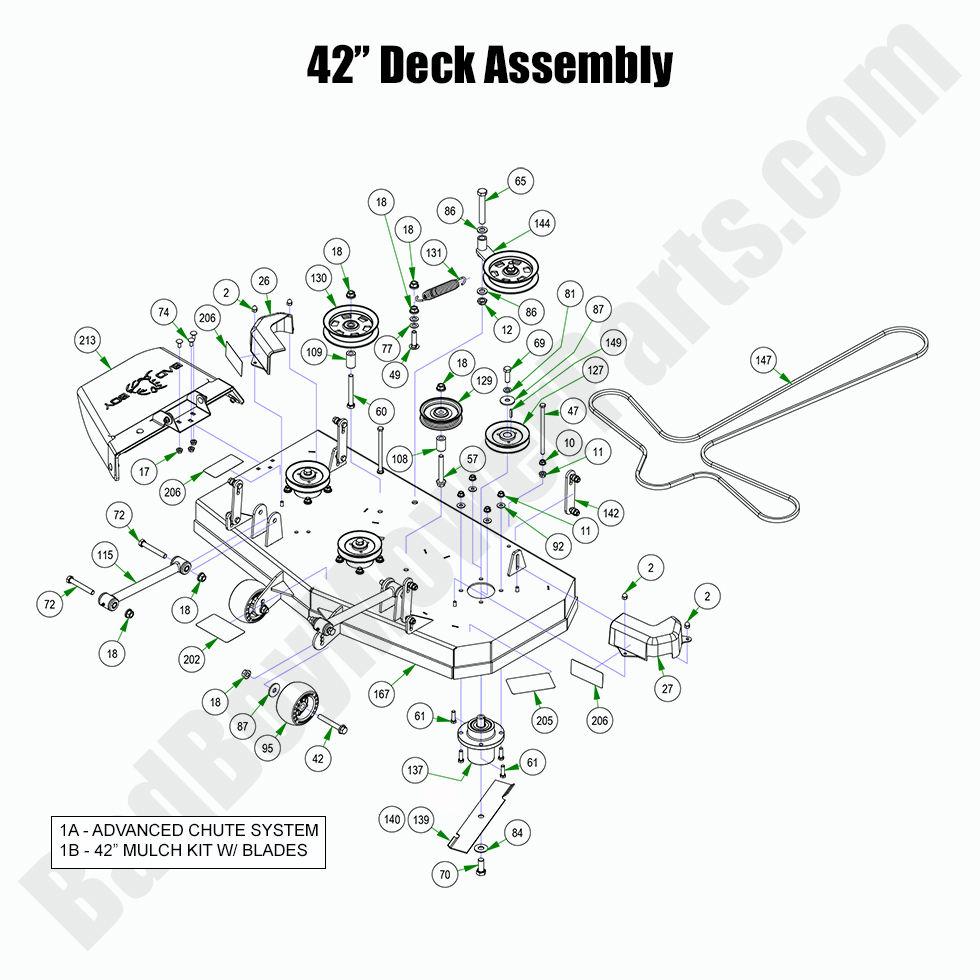

2022 MZ & MZ Magnum - 42" Deck Assembly

2022 MZ & MZ Magnum - 42" Deck Assembly

The 2022 MZ & MZ Magnum 42" Deck Assembly is a vital component for maintaining an even cut across your lawn. At BadBoyMowerParts.com, we offer a range of high-quality Bad Boy Mower Parts that ensure durability and performance. If you're replacing or repairing the deck, our Bad Boy Mower Part diagrams will guide you through each step of the process. We stock all necessary Bad Boy Lawn Mower Parts for this assembly, from blades to pulleys, helping you get your mower back in top shape. With the convenience of shopping for Bad Boy Parts Online, you can easily find the right deck components. Plus, with Free Shipping On Orders Over $100, you’ll save money while keeping your mower running smoothly. Trust BadBoyMowerParts.com for reliable parts and excellent customer service every time you need a new deck assembly.

Bad Boy Mower Parts Lookup

2022 MZ & MZ Magnum - 42" Deck Assembly
  Position Number SKU Product Title Price
1A 088-4842-00 088-4842-00 - Advanced Chute System for all MZ, MZ Magnum & ZT Avenger decks
$249.00
1B 210-0142-50 210-0142-50 - MZ 42" Mulch Kit w/ Blades (See Models Used On For Details)
$318.45
2 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
10 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
12 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
26 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
27 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
42 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
47 018-0073-00 018-0073-00 - 3/8-16 x 6.5 Hex Head GR.5
$3.29
49 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
57 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
60 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
61 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
65 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
69 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
70 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
72 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
74 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
77 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
81 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
84 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
86 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
87 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
92 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
95 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
108 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
109 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
115 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
127 033-4820-00 033-4820-00 - Spindle Pulley - 42"/48" MZ/MZ Magnum, 34"/36" Revolt/Revolt SD
$31.22
129 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
130 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
131 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
137 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
139 038-4221-00 038-4221-00 - 42" High Lift Fusion Blade for MZ
$22.99
140 038-4222-00 038-4222-00 - 42" Gator Mulching Blade
$22.99
142 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
144 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
147 041-4022-00 041-4022-00 - B138 Deck Belt (See Models Used On For More Details, Not For 54" CZT/Stand-On)
$78.01
149 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
167 060-2442-00 060-2442-00 - 2017-2022 42" MZ Deck Welded
$1059.99
202 091-0393-00 091-0393-00 - 48"/ 42" Deck Route Decal (See Models Used On for Details)
$11.76
205 091-1048-18 091-1048-18 - 2018-2022 42" MZ/Comp Out Deck Decal
$6.04
206 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
213 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
