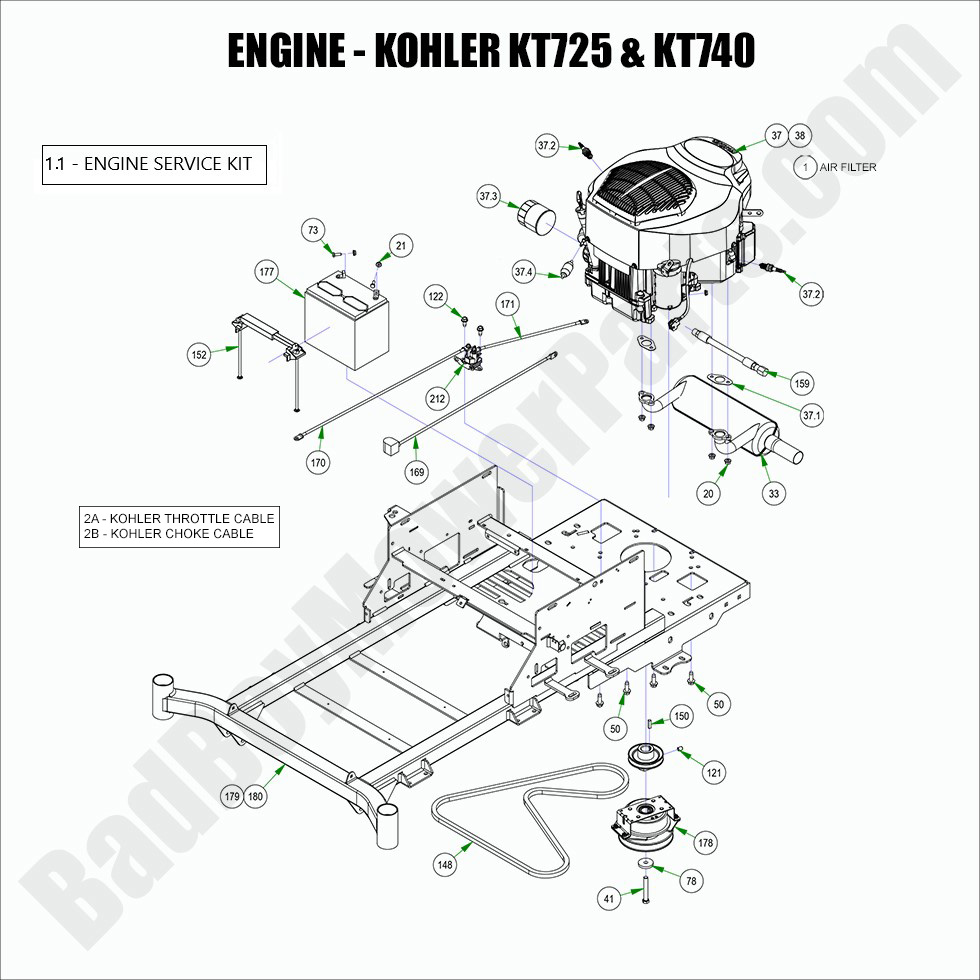

2022 MZ & MZ Magnum - Engine - Kohler KT725 & KT740

2022 MZ & MZ Magnum - Engine - Kohler KT725 & KT740

For the 2022 MZ & MZ Magnum Engine - Kohler KT725 & KT740, BadBoyMowerParts.com provides all the essential parts you need for repairs and maintenance. Our extensive inventory includes high-quality Bad Boy Mower Parts such as air filters, carburetors, and spark plugs that are compatible with the Kohler KT725 & KT740 engines. Our Bad Boy Mower Part diagrams help you identify the right components, ensuring your mower continues to operate at peak efficiency. We specialize in Bad Boy Lawn Mower Parts, offering a range of engine components designed to extend the life of your engine. With the convenience of shopping for Bad Boy Parts Online, finding the right parts has never been easier. Plus, take advantage of our Free Shipping On Orders Over $100, making it even more affordable to maintain your mower. Shop with us today for your Kohler KT725 & KT740 engine parts!

Bad Boy Mower Parts Lookup

2022 MZ & MZ Magnum - Engine - Kohler KT725 & KT740
  Position Number SKU Product Title Price
1.1 063-2000-06 063-2000-06 - Kohler 7000 Series Engine Service Kit
$94.47
1A 063-5002-00 063-5002-00 - 25/26 HP Koh Precleaner ZT/MZ
$9.89
1 063-5003-00 063-5003-00 - 25/26 HP Koh Air Filter ZT/MZ
$34.23
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
20 013-8240-00 013-8240-00 - M8 Nut For Exhaust (See Models Used On For Details)
$7.36
21 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
33 015-0051-00 015-0051-00 - 2017-2024 Kohler Exhaust MZ/ZT/Maverick
$217.48
37.1 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
37.2 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
37.3 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$29.69
37.4 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
37 015-2014-00 015-2014-00 - 25hp Kohler 2014-2022 MZ, 2020-2022 ZT Avenger-KT740-3048 (obsolete)
use part #015-2017-00
$2499.99
38 015-2015-00 015-2015-00 - 22 Kohler MZ/Magnum-KT725-3035 (obsolete)
use part #015-2017-00
$2499.99
41 018-0007-21 018-0007-21 - 7/16-20x3 Hex Bolt GR8 w/Patch
$3.29
50 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
73 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
78 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
121 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
122 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
148 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
150 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
152 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
159 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
169 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
170 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
171 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
178 070-0055-00 070-0055-00 - PTO Clutch (See Models Used On For Detail)
$279.99
212 108-0001-00 108-0001-00 - Solenoid
$29.41
