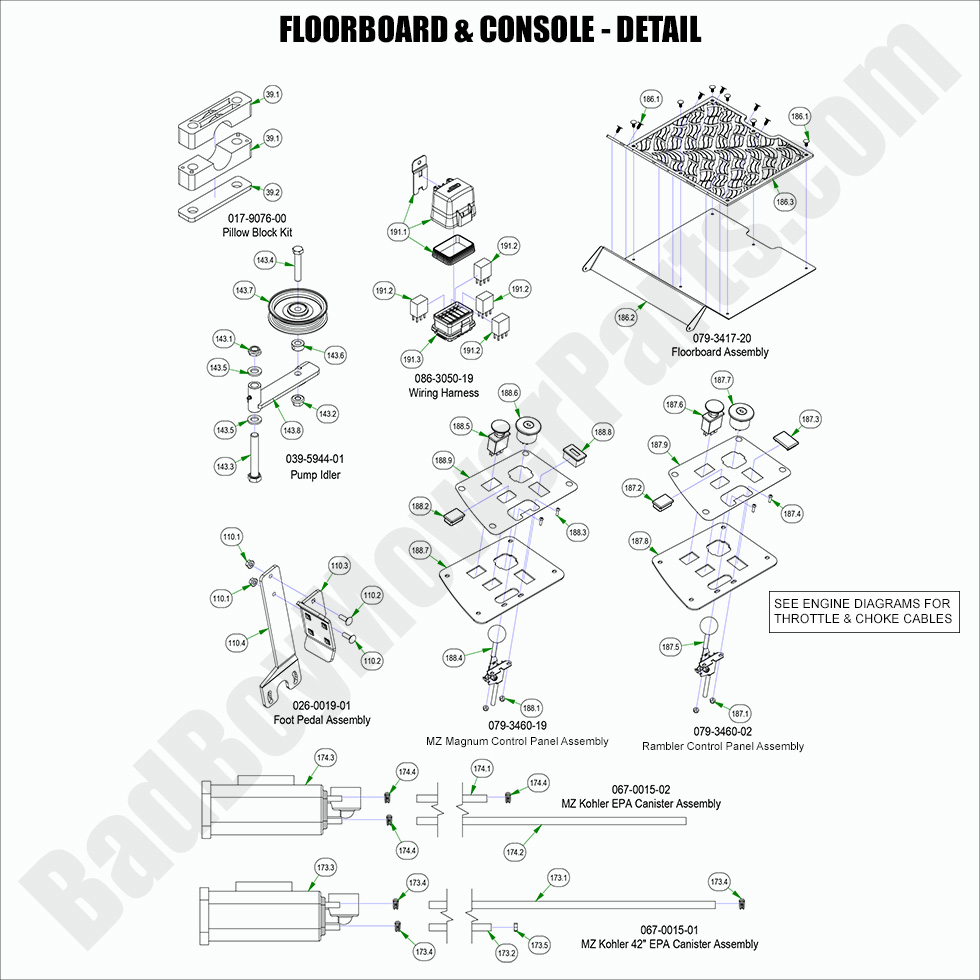

2022 MZ & MZ Magnum - Floorboard & Console - Detail

2022 MZ & MZ Magnum - Floorboard & Console - Detail

The 2022 MZ & MZ Magnum Floorboard & Console - Detail is an important component of your mower's structure, ensuring comfort and control while operating. At BadBoyMowerParts.com, we offer the best selection of Bad Boy Mower Parts for this assembly, including footrests, footboards, and control panels. Our clear Bad Boy Mower Part diagrams make it easy to find the exact components for the floorboard and console system, simplifying any repairs or replacements. Whether you need to replace damaged Bad Boy Lawn Mower Parts or upgrade your current setup, we have everything you need. By shopping for Bad Boy Parts Online, you can find all the necessary parts with just a few clicks. Don't forget that we offer Free Shipping On Orders Over $100, so your repairs are not only easy but affordable. Trust BadBoyMowerParts.com for all your floorboard and console needs.

Bad Boy Mower Parts Lookup

2022 MZ & MZ Magnum - Floorboard & Console - Detail
  Position Number SKU Product Title Price
39.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
39.1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
39.2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
110.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
110.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
110.2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
110.3 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
110.4 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
143.0 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
143.1 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
143.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
143.3 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
143.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
143.5 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
143.6 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
143.7 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
143.8 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
173.0 067-0015-01 067-0015-01 - MZ Briggs EPA Cannister Assy (obsolete)
use part #067-0015-00
$46.78
173.1 051-2023-01 051-2023-01 - 3/16 Vinyl 53" EPA Line
$9.67
173.2 051-2027-01 051-2027-01 - 3/16 Clear 44" EPA Line
$7.25
173.3 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
173.4 072-0002-00 072-0002-00 - 5.5 mm Vinyl Hose Clamp
$2.99
173.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
174.0 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
174.1 051-2023-02 051-2023-02 - 44" x 3/16" Black Hose
$12.48
186.1 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
186.2 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95
186.3 081-4001-00 081-4001-00 - 2021-2024 Floor Mat W/ Reaper Tread
$53.49
187.0 079-3460-02 079-3460-02 - 2017-2022 MZ Control Panel Assy.
$105.93
187.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
187.2 018-1040-00 018-1040-00 - Light Plug
$2.99
187.3 018-1041-00 018-1041-00 - Light Plug
$5.49
187.4 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
187.6 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
187.7 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
187.8 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
187.9 091-0338-22 091-0338-22 - Control Panel Decal (See Models Used On For Details)
$17.11
188.0 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
188.8 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
191.0 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
191.1 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
191.2 086-1202-19 086-1202-19 - Relay Terminal
$24.97
