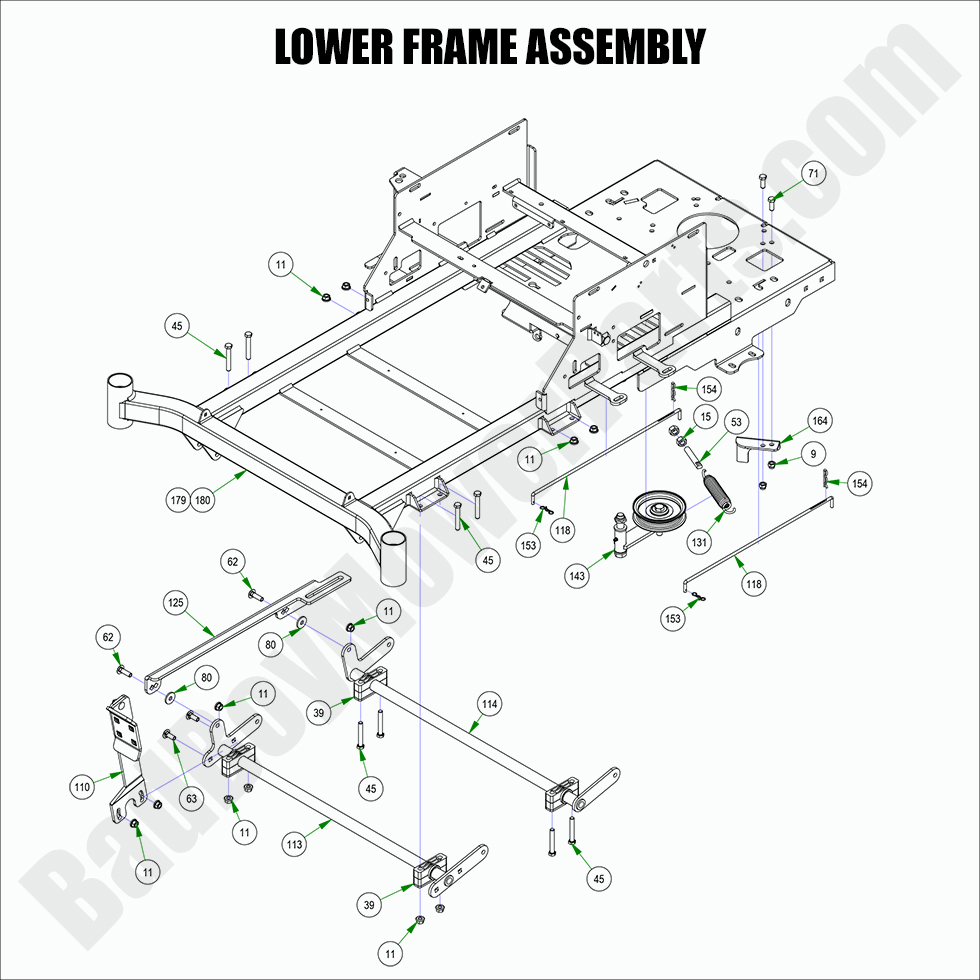

2022 MZ & MZ Magnum - Lower Frame Assembly

2022 MZ & MZ Magnum - Lower Frame Assembly

The 2022 MZ & MZ Magnum Lower Frame Assembly is essential to the structural integrity of your mower. If you need to replace or repair the lower frame, BadBoyMowerParts.com offers a complete selection of Bad Boy Mower Parts that fit your needs. Our easy-to-follow Bad Boy Mower Part diagrams will help you pinpoint the correct components for the lower frame assembly, ensuring your mower remains in excellent working condition. We carry all the necessary Bad Boy Lawn Mower Parts such as bolts, frames, and mounts to restore your mower to its original condition. Shopping for Bad Boy Parts Online ensures that you can find everything quickly and efficiently. Plus, we offer Free Shipping On Orders Over $100, allowing you to complete your repairs without additional shipping costs. Visit BadBoyMowerParts.com for reliable, high-quality lower frame assembly parts.

Bad Boy Mower Parts Lookup

2022 MZ & MZ Magnum - Lower Frame Assembly
  Position Number SKU Product Title Price
9 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
15 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
39 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
45 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
53 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
62 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
63 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
71 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
80 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
110 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
113 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
114 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
118 028-0070-00 028-0070-00 - Neutral Rod
$12.48
125 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
131 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
143 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
153 044-2004-00 044-2004-00 - Bow Pin
$2.99
154 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
164 057-5900-00 057-5900-00 - Clutch Stop 2017-2024 MZ, 2020-2024 ZT Avenger
$31.17
