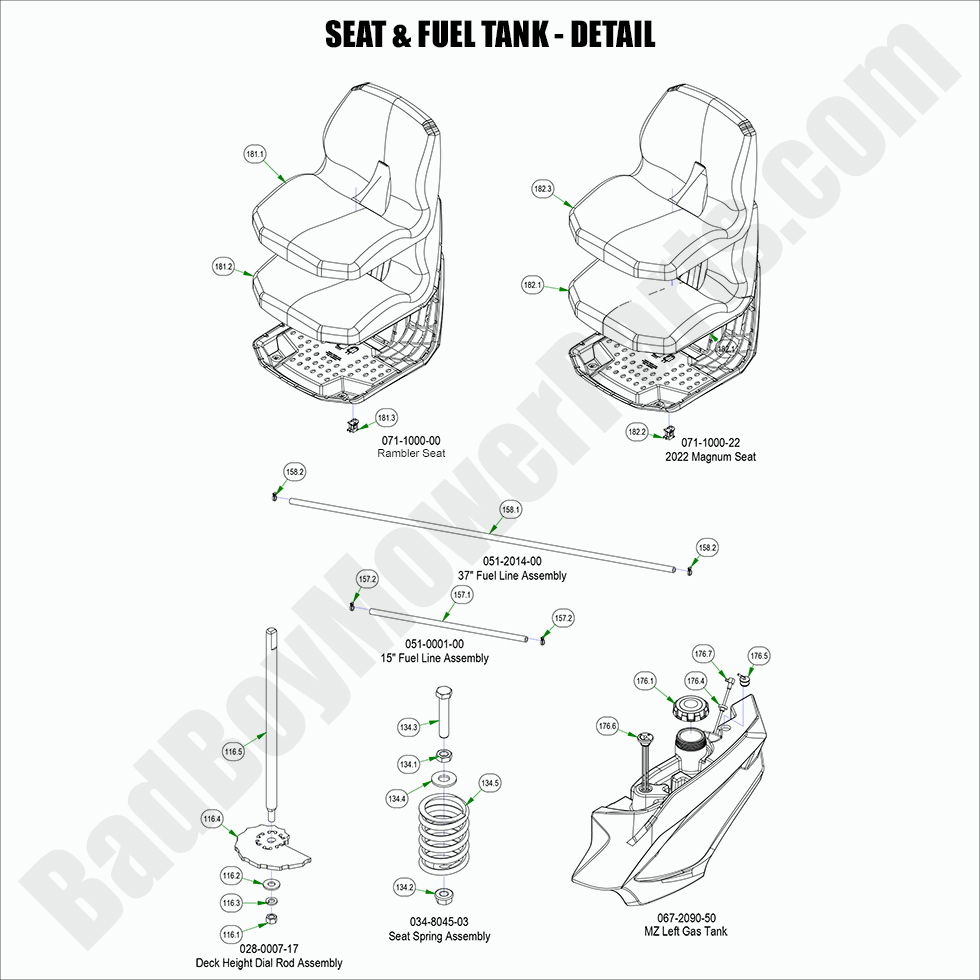

2022 MZ & MZ Magnum - Seat & Fuel Tank - Detail

2022 MZ & MZ Magnum - Seat & Fuel Tank - Detail

The 2022 MZ & MZ Magnum Seat & Fuel Tank - Detail is designed for comfort and functionality. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts to help you replace or upgrade the seat and fuel tank on your mower. Whether you're replacing a worn seat cushion or installing a new fuel tank, our Bad Boy Mower Part diagrams provide a clear guide to the components you need. We carry various Bad Boy Lawn Mower Parts designed to fit the 2022 MZ & MZ Magnum, ensuring the highest quality and compatibility. Shopping Bad Boy Parts Online means you can conveniently browse and find the parts you need, with fast and easy checkout. Additionally, with Free Shipping On Orders Over $100, you can save money while keeping your mower in great condition. Choose BadBoyMowerParts.com for all your seat and fuel tank parts.

Bad Boy Mower Parts Lookup

2022 MZ & MZ Magnum - Seat & Fuel Tank - Detail
  Position Number SKU Product Title Price
116.0 028-0007-17 028-0007-17 - 2018-2022 MZ Magnum Deck Height Rod Assy.
$28.88
116.1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
116.2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
116.3 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
116.4 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
116.5 028-0007-00 028-0007-00 - 2017-2024 MZ Deck Height Dial Rod
$31.17
134.0 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
134.1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
134.2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
134.3 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
134.5 034-8045-00 034-8045-00 - Seat Spring
$20.49
157.0 051-0001-00 051-0001-00 - Fuel Line-15" (See Models Used On For Details)
$40.53
157.1 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
157.2 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
158.0 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
158.1 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
176.0 067-2090-50 067-2090-50 - Left Side Fuel Tank 2017-2024 MZ & MZ Magnum
$248.99
176.1 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
176.4 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
176.5 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
176.6 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
176.7 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
181.0 071-1000-00 071-1000-00 - 2023 MZ Rambler, 2018-2021 MZ Magnum Seat For 48" & 54" Units w/ Kohler Engines
$429.99
181.1 071-1001-00 071-1001-00 - Seat Cover for 071-1000-00
$119.41
182.0 071-1000-22 071-1000-22 - 2022 - 2024 Magnum Seat
$429.99
