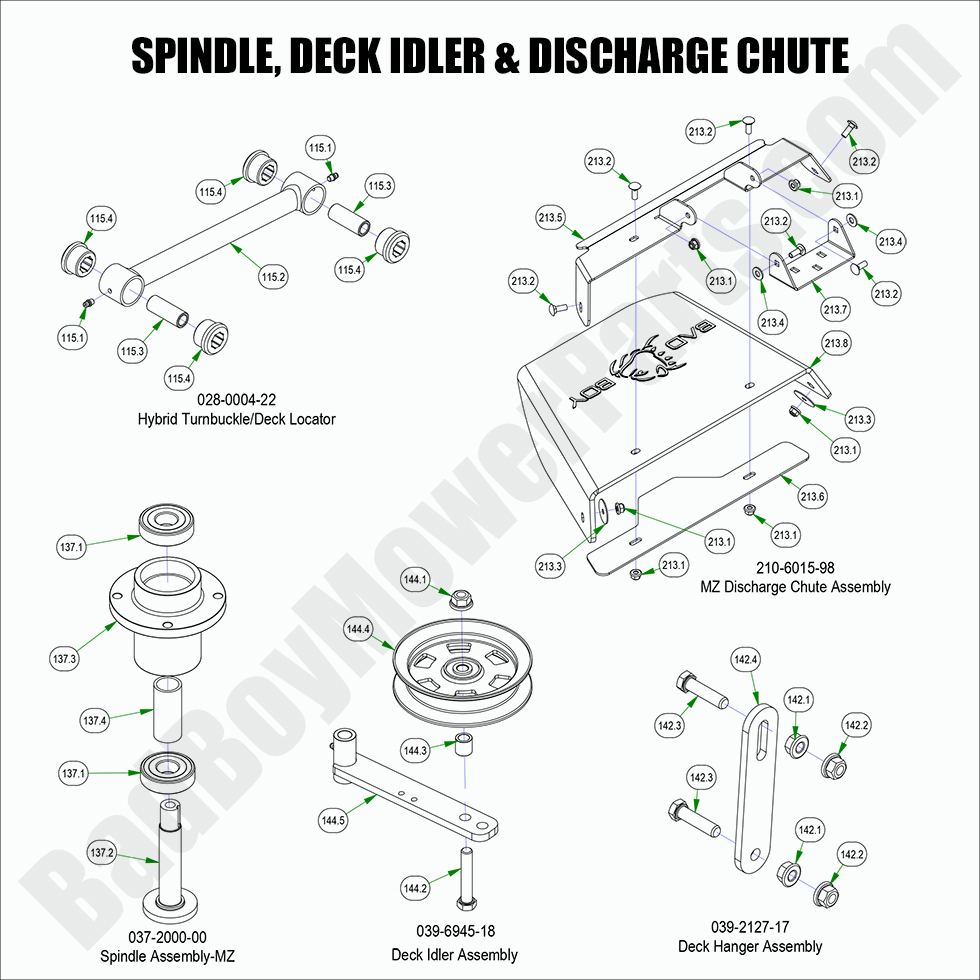

2022 MZ & MZ Magnum - Spindle, Idler & Discharge Chute

2022 MZ & MZ Magnum - Spindle, Idler & Discharge Chute

The 2022 MZ & MZ Magnum Spindle, Idler & Discharge Chute are vital parts of your mower’s cutting and discharge system. BadBoyMowerParts.com offers a full selection of Bad Boy Mower Parts that ensure these components function smoothly. If you're experiencing issues with your mower’s cut quality or grass discharge, it may be time to replace the spindles, idlers, or discharge chute. Our Bad Boy Mower Part diagrams help you identify the correct parts for replacement or maintenance. We stock high-quality Bad Boy Lawn Mower Parts that are designed for the 2022 MZ & MZ Magnum, ensuring your mower remains in peak condition. Shopping Bad Boy Parts Online makes it easy to find the exact parts you need and get them delivered straight to your door. Plus, with Free Shipping On Orders Over $100, you can keep your mower running smoothly while saving money. Visit BadBoyMowerParts.com today!

Bad Boy Mower Parts Lookup

2022 MZ & MZ Magnum - Spindle, Idler & Discharge Chute
  Position Number SKU Product Title Price
115.0 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
115.1 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
115.3 048-6004-00 048-6004-00 - Maverick/Compact Outlaw Topllink Bushing Sleeve (See Models Used On For Details)
$11.29
115.4 048-6005-00 048-6005-00 - Toplink Bushing (See Models Used On For Details)
$32.09
137.0 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
137.1 037-6024-00 037-6024-00 - All MZ Models & 2016-2022 Stand-On (36" Deck) Spindle Bearing
$34.35
137.2 037-6025-00 037-6025-00 - Spindle Shaft - All MZ/MZ Magnum & 2016-2022 Stand-On (36" Deck)
$60.98
137.3 037-6027-00 037-6027-00 - Spindle Housing For 037-2000-00 Spindle Assembly (See Models Used On For Details)
$99.32
137.4 037-6028-00 037-6028-00 - Spacer for 037-2000-00 Spindle
$14.19
142.0 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
142.1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
142.2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
142.3 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
142.4 039-2127-00 039-2127-00 - Deck Hanger (See Models Used On For Details) (obsolete)
use part #039-2127-17
$15.60
144.0 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
144.1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
144.2 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
144.3 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
144.4 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
144.5 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
213.0 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
213.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
213.2 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
213.3 019-0002-00 019-0002-00 - 5/16 Fender Washer
$2.99
213.4 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
213.5 039-4891-00 039-4891-00 - Discharge Chute Bracket 48 MZ (Upper)
$35.43
213.6 039-4892-00 039-4892-00 - 2017-2022 MZ Discharge Chute Bracket (Lower) (obsolete)
use part #039-4890-00
$35.43
213.7 206-6020-00 206-6020-00 - Chute Hanger
$28.39
213.8 210-6014-00 210-6014-00 - Discharge Chute Rubber Only (See Models Used On For Details)
$53.49
