2022 MZ & MZ Magnum - Transaxle & Rear Wheels

2022 MZ & MZ Magnum - Transaxle & Rear Wheels

The 2022 MZ & MZ Magnum Transaxle & Rear Wheels are essential for driving power and smooth operation on your mower. At BadBoyMowerParts.com, we offer a wide range of Bad Boy Mower Parts to maintain or replace the transaxle and rear wheels of your mower. Whether you're experiencing a mechanical failure or need a simple upgrade, our Bad Boy Mower Part diagrams make it easy to locate and order the exact parts you need. From replacement rear wheels to transaxle assemblies, we stock Bad Boy Lawn Mower Parts that fit the 2022 MZ & MZ Magnum perfectly. Our streamlined online store allows you to shop for Bad Boy Parts Online quickly and efficiently. With Free Shipping On Orders Over $100, your parts will arrive in no time at an affordable price. Visit BadBoyMowerParts.com for all your mower transaxle and rear wheel needs.

Bad Boy Mower Parts Lookup

2022 MZ & MZ Magnum - Transaxle & Rear Wheels
  Position Number SKU Product Title Price
7 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
19 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
51 018-1076-00 018-1076-00 - 1/4-20 x 2-1/2 Gr2 Hex C/S Zinc
$2.99
58 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
59 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
67 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
68 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
73 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
79 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
89 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
92 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99

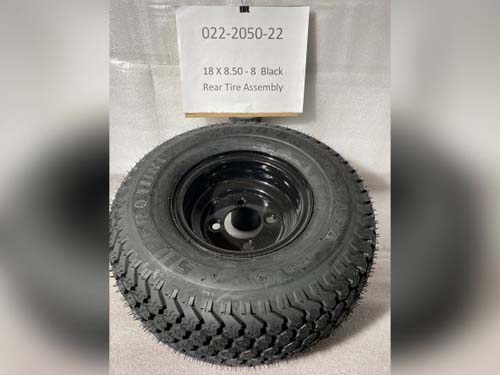

96.0 022-2050-22 022-2050-22 - 18x8.50-8 w/8" Tire & Wheel (Black)
$229.99

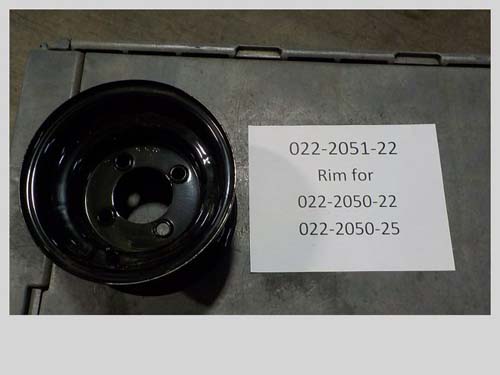

96.1 022-2051-22 022-2051-22 - Rim for 022-2050-22
$106.99
96.2 022-2052-22 022-2052-22 - Tire for 022-2050-22 18x8.5-8
$189.99
98.0 022-8050-22 022-8050-22 - 18x9.50-8 Tire and Wheel - Black Wheel - Turf Saver Style Tire (See Models Used On For Details)
$163.99
98.1 022-8025-00 022-8025-00 - 18x9.50-8 Rear Tire Only (One Tire Only)
$197.99
98.2 022-8026-22 022-8026-22 - Black Rear Wheel 48in MZ (See Models Used On For Details)
$58.84
105 025-0016-00 025-0016-00 - Transaxle Spacer-MZ (See Models Used On For Details)
$14.04
106 025-0036-00 025-0036-00 - Drive Arm Transaxle Spacer
$5.49
107 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
132 034-3050-00 034-3050-00 - Spring-Brake Lock Bracket MZ
$2.99
141 039-0035-01 039-0035-01 - 2017-2023 MZ/Magnum Brake Plate Assy.
$18.72
148 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
155 050-4070-00 050-4070-00 - 2017-2025 - Right Transaxle - MZ Models
$599.99
156 050-4071-00 050-4071-00 - 2017-2025 - Left Transaxle- MZ Models
$599.99
172 064-8057-17 064-8057-17 - 2017-2025 MZ Brake Cable- 18.37" CABLE ONLY
$25.54
