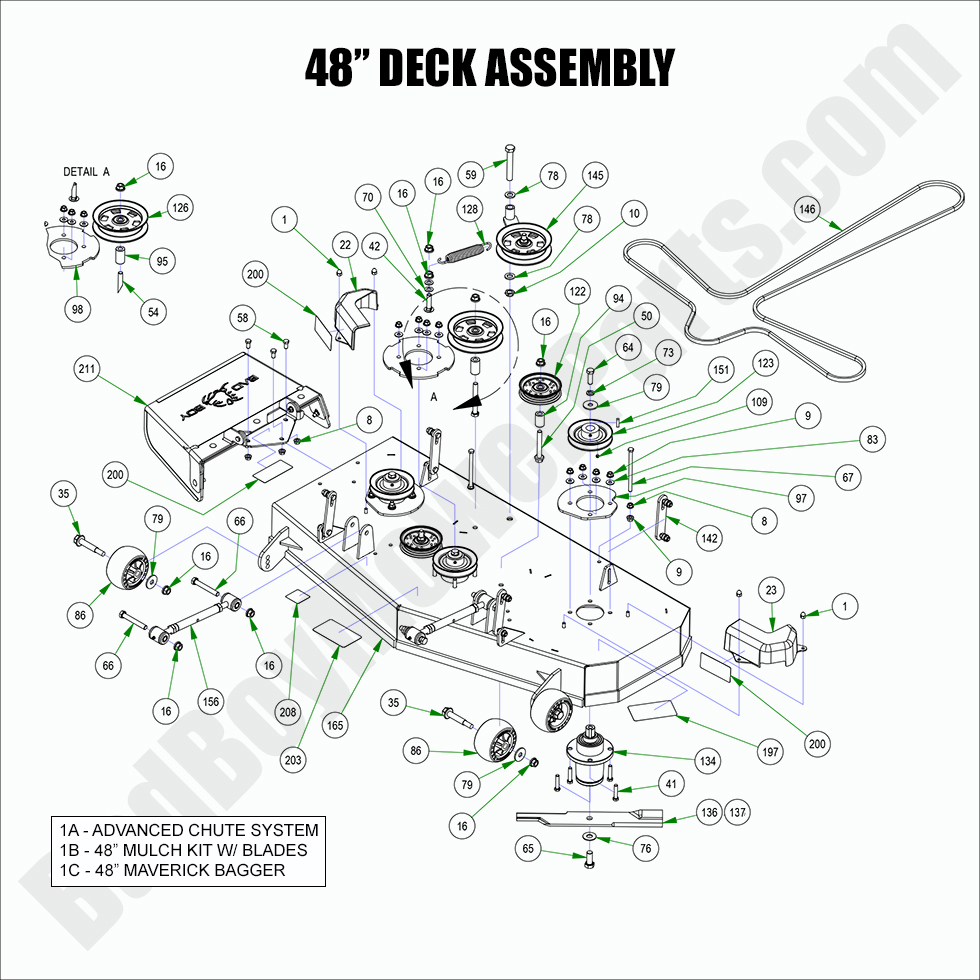

2022 Maverick - 48" Deck Assembly

2022 Maverick - 48" Deck Assembly

The 2022 Maverick 48" Deck Assembly is built for precision cutting and durability, making it a key component of your mower’s performance. When it’s time for maintenance or repairs, BadBoyMowerParts.com provides clear Bad Boy Mower Part diagrams to help you quickly locate necessary components. Whether you need replacement spindles, belts, or deck wheels, we offer a full selection of Bad Boy Mower Parts to keep your deck in top shape. High-quality Bad Boy Lawn Mower Parts ensure that your cutting deck operates smoothly, delivering a clean, even cut every time. Shopping for Bad Boy Parts Online is convenient with our well-stocked inventory, allowing you to get exactly what you need with just a few clicks. Plus, take advantage of Free Shipping On Orders Over $100, so you can maintain your 2022 Maverick 48" Deck Assembly without extra costs. Keep your mower running efficiently with our trusted parts!

Bad Boy Mower Parts Lookup

2022 Maverick - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1C 088-1811-21 088-1811-21 - 48" Maverick Bagger (2021 - 2023)
$2499.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
8 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
10 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
22 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
23 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
35 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
41 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
42 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
50 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
54 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
58 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
59 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
64 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
65 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
66 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
67 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
70 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
73 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
76 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
78 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
79 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
83 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
86.1 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
86 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
94 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
95 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
97 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
98 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
109 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
122 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
123 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
126 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
128 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
134 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
136 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
137 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
142 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
145 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
146 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
151 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
156 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
165 060-4817-00 060-4817-00 - 48" Deck Shell (See Models Used On For Details)
$1059.99
197 091-0903-18 091-0903-18 - 48" Deck Decal (See Models Used On For Details)
$8.01
200 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
203 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
208 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
211 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
