2022 Maverick - 54" Deck Assembly

2022 Maverick - 54" Deck Assembly

A properly functioning 2022 Maverick 54" Deck Assembly is essential for achieving a precise and consistent cut. Whether you need to replace worn blades, spindles, or pulleys, BadBoyMowerParts.com has the parts you need. Our easy-to-use Bad Boy Mower Part diagrams simplify identifying the correct Bad Boy Mower Parts, ensuring a perfect fit. Maintaining your mower with high-quality Bad Boy Lawn Mower Parts improves performance and extends the life of your cutting deck. When you shop for Bad Boy Parts Online, you’ll find everything required to keep your mower operating at its best. We make repairs hassle-free by offering Free Shipping On Orders Over $100, so you can get premium parts at the best value. Whether you’re performing routine maintenance or a complete overhaul, trust us to provide everything needed to keep your 2022 Maverick 54" Deck Assembly in peak condition!

Bad Boy Mower Parts Lookup

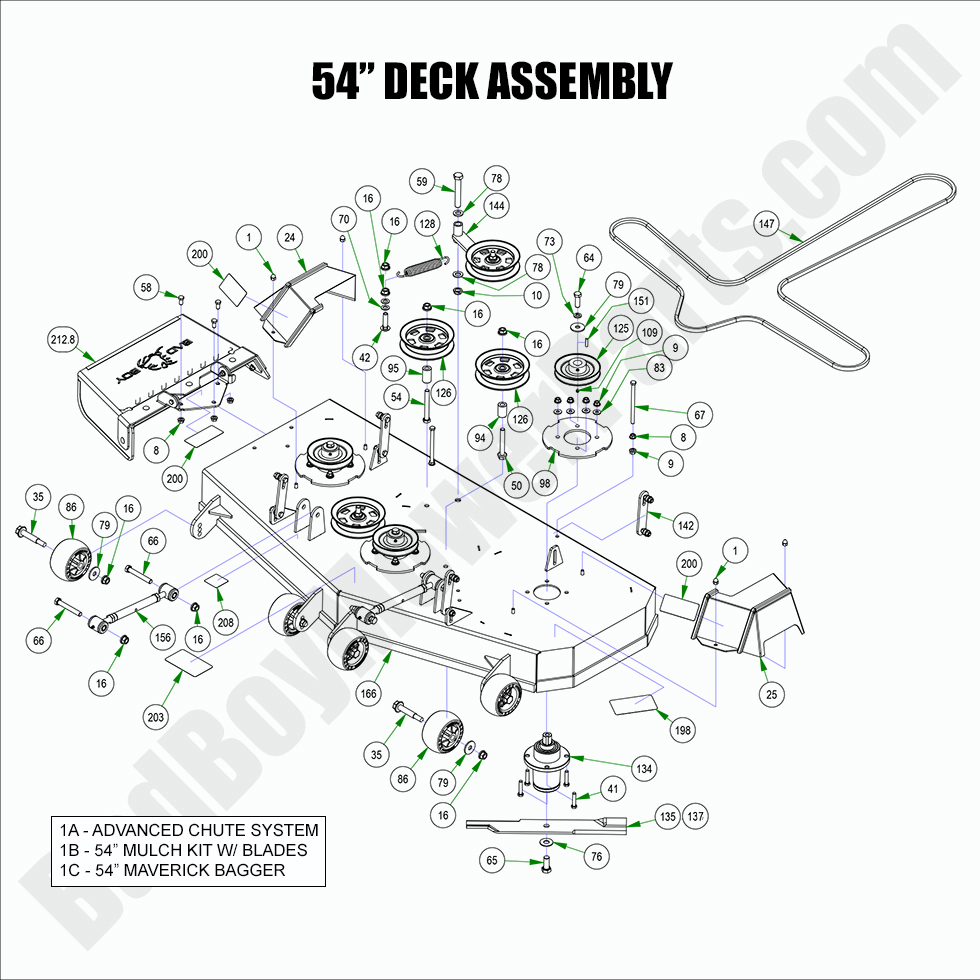

2022 Maverick - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
8 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
10 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
24 014-5020-00 014-5020-00 - 2021-2022 Maverick 54"/60" RH Pulley Cover
$28.39
25 014-5021-00 014-5021-00 - 2021-2022 Maverick 54"/60" LH Pulley Cover
$28.39
35 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
41 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
42 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
50 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
54 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
58 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
59 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
64 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
65 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
66 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
67 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
70 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
73 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
76 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
78 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
79 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
83 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
86.1 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
86 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
94 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
95 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
98 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
109 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
125 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
126 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
128 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
134 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
135 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
137 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
142 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
144 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
147 041-1560-00 041-1560-00 - Deck Belt (See Models Used On For Details)
$88.80
151 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
156 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
166 060-5417-00 060-5417-00 - 2017-2022 54" ZT & 2018-2022 54" Maverick Deck Shell
$1275.76
198 091-0904-18 091-0904-18 - 54" Deck Decal (See Models Used On For Details)
$6.41
200 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
203 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
208 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
212.8 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
