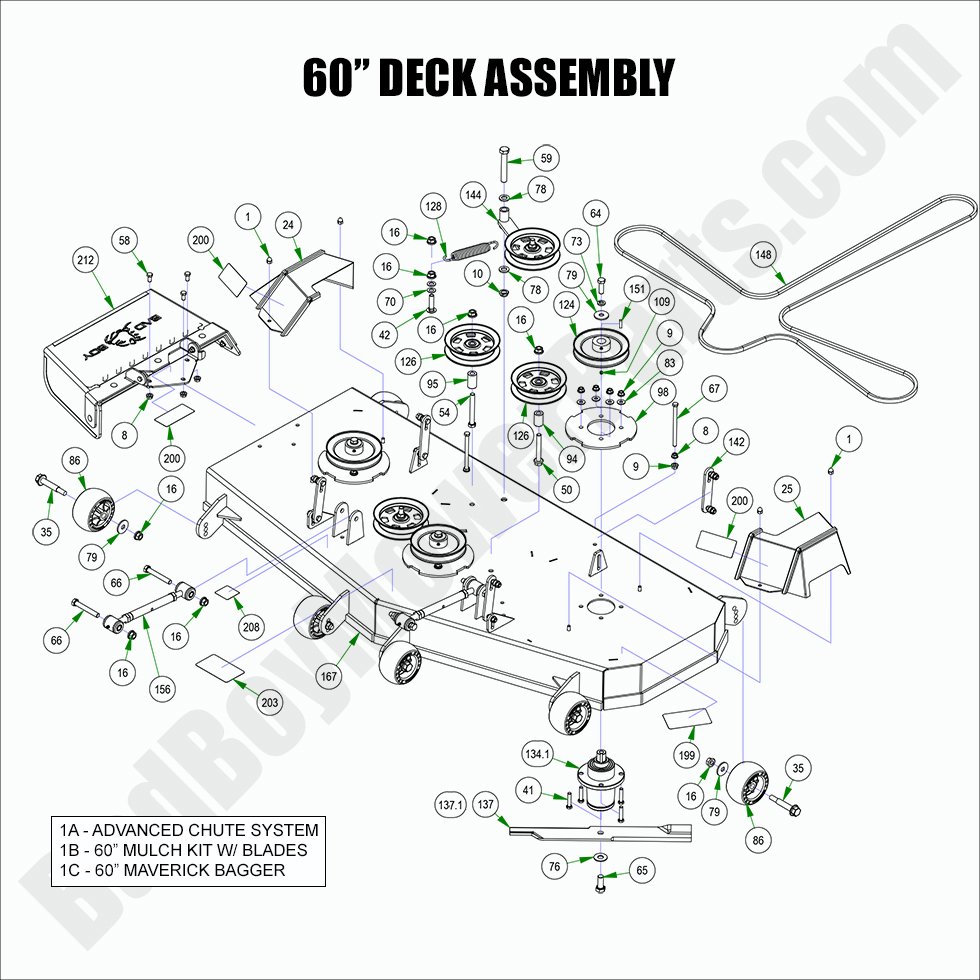

2022 Maverick - 60" Deck Assembly

2022 Maverick - 60" Deck Assembly

The 2022 Maverick 60" Deck Assembly is designed for large-area mowing with efficiency and precision. Whether you're replacing a spindle, belt, or idler pulley, BadBoyMowerParts.com has a full inventory of high-quality parts. Our detailed Bad Boy Mower Part diagrams make it easy to find exactly what you need, eliminating the guesswork when ordering replacement Bad Boy Mower Parts. Keeping your deck in top condition with premium Bad Boy Lawn Mower Parts ensures long-lasting durability and an even, professional-grade cut. Shopping for Bad Boy Parts Online is simple with our user-friendly site, allowing you to browse by part category and find the right components fast. Plus, with Free Shipping On Orders Over $100, you can save money while keeping your mower in top shape. Ensure your 2022 Maverick 60" Deck Assembly is always ready for the toughest jobs with our reliable parts!

Bad Boy Mower Parts Lookup

2022 Maverick - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0260-50 210-0260-50 - 2017-2025 60" Mulch Kit w/Blades (Not for MZ or Avenger)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
8 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
10 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
24 014-5020-00 014-5020-00 - 2021-2022 Maverick 54"/60" RH Pulley Cover
$28.39
25 014-5021-00 014-5021-00 - 2021-2022 Maverick 54"/60" LH Pulley Cover
$28.39
35 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
41 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
42 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
50 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
54 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
58 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
59 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
64 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
65 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
66 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
67 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
70 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
73 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
76 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
78 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
79 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
83 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
86.1 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
86 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
94 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
95 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
109 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
124 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
126 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
128 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
134.1 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
137.1 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
137 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
142 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
144 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
148 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
151 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
156 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
167 060-6017-00 060-6017-00 - 60" Deck Shell 2017-2022 ZT & 2018-2022 Maverick
$1399.99
199 091-0905-18 091-0905-18 - 2018-2023 60" Deck Decal
$6.41
200 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
203 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
208 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
212 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
