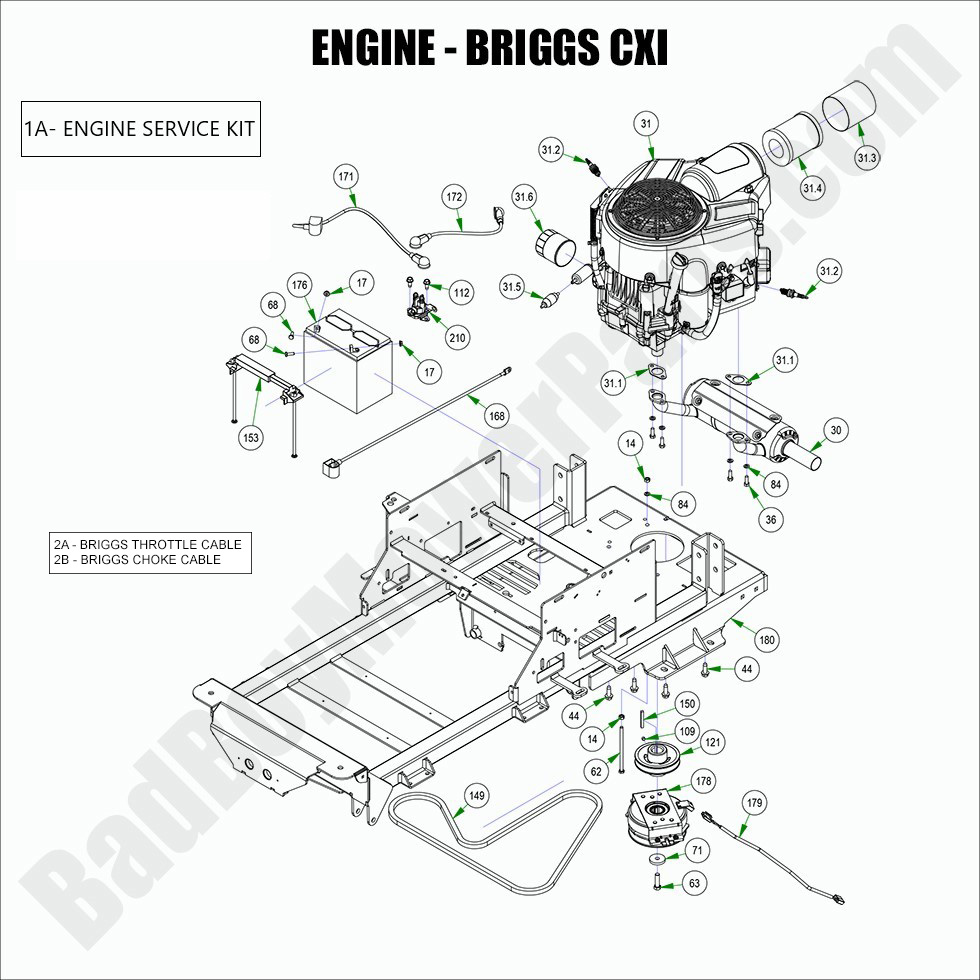

2022 Maverick - Engine - Briggs CXI

2022 Maverick - Engine - Briggs CXI

The 2022 Maverick Engine - Briggs CXI is a powerful and reliable engine designed for superior performance. Keeping it in peak condition requires high-quality Bad Boy Mower Parts, such as filters, spark plugs, and belts. At BadBoyMowerParts.com, we provide detailed Bad Boy Mower Part diagrams to help you quickly find the right components. Using genuine Bad Boy Lawn Mower Parts ensures optimal efficiency and extends the engine’s lifespan. Ordering Bad Boy Parts Online makes it easy to get the exact parts you need for maintenance and repairs. Plus, take advantage of Free Shipping On Orders Over $100, so you can keep your 2022 Maverick Engine - Briggs CXI running smoothly without extra costs. Whether you're performing routine maintenance or a major repair, trust our premium selection of parts to keep your engine in top shape!

Bad Boy Mower Parts Lookup

2022 Maverick - Engine - Briggs CXI
  Position Number SKU Product Title Price
1A 063-2000-04 063-2000-04 - Briggs 30hp & CXI Engine Service Kit
$92.93
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
14 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
17 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
30 015-0057-00 015-0057-00 - 2017-2024 Exhaust 810 Vanguard
$169.99
31.1 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
31.2 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
31.3 063-1000-00 063-1000-00 - Pre-Cleaner for 063-3003-00
$12.83
31.4 063-3003-00 063-3003-00 - 30hp & CXI Briggs Air Filter
$44.93
31.5 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
31.6 063-8018-00 063-8018-00 - Oil Filter
$21.39
31 015-0511-00 015-0511-00 - Vangaurd 27hp CXI with Out Oil Filter
$3099.99
36 018-0017-00 018-0017-00 - Vanguard Exhaust Torx Bolt
$5.82
44 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
62 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
63 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
68 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
71 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
84 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
109 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
112 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
121 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
149 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
150 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
153 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
168 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
171 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
172 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
178 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
179 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
180 070-5492-00 070-5492-00 - 2022 Maverick Frame--Painted
$799.99
210 108-0001-00 108-0001-00 - Solenoid
$29.41
