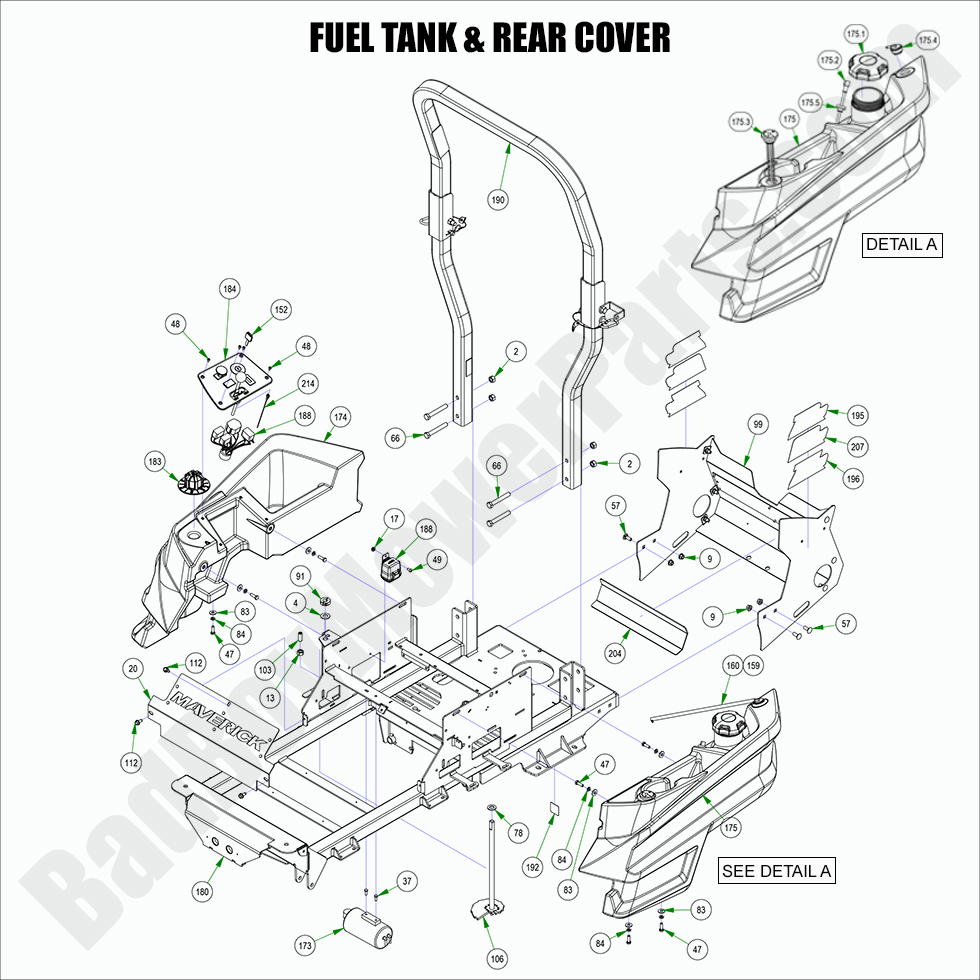

2022 Maverick - Fuel Tank & Rear Cover

2022 Maverick - Fuel Tank & Rear Cover

The 2022 Maverick Fuel Tank & Rear Cover are essential for protecting your fuel system and ensuring smooth operation. Over time, cracks or leaks in the fuel tank can lead to inefficiency and safety concerns, making it crucial to replace them with quality Bad Boy Mower Parts. At BadBoyMowerParts.com, we offer detailed Bad Boy Mower Part diagrams to help you locate the correct replacement parts with ease. Using genuine Bad Boy Lawn Mower Parts for your fuel system ensures reliability and long-term durability. Shopping for Bad Boy Parts Online makes it easy to find the right components without hassle. Plus, we offer Free Shipping On Orders Over $100, helping you save while keeping your mower in peak condition. Don’t compromise on performance—replace your 2022 Maverick Fuel Tank & Rear Cover with trusted parts from our extensive inventory!

Bad Boy Mower Parts Lookup

2022 Maverick - Fuel Tank & Rear Cover
  Position Number SKU Product Title Price
2 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
4 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
17 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
20 014-1000-00 014-1000-00 - 2021-2025 Maverick Cooler Cover Assembly
$129.99
37 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
47 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
48 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
49 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
57 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
66 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
78 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
83 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
84 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
91 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
99 026-0205-22 026-0205-22 - 2022 Maverick Rear Cover Assembly
$189.99
103 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
106 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
112 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
152 042-9000-00 042-9000-00 - Ignition Key
$4.06
159 051-0001-00 051-0001-00 - Fuel Line-15" (See Models Used On For Details)
$40.53
160 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
173 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
174 067-2020-00 067-2020-00 - 2021-2022 Maverick Right Side Tank
$248.99
175.0 067-2021-00 067-2021-00 - 2021-2024 Maverick Left Side Tank
$349.99
175.1 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
175.2 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
175.3 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
175.4 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
175.5 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
180 070-5492-00 070-5492-00 - 2022 Maverick Frame--Painted
$799.99
183 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
184 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
188 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
190 089-0005-00 089-0005-00 - 2x2 Folding ROPS (See Models Used On For Details)
$796.75
195 091-0378-18 091-0378-18 - 2018-2022 Maverick 726cc Back Plate Cluster
$14.97
196 091-0379-18 091-0379-18 - 2018-2022 Maverick 747cc Back Plate Cluster
$14.97
204 091-4050-00 091-4050-00 - Heat Shield (Fiberglass Adhesive)
$14.19
207 091-4075-00 091-4075-00 - Maverick 810cc Back Plate Decal
$10.99
214 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
