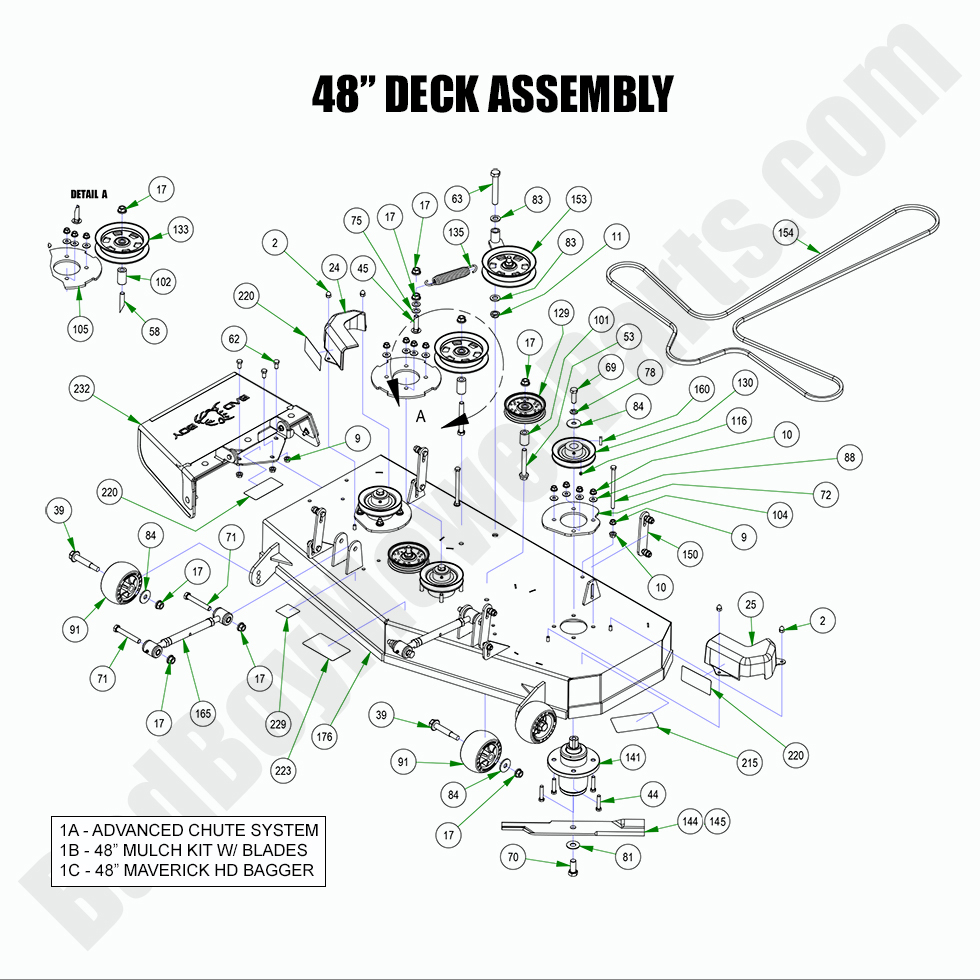

2022 Maverick HD - 48" Deck Assembly

2022 Maverick HD - 48" Deck Assembly

The 2022 Maverick HD 48" Deck Assembly provides excellent cutting power and durability for your mower, making it a critical part of your lawn care equipment. Whether you need to replace a damaged part or upgrade your mower, BadBoyMowerParts.com is your go-to source for Bad Boy Mower Parts. We offer a wide variety of Bad Boy Lawn Mower Parts to keep your 48" deck in peak condition, including spindles, pulleys, and belts. Our easy-to-use website includes detailed Bad Boy Mower Part diagrams, helping you quickly find the parts you need. With Bad Boy Parts Online, you can shop from the comfort of your home and get the right components delivered right to your door. Additionally, take advantage of Free Shipping On Orders Over $100 to save even more while maintaining your 2022 Maverick HD mower. Shop today at BadBoyMowerParts.com for all your deck assembly needs.

Bad Boy Mower Parts Lookup

2022 Maverick HD - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1C 088-1811-21 088-1811-21 - 48" Maverick Bagger (2021 - 2023)
$2499.99
2 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
24 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
25 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
39 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
44 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
45 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
53 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
58 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
62 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
63 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
69 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
70 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
71 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
72 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
75 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
78 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
81 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
83 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
84 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
88 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
91.1 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
91 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
101 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
102 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
104 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
105 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
116 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
129 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
130 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
133 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
135 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
141 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
144 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
145 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
150 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
153 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
154 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
160 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
165 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
176 060-4817-00 060-4817-00 - 48" Deck Shell (See Models Used On For Details)
$1059.99
215 091-0903-18 091-0903-18 - 48" Deck Decal (See Models Used On For Details)
$8.01
220 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
223 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
229 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
232 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
