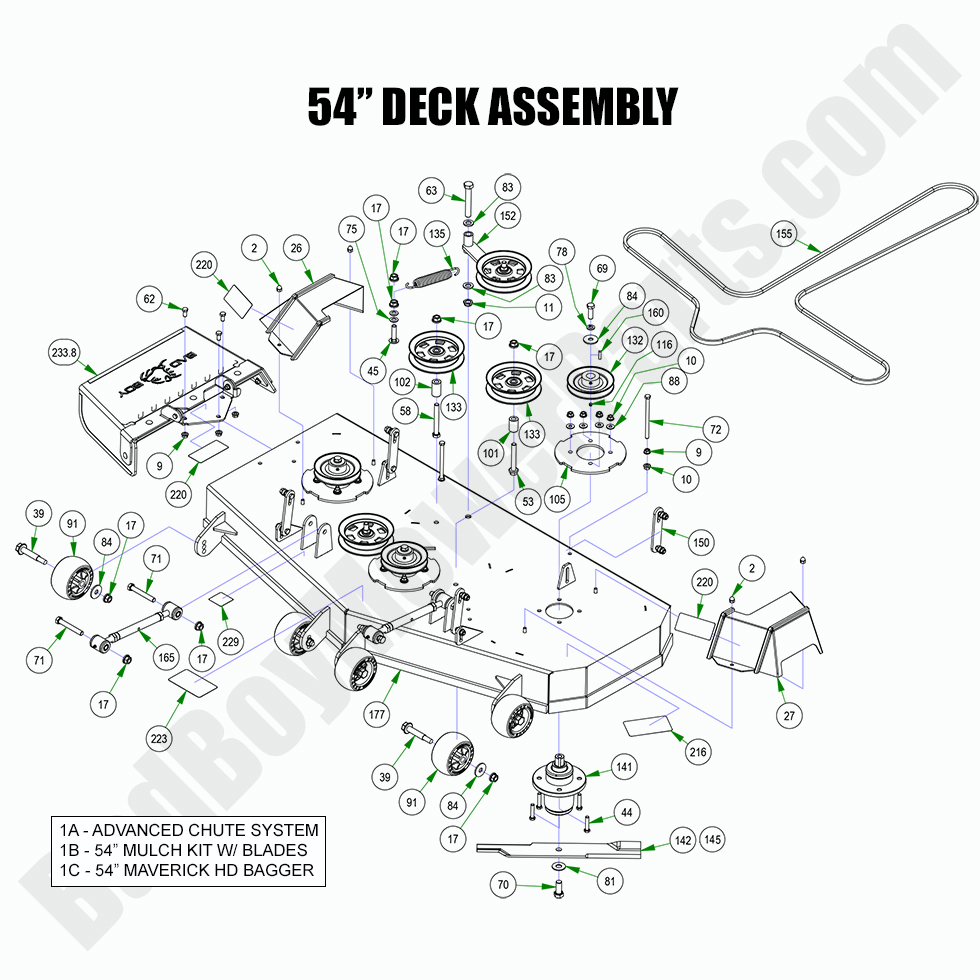

2022 Maverick HD - 54" Deck Assembly

2022 Maverick HD - 54" Deck Assembly

The 2022 Maverick HD 54" Deck Assembly is designed to provide a superior mowing experience, offering both precision and durability. If you need to replace or repair parts of your 54" deck, BadBoyMowerParts.com is the best place to find Bad Boy Mower Parts. We carry a full range of Bad Boy Lawn Mower Parts, including blades, pulleys, and bearings, all tailored to fit the 54" deck of your 2022 Maverick HD. To ensure you're selecting the right components, our Bad Boy Mower Part diagrams offer detailed views of the deck assembly, helping you quickly pinpoint the parts you need. With Bad Boy Parts Online, you can conveniently browse and order from the comfort of your home. Don’t forget to take advantage of our Free Shipping On Orders Over $100, so you can keep your mower running at its best without breaking the bank.

Bad Boy Mower Parts Lookup

2022 Maverick HD - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
2 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
26 014-5020-00 014-5020-00 - 2021-2022 Maverick 54"/60" RH Pulley Cover
$28.39
27 014-5021-00 014-5021-00 - 2021-2022 Maverick 54"/60" LH Pulley Cover
$28.39
39 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
44 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
45 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
53 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
58 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
62 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
63 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
69 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
70 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
71 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
72 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
75 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
78 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
81 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
83 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
84 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
88 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
91.1 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
91 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
101 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
102 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
105 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
116 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
132 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
133 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
135 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
141 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
142 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
145 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
150 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
152 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
155 041-1560-00 041-1560-00 - Deck Belt (See Models Used On For Details)
$88.80
160 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
165 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
177 060-5417-00 060-5417-00 - 2017-2022 54" ZT & 2018-2022 54" Maverick Deck Shell
$1275.76
216 091-0904-18 091-0904-18 - 54" Deck Decal (See Models Used On For Details)
$6.41
220 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
223 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
229 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
233.8 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
