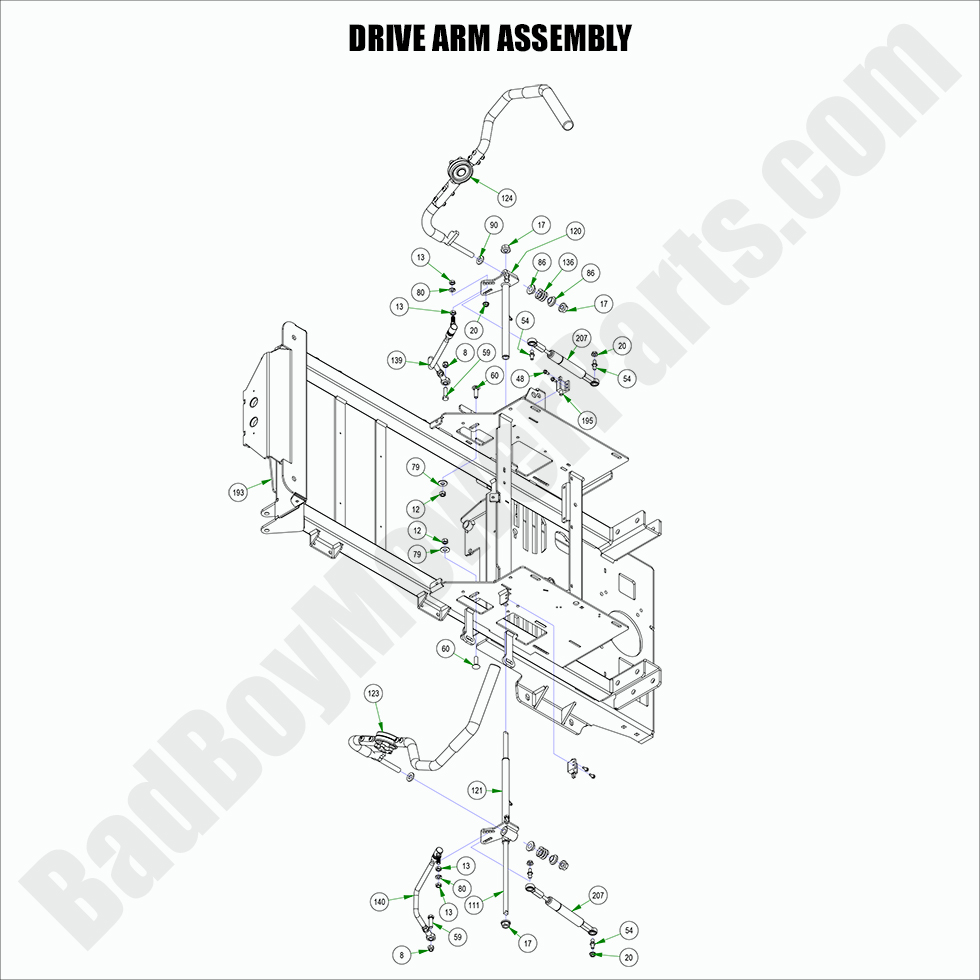

2022 Maverick HD - Drive Arm Assembly

2022 Maverick HD - Drive Arm Assembly

The 2022 Maverick HD Drive Arm Assembly is an integral part of the mower’s drive system, ensuring smooth movement and optimal performance. When it comes to replacing or upgrading this crucial part, BadBoyMowerParts.com offers a comprehensive selection of Bad Boy Mower Parts tailored for the 2022 Maverick HD. Our stock includes Bad Boy Lawn Mower Parts specifically designed to keep your mower operating at its best. To help you identify the parts you need, we provide detailed Bad Boy Mower Part diagrams that clearly outline the drive arm assembly components. With Bad Boy Parts Online, you can easily browse our inventory and place an order with just a few clicks. Additionally, take advantage of Free Shipping On Orders Over $100, which helps you save on the parts you need. Visit BadBoyMowerParts.com today for all your drive arm assembly needs.

Bad Boy Mower Parts Lookup

2022 Maverick HD - Drive Arm Assembly
  Position Number SKU Product Title Price
8 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
12 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
13 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
48 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
54 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
59 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
60 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
79 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
80 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
86 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
90 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
111 028-0049-00 028-0049-00 - 2021 Maverick Steering Actuator Rod
$21.39
120 031-0053-21 031-0053-21 - 2021-2022 Maverick Drive Arm Actuator RH Assembly
$42.79
121 031-0054-21 031-0054-21 - 2021-2022 Maverick Drive Arm Actuator LH Assembly
$42.79
123 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
124 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
136 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
139 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
140 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
193 070-5492-00 070-5492-00 - 2022 Maverick Frame--Painted
$799.99
195 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
207 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
