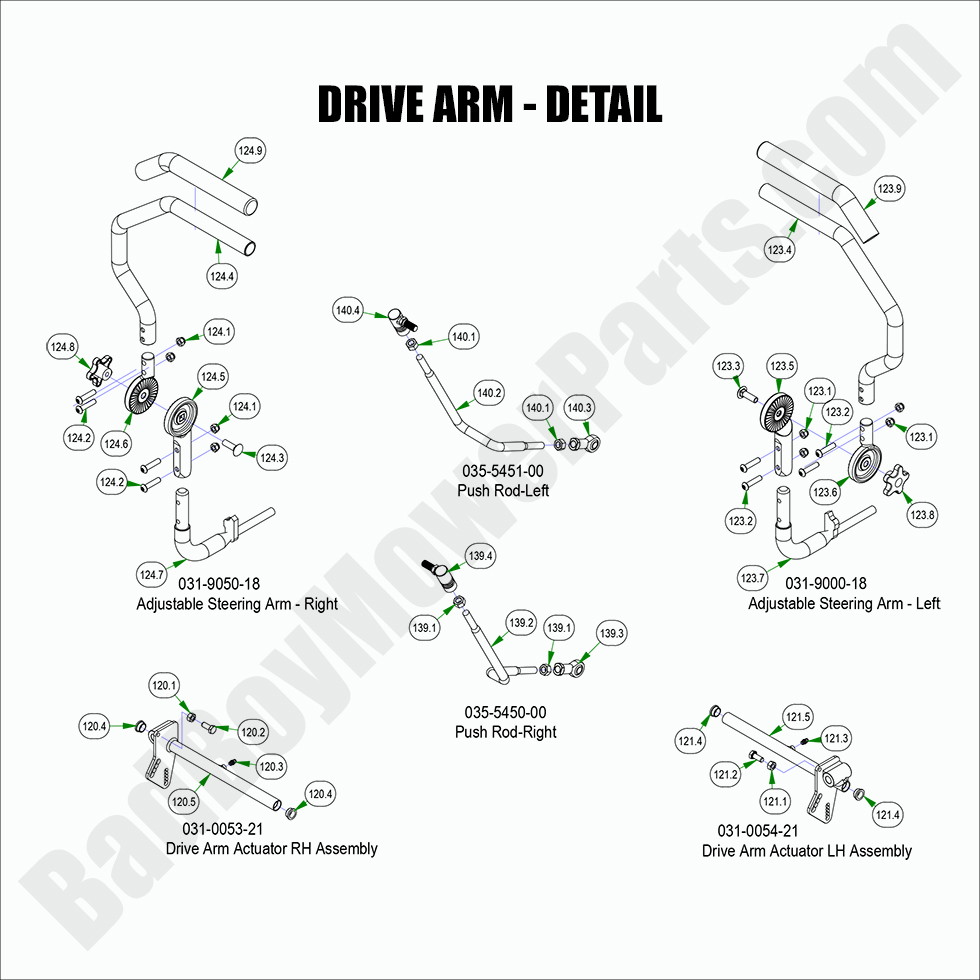

2022 Maverick HD - Drive Arm - Detail

2022 Maverick HD - Drive Arm - Detail

The 2022 Maverick HD Drive Arm - Detail is a crucial part of your mower’s drive system, allowing for smooth and efficient movement during operation. If you need to replace or repair this essential component, BadBoyMowerParts.com is your trusted source for Bad Boy Mower Parts. Our extensive selection includes Bad Boy Lawn Mower Parts, ensuring you can find the perfect fit for your 2022 Maverick HD. We provide Bad Boy Mower Part diagrams that offer clear and detailed views, making it easier for you to identify the right drive arm for your mower. Shopping for Bad Boy Parts Online at BadBoyMowerParts.com is simple, and you can order with confidence, knowing you're getting high-quality components. Plus, enjoy Free Shipping On Orders Over $100, making it even more affordable to maintain your mower. Keep your 2022 Maverick HD running smoothly with the right parts from us.

Bad Boy Mower Parts Lookup

2022 Maverick HD - Drive Arm - Detail
  Position Number SKU Product Title Price
120.0 031-0053-21 031-0053-21 - 2021-2022 Maverick Drive Arm Actuator RH Assembly
$42.79
120.1 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
120.2 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
120.3 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
120.4 031-0032-00 031-0032-00 - Drive Arm Bushing (Plastic Flange)
$7.28
121.0 031-0054-21 031-0054-21 - 2021-2022 Maverick Drive Arm Actuator LH Assembly
$42.79
123.0 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
123.1 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
123.2 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
123.3 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
123.4 031-9010-18 031-9010-18 - Upper Steering Arm (See Models Used On For Details)
$28.32
123.5 031-9014-18 031-9014-18 - Black Lower Adjuster Steering Arm 2019-2022 Maverick, Compact Outlaw
$53.24
123.6 031-9017-18 031-9017-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
123.7 031-9020-18 031-9020-18 - Left Black Steering Arm Elbow
$85.17
123.8 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
123.9 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
124.0 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
124.5 031-9015-18 031-9015-18 - Left Lower Steering Arm Adjuster Black
$53.24
124.6 031-9016-18 031-9016-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
124.7 031-9025-18 031-9025-18 - 2019 and Newer Black Steering Arm Elbow - Right
$85.17
139.0 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
139.1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
139.3 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
139.4 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
140.0 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
