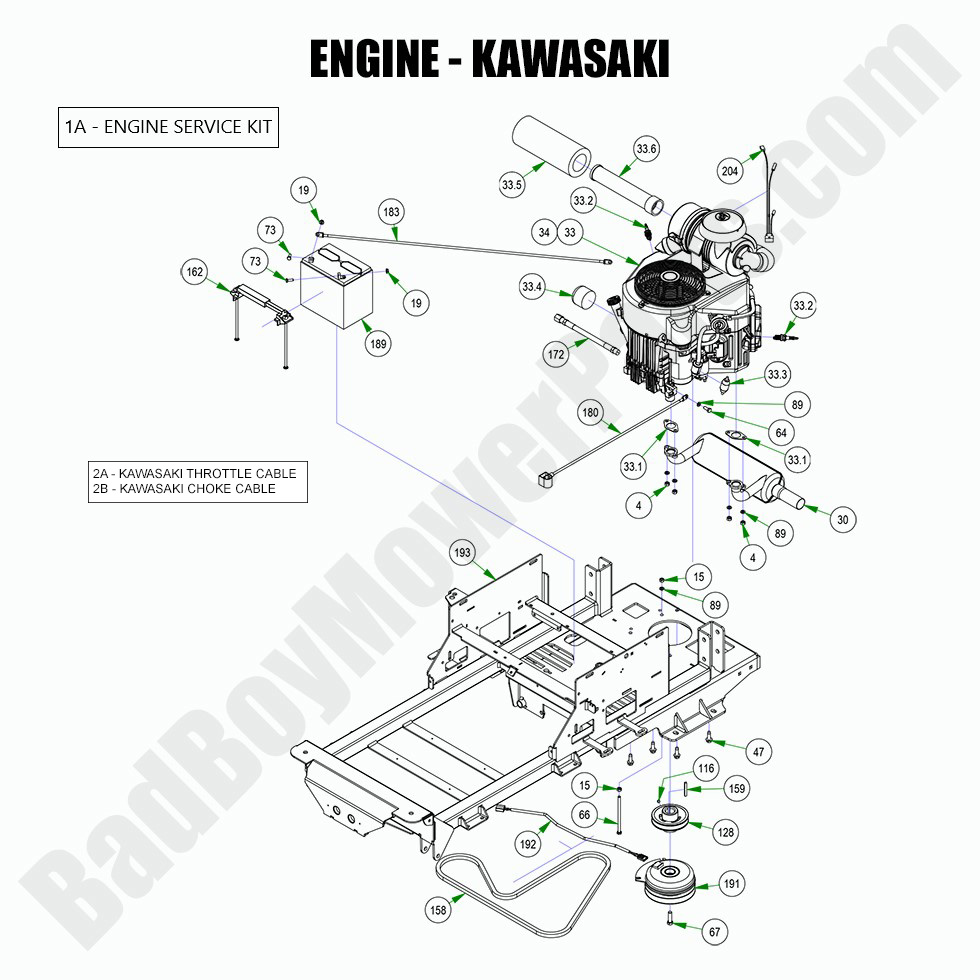

2022 Maverick HD - Engine - Kawasaki FX691/FX730

2022 Maverick HD - Engine - Kawasaki FX691/FX730

The 2022 Maverick HD Engine - Kawasaki FX691/FX730 offers unmatched power and reliability, ensuring top-notch performance for your mower. If you're in need of replacement or maintenance parts for this engine, BadBoyMowerParts.com is your go-to destination. We offer a wide selection of Bad Boy Mower Parts specifically designed for the Kawasaki FX691/FX730 engine, ensuring your mower runs smoothly. From oil filters to fuel pumps, we carry high-quality Bad Boy Lawn Mower Parts for all your engine needs. To simplify your search, our website provides Bad Boy Mower Part diagrams, making it easy to identify the exact part you need. With Bad Boy Parts Online, ordering is simple and convenient, and we deliver your parts straight to your door. Plus, enjoy Free Shipping On Orders Over $100, making it even easier to maintain your 2022 Maverick HD. Shop today at BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2022 Maverick HD - Engine - Kawasaki FX691/FX730
  Position Number SKU Product Title Price
1A 063-2000-14 063-2000-14 - Kawasaki FX691V & FX730V Engine Service Kit
$127.15
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
4 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
15 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
30 015-0052-00 015-0052-00 - Kawasaki Exhaust MZ/ZT/Maverick/Compact Outlaw (See Models Used On For Details)
$217.48
33.1 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
33.2 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
33.3 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
33.4 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
33.5 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
33.6 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
33 015-0691-00 015-0691-00 - FX691 Kawasaki Compact Outlaw
$2599.00
34 015-0730-00 015-0730-00 - FX730 Kawasaki Engine
$2599.00
47 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
64 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
66 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
67 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
73 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
89 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
116 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
128 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
158 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
159 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
162 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
172 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
180 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
183 064-8060-00 064-8060-00 - 36" Red Battery Cable (See Models Used On For Details)
$20.93
191 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
192 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
193 070-5492-00 070-5492-00 - 2022 Maverick Frame--Painted
$799.99
204 086-9002-00 086-9002-00 - Harness Adaptor-Outlaw FX-All
$46.84
