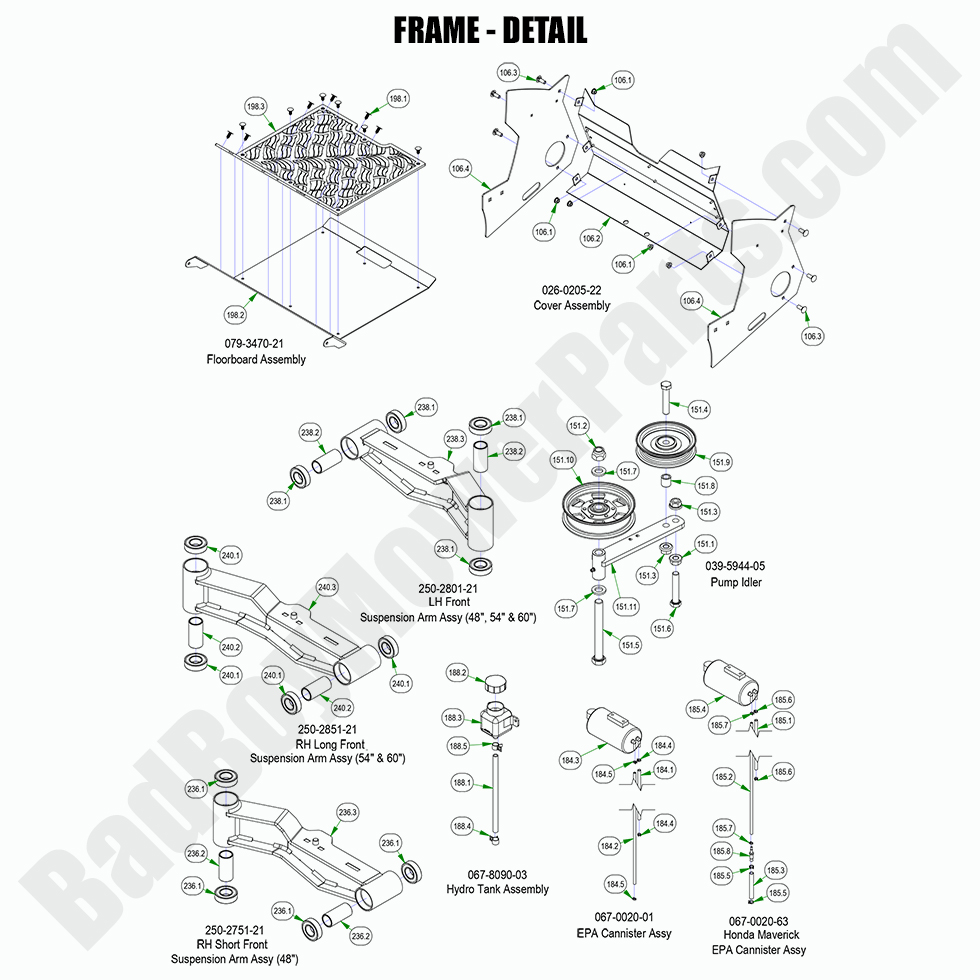

2022 Maverick HD - Frame - Detail

2022 Maverick HD - Frame - Detail

The 2022 Maverick HD Frame - Detail is the structural backbone of your mower, providing stability and durability for long-lasting performance. If you're looking to replace or repair any part of your mower’s frame, BadBoyMowerParts.com offers an extensive selection of Bad Boy Mower Parts. Our Bad Boy Lawn Mower Parts are specifically designed for the 2022 Maverick HD, ensuring a perfect fit. Whether you need a frame component, reinforcement part, or another piece, our Bad Boy Mower Part diagrams help you easily identify the correct part. With Bad Boy Parts Online, you can conveniently browse and order the parts you need. Plus, enjoy Free Shipping On Orders Over $100, making it even more cost-effective to maintain your mower’s frame. Get the parts you need to keep your 2022 Maverick HD in excellent working order by shopping at BadBoyMowerParts.com today.

Bad Boy Mower Parts Lookup

2022 Maverick HD - Frame - Detail
  Position Number SKU Product Title Price
106.0 026-0205-22 026-0205-22 - 2022 Maverick Rear Cover Assembly
$189.99
106.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
106.2 014-5300-00 014-5300-00 - 2021-2022 Maverick Rear Cover Assembly
$222.99
106.3 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
106.4 026-0226-00 026-0226-00 Rear Cover Side Plate - Painted
$42.79
151.0 039-5944-05 039-5944-05 - Pump Idler Bracket Assy-EZT
$70.97
151.1 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
151.2 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
151.3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
151.4 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
151.5 018-6016-00 018-6016-00 - 5/8 x 5 1/2 Bolt
$2.99
151.6 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
151.7 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
151.8 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
151.9 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
151.10 033-8000-00 033-8000-00 - 5 3/4 Pump Idler Pulley-5/8 Bore 2016-2025 Maverick
$35.48
151.11 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
184.0 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
184.1 051-2020-01 051-2020-01 - 1/4 Vinyl 46" EPA Line (See Models Used On For Details)
$12.48
184.2 051-2025-02 051-2025-02 - 3/16 Vinyl 55" EPA Line
$12.48
184.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
184.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
184.4 072-8060-00 072-8060-00 - 7/16"-1" No. 8 Stainless Steel Hose Clam
$2.99
184.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
185.0 067-0020-63 067-0020-63 - 2019-2022 Maverick Honda EPA Cannister Assembly
$85.59
185.3 051-8065-00 051-8065-00 - 3/8" Black PVC Tubing
$7.69
185.5 072-8068-00 072-8068-00 - 5/16 Fuel Line Clamp
$3.62
185.8 073-8071-00 073-8071-00 - 3/8 - 1/4 Nylon Reducer
$2.99
188.0 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
188.1 051-0016-00 051-0016-00 -ZT/ Maverick 10" Hydro Tank Hose
$9.61
188.2 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
188.3 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
188.4 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
188.5 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
198.0 079-3470-21 079-3470-21 - 2021 Maverick Floorboard Assembly
$159.99
198.1 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
198.2 079-3470-18 079-3470-18 - Floor Panel 2018-2024 Maverick, 2021-2024 ZT Elite
$106.99
198.3 081-4001-00 081-4001-00 - 2021-2024 Floor Mat W/ Reaper Tread
$53.49
236.0 250-2751-21 250-2751-21 - 2021 Maverick RH Arm Assembly - Short
$199.99
236.1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
236.2 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
236.3 250-2751-00 250-2751-00 - I-Beam Front Arm Short-RH--Painted
$129.99
238.0 250-2801-21 250-2801-21 - 2021 and Newer Maverick LH Front Suspension Arm Assy
$132.68
238.3 250-2801-00 250-2801-00 - I-Beam Front Arm-LH--Painted (See Models Used On For Details)
$93.64
240.0 250-2851-21 250-2851-21 - 2021 and Newer Maverick RH Long Front Suspension Arm Assy
$149.99
240.3 250-2851-00 250-2851-00 - I-Beam Front Arm Long-RH--Painted
$93.64
