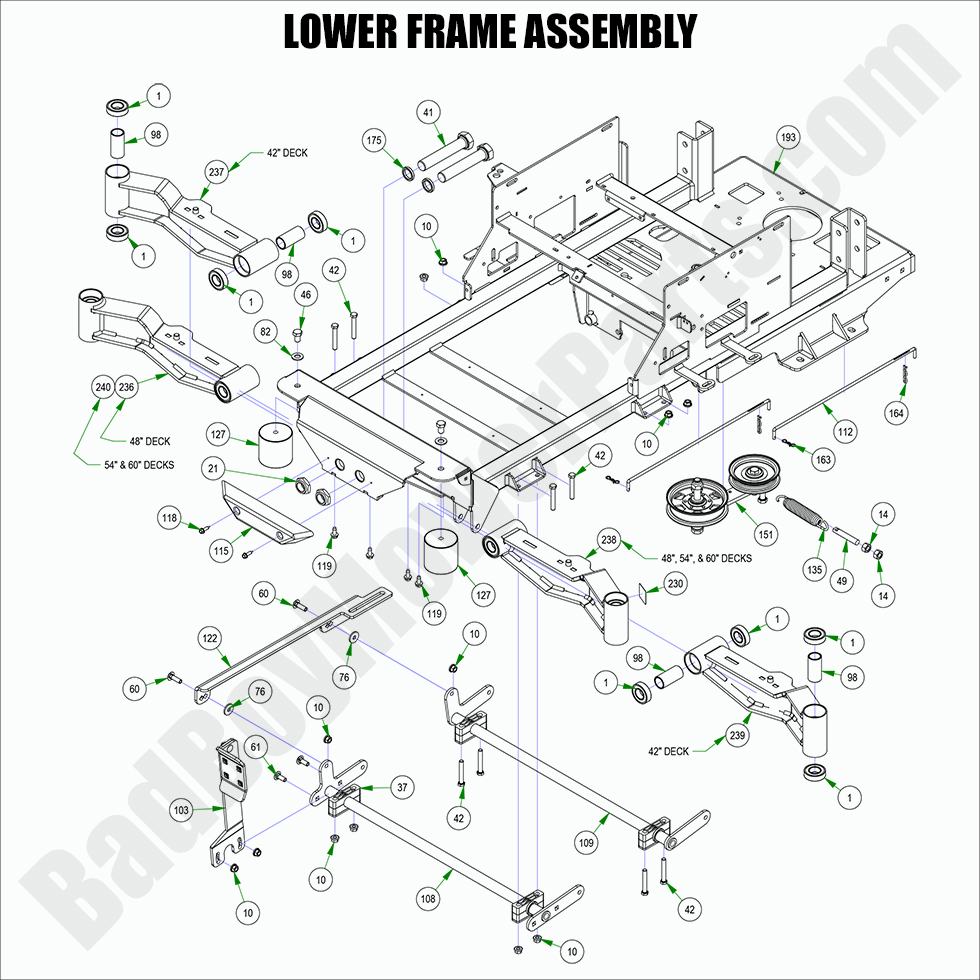

2022 Maverick HD - Lower Frame Assembly

2022 Maverick HD - Lower Frame Assembly

The 2022 Maverick HD Lower Frame Assembly is a vital part of your mower’s structure, providing strength and stability to the entire machine. If you're in need of Bad Boy Mower Parts for maintenance or repairs, BadBoyMowerParts.com has a full range of Bad Boy Lawn Mower Parts specifically designed for the 2022 Maverick HD. From reinforcement brackets to lower frame components, we carry high-quality parts that ensure your mower continues to perform at its best. To help you find the right parts, we provide detailed Bad Boy Mower Part diagrams that make identifying the components you need a breeze. Shopping for Bad Boy Parts Online is simple and convenient with our user-friendly website, and don’t forget that we offer Free Shipping On Orders Over $100 to save you even more. Visit BadBoyMowerParts.com today for all your lower frame assembly needs.

Bad Boy Mower Parts Lookup

2022 Maverick HD - Lower Frame Assembly
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
14 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
21 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
37 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
41 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
42 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
46 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
49 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
60 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
61 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
76 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
82 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
98 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
103 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
108 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
109 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
112 028-0070-00 028-0070-00 - Neutral Rod
$12.48
115 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
118 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
119 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
122 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
127 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
135 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
151 039-5944-05 039-5944-05 - Pump Idler Bracket Assy-EZT
$70.97
163 044-2004-00 044-2004-00 - Bow Pin
$2.99
164 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
175 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
193 070-5492-00 070-5492-00 - 2022 Maverick Frame--Painted
$799.99
230 091-8002-00 091-8002-00 - Independently Articulating Front Susp. Arms Patent Decal
$5.49
236 250-2751-21 250-2751-21 - 2021 Maverick RH Arm Assembly - Short
$199.99
237 250-2752-22 250-2752-22 - 42" Maverick HD Front Suspension Arm Ass
$209.99
238 250-2801-21 250-2801-21 - 2021 and Newer Maverick LH Front Suspension Arm Assy
$132.68
239 250-2802-22 250-2802-22 - 42" Maverick HD Front Suspension Arm Ass
$149.99
240 250-2851-21 250-2851-21 - 2021 and Newer Maverick RH Long Front Suspension Arm Assy
$149.99
