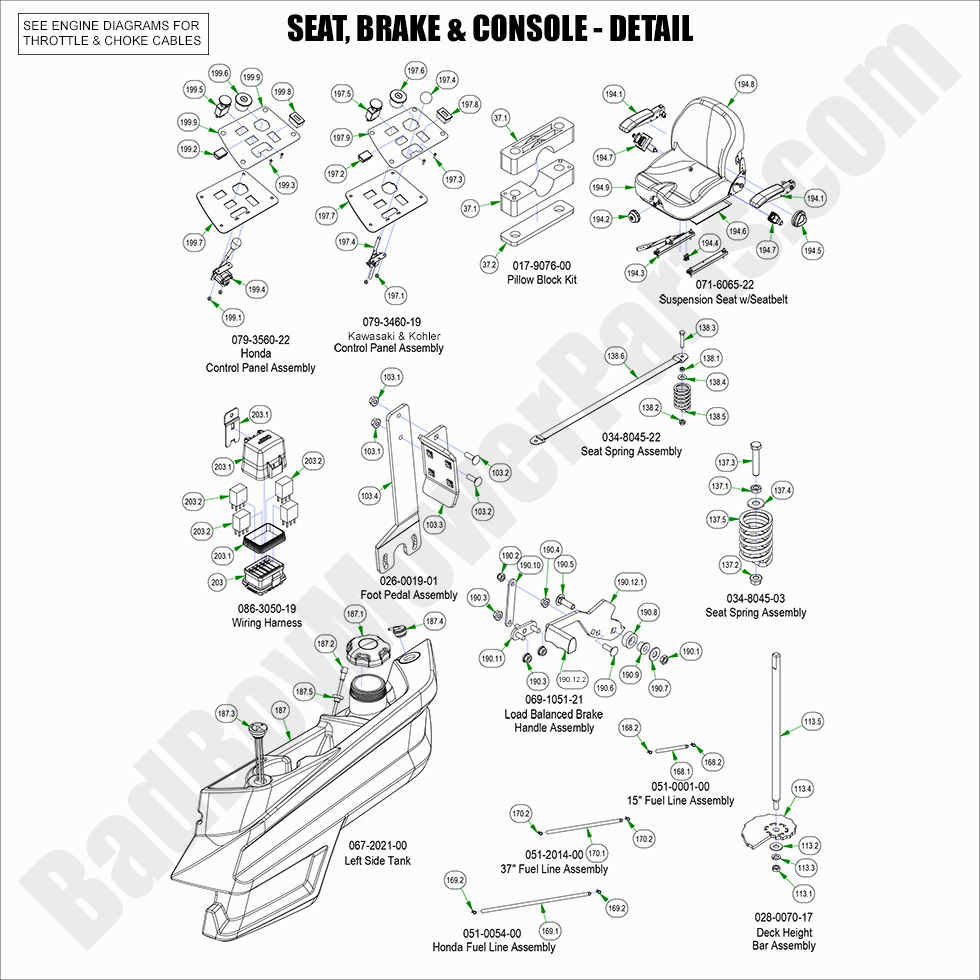

2022 Maverick HD - Seat, Brake & Console - Detail

2022 Maverick HD - Seat, Brake & Console - Detail

The 2022 Maverick HD Seat, Brake & Console - Detail are critical for comfort and control, ensuring that you have a smooth and efficient mowing experience. If you're in need of replacement parts for these components, BadBoyMowerParts.com has an extensive selection of Bad Boy Mower Parts designed specifically for your 2022 Maverick HD. Whether it’s a new seat, a replacement brake assembly, or a console part, we carry Bad Boy Lawn Mower Parts that guarantee durability and fit. Our Bad Boy Mower Part diagrams offer a detailed guide to help you easily identify the correct components. With Bad Boy Parts Online, ordering is straightforward, and we’ll deliver the parts directly to your door. Plus, enjoy Free Shipping On Orders Over $100 to help you save on all your parts purchases. Keep your mower in top condition by shopping at BadBoyMowerParts.com today.

Bad Boy Mower Parts Lookup

2022 Maverick HD - Seat, Brake & Console - Detail
  Position Number SKU Product Title Price
37.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
37.1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
37.2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
103.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
103.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
103.2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
103.3 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
103.4 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
113.0 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
113.1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
113.2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
113.3 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
113.4 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
113.5 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
137.0 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
137.1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
137.2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
137.3 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
137.5 034-8045-00 034-8045-00 - Seat Spring
$20.49
138.0 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
168.0 051-0001-00 051-0001-00 - Fuel Line-15" (See Models Used On For Details)
$40.53
168.1 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
168.2 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
169.0 051-0054-00 051-0054-00 - Maverick Honda Fuel Line (obsolete)
use part #051-2014-00
$40.53
170.0 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
170.1 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
187.0 067-2021-00 067-2021-00 - 2021-2024 Maverick Left Side Tank
$349.99
187.1 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
187.2 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
187.3 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
187.4 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
187.5 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
190.0 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
190.1 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
190.2 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
190.4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
190.5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
190.8 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
190.9 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
190.10 039-0170-00 039-0170-00 - Brake Cable Extension Plate
$10.99
190.11 039-0171-00 039-0171-00 - Brake Load Balancer Weldment
$10.99
190.12.1 069-3000-00 069-3000-00 - Switch Relocation Brake Handle No Longer Available
Obsolete.
190.12.2 069-3010-00 069-3010-00 - Brake Handle Rubber
$18.45
194.0 071-6065-22 071-6065-22 - Suspension Seat with Seatbelt (See Models Used On For Details) (obsolete)
use part #071-6065-25
$829.99
194.1 071-6065-04 071-6065-04 - Arm Kit for 071-6065-00
$136.99
194.2 071-6065-05 071-6065-05 - Weight Adjustment Knob for 071-6065-00
$32.09
194.3 071-6065-06 071-6065-06 - Tracks for 071-6065-00 (See Models Used On For Details)
$99.37
194.4 071-6065-07 071-6065-07 - Seat Switch for 071-6065-00
$21.28
194.5 071-6065-10 071-6065-10 - Recliner Adjustment Knob
$32.09
194.6 071-6065-13 071-6065-13 Bellows w/Hardware for 071-6065-22
$64.19
194.7 071-6065-14 071-6065-14 - 2" Retractable Belt Kit w/Spacers for 07
$119.99
194.8 071-6065-15 071-6065-15 Back Cover for I3M - Recl - Logos for 071-6065-22
$199.99
194.9 071-6065-16 071-6065-16 Cushion Cover Kit for I3M - Logo for 071-6065-22
$153.99
197.0 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
197.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
197.2 018-1040-00 018-1040-00 - Light Plug
$2.99
197.3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
197.5 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
197.6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
197.7 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
197.8 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
197.9 091-0338-22 091-0338-22 - Control Panel Decal (See Models Used On For Details)
$17.11
199.7 079-3461-00 079-3461-00 - Control Panel--Orange
$23.53
199.9 091-4072-00 091-4072-00 - Control Panel Decal
$9.89
203.0 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
203.1 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
203.2 086-1202-19 086-1202-19 - Relay Terminal
$24.97
