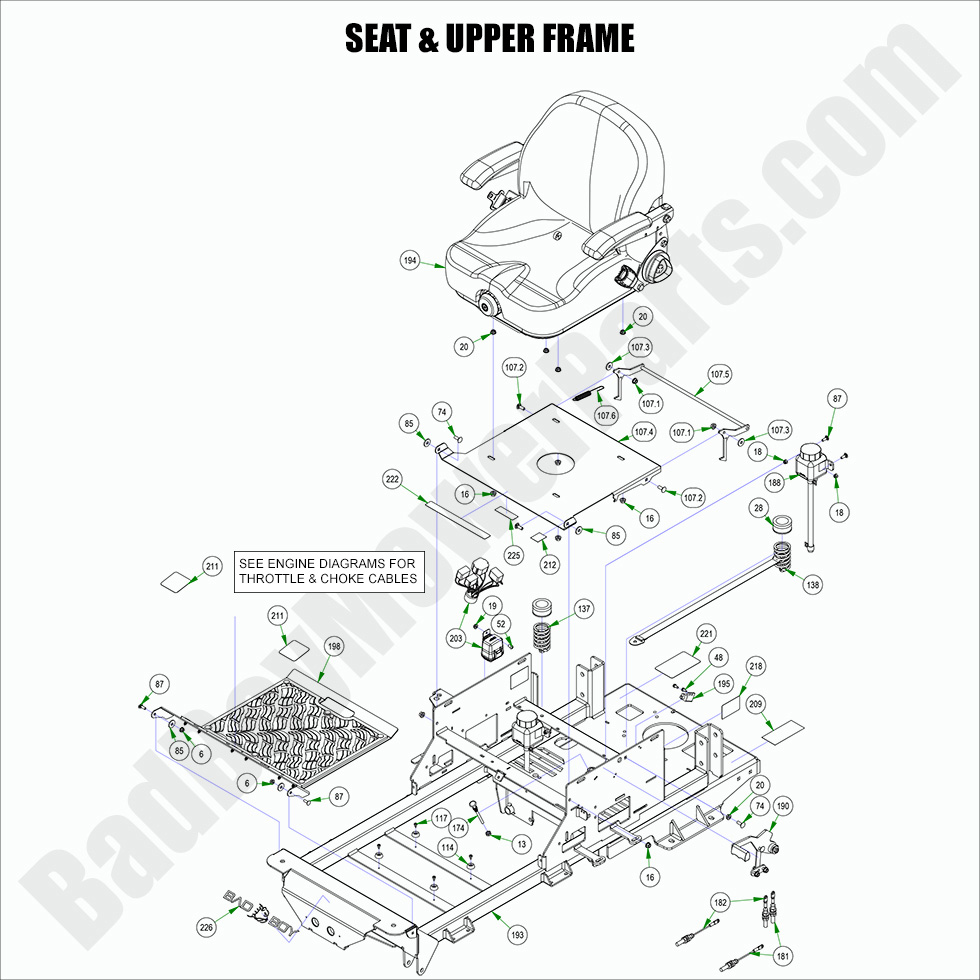

2022 Maverick HD - Seat & Upper Frame

2022 Maverick HD - Seat & Upper Frame

The 2022 Maverick HD Seat & Upper Frame are crucial for both comfort and functionality, providing a stable and supportive platform for the operator. Whether you need to replace the seat or the upper frame, BadBoyMowerParts.com offers a comprehensive selection of Bad Boy Mower Parts. Our stock includes Bad Boy Lawn Mower Parts that are specifically designed to fit your 2022 Maverick HD, ensuring maximum comfort and performance. To help you identify the correct parts, we offer detailed Bad Boy Mower Part diagrams that clearly show the seat and upper frame components. Shopping for Bad Boy Parts Online is easy and convenient, and with Free Shipping On Orders Over $100, you’ll save while keeping your mower in excellent working order. Visit BadBoyMowerParts.com to get the parts you need for your 2022 Maverick HD Seat & Upper Frame.

Bad Boy Mower Parts Lookup

2022 Maverick HD - Seat & Upper Frame
  Position Number SKU Product Title Price
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
13 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
18 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
28 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
48 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
52 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
74 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
85 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
87 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
107.4 026-1016-00 026-1016-00 - Seat Plate
$102.11
107.5 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
107.6 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
114 029-4010-00 029-4010-00 - Button Bumper
$2.99
117 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
137 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
138 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
181 064-3050-21 064-3050-21 - 2021-2025 Load Balanced Brake Cable 1
$56.77
182 064-3051-21 064-3051-21 - 2021-2025 Load Balanced Brake Cable 2
$56.77
188 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
190 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
193 070-5492-00 070-5492-00 - 2022 Maverick Frame--Painted
$799.99
194 071-6065-22 071-6065-22 - Suspension Seat with Seatbelt (See Models Used On For Details) (obsolete)
use part #071-6065-25
$829.99
195 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
198 079-3470-21 079-3470-21 - 2021 Maverick Floorboard Assembly
$159.99
203 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
209 091-0015-22 091-0015-22 - EPA Build Date Punch Label
$3.62
211 091-0021-00 091-0021-00 - Steering Control Sticker
$11.76
212 091-0339-18 091-0339-18 - Brake Decal (See Models Used On For Details)
$11.76
218 091-1020-00 091-1020-00 - Hydraulic Decal (See Models Used On For Details)
$2.99
221 091-3017-50 091-3017-50 - Maverick Pump Belt Decal
$4.83
222 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
226 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
