2022 Maverick HD - Spindle Assembly & Idlers

2022 Maverick HD - Spindle Assembly & Idlers

The 2022 Maverick HD Spindle Assembly & Idlers are essential components that contribute to the performance and durability of your mower’s cutting system. If you're experiencing issues with your mower's deck, it may be time to replace the spindle assembly or idlers. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts specifically designed for your 2022 Maverick HD. Our selection of Bad Boy Lawn Mower Parts ensures you find the perfect fit for your mower's cutting deck. We offer Bad Boy Mower Part diagrams to make identifying and replacing parts easier than ever. With Bad Boy Parts Online, you can conveniently shop for spindle assemblies, idlers, and other components from the comfort of your home. Additionally, enjoy Free Shipping On Orders Over $100, so maintaining your mower is more affordable. Shop now at BadBoyMowerParts.com for all your spindle and idler needs.

Bad Boy Mower Parts Lookup

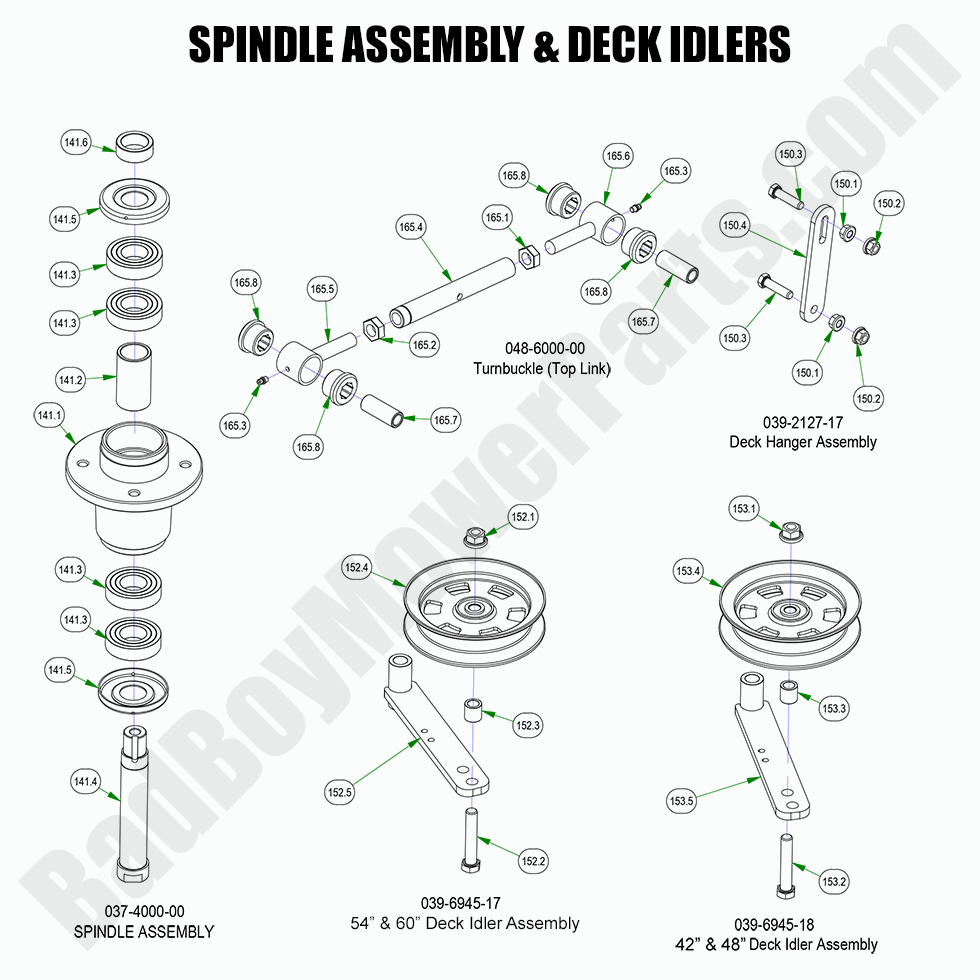

2022 Maverick HD - Spindle Assembly & Idlers
  Position Number SKU Product Title Price
141.0 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
141.2 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
141.3 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
141.4 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
141.5 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
141.6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
150.0 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
150.1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
150.2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
150.3 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
150.4 039-2127-00 039-2127-00 - Deck Hanger (See Models Used On For Details) (obsolete)
use part #039-2127-17
$15.60
152.0 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
152.1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
152.2 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
152.3 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
152.4 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
152.5 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
153.0 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
165.0 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
165.1 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
165.2 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
165.3 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
165.4 048-6001-00 048-6001-00 - Maverick/Compact Outlaw Toplink Body (See Models Used On For Details)
$28.32
165.5 048-6002-00 048-6002-00 - Maverick/Compact Outlaw Topllink Bushing Retainer (See Models Used On For Details)
$28.32
165.6 048-6003-00 048-6003-00 - Toplink Bushing Retainer (See Models Used On For Details)
$28.32
165.7 048-6004-00 048-6004-00 - Maverick/Compact Outlaw Topllink Bushing Sleeve (See Models Used On For Details)
$11.29
165.8 048-6005-00 048-6005-00 - Toplink Bushing (See Models Used On For Details)
$32.09
