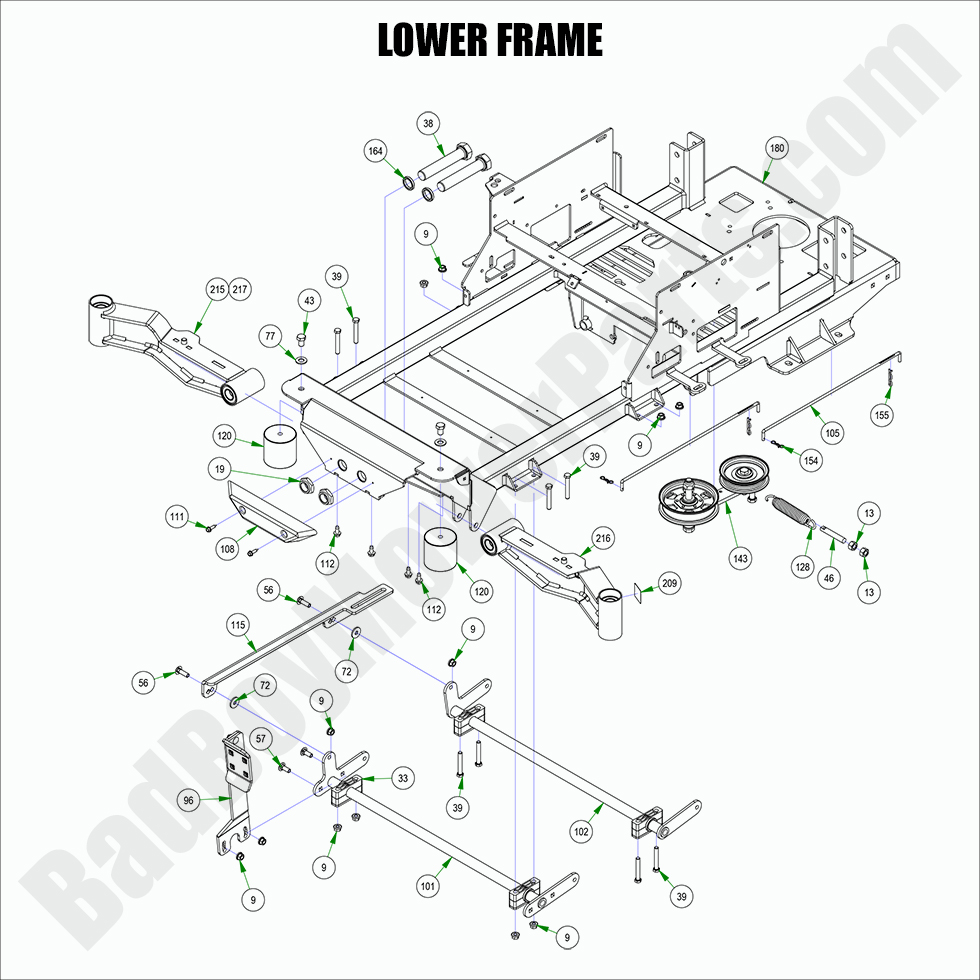

2022 Maverick - Lower Frame Assembly

2022 Maverick - Lower Frame Assembly

The 2022 Maverick Lower Frame Assembly is a key structural component that supports the mower’s stability and durability. When repairs are needed, choosing genuine Bad Boy Mower Parts ensures long-lasting performance and safety. At BadBoyMowerParts.com, our comprehensive Bad Boy Mower Part diagrams make it simple to find and order the correct parts. Whether you need replacement brackets, supports, or fasteners, we stock a full selection of Bad Boy Lawn Mower Parts to restore your mower’s integrity. Finding Bad Boy Parts Online has never been easier with our user-friendly website and organized inventory. Plus, take advantage of Free Shipping On Orders Over $100, so you can get high-quality parts at the best value. Maintain the strength and functionality of your 2022 Maverick Lower Frame Assembly with reliable replacement parts from our trusted selection!

Bad Boy Mower Parts Lookup

2022 Maverick - Lower Frame Assembly
  Position Number SKU Product Title Price
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
19 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
33 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
38 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
39 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
43 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
46 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
56 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
57 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
72 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
77 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
96 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
101 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
102 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
105 028-0070-00 028-0070-00 - Neutral Rod
$12.48
108 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
111 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
112 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
115 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
120 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
128 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
143 039-5944-05 039-5944-05 - Pump Idler Bracket Assy-EZT
$70.97
154 044-2004-00 044-2004-00 - Bow Pin
$2.99
155 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
164 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
180 070-5492-00 070-5492-00 - 2022 Maverick Frame--Painted
$799.99
209 091-8002-00 091-8002-00 - Independently Articulating Front Susp. Arms Patent Decal
$5.49
215 250-2751-21 250-2751-21 - 2021 Maverick RH Arm Assembly - Short
$199.99
216 250-2801-21 250-2801-21 - 2021 and Newer Maverick LH Front Suspension Arm Assy
$132.68
217 250-2851-21 250-2851-21 - 2021 and Newer Maverick RH Long Front Suspension Arm Assy
$149.99
