2022 Maverick - Spindle Assembly & Idlers

2022 Maverick - Spindle Assembly & Idlers

The 2022 Maverick Spindle Assembly & Idlers are critical for maintaining smooth blade rotation and ensuring an even cut. Over time, spindles and idlers wear out, reducing cutting efficiency. At BadBoyMowerParts.com, we provide durable Bad Boy Mower Parts to restore optimal performance. Our precise Bad Boy Mower Part diagrams help you quickly identify and order the correct spindle or idler replacements. Using premium Bad Boy Lawn Mower Parts prevents uneven mowing and extends the lifespan of your deck components. Ordering Bad Boy Parts Online is simple, giving you easy access to the highest-quality mower parts. Plus, with Free Shipping On Orders Over $100, you get the best value while keeping your mower in top shape. Replace your worn 2022 Maverick Spindle Assembly & Idlers today with trusted parts from our reliable selection!

Bad Boy Mower Parts Lookup

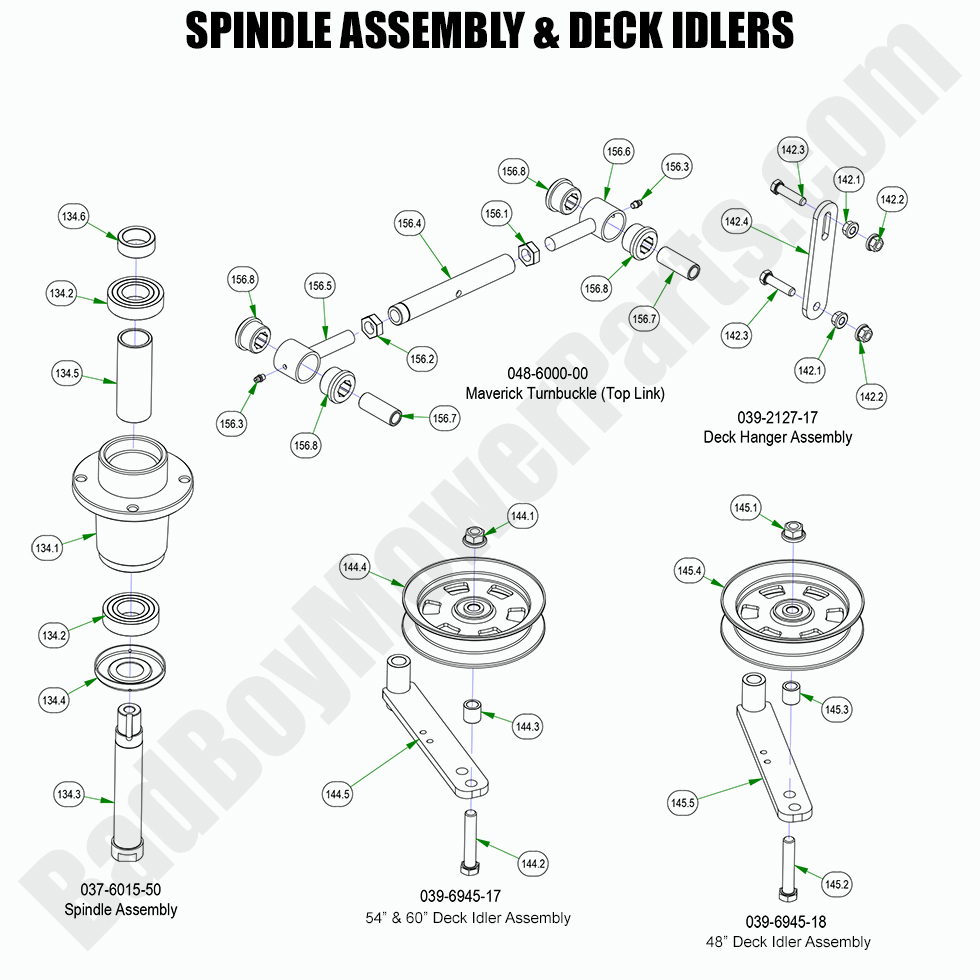

2022 Maverick - Spindle Assembly & Idlers
  Position Number SKU Product Title Price
134.0 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
134.1 037-6017-50 037-6017-50 - Compact Outlaw / Maverick / Walkbehind / ZT & 2007 Pup Aluminum Spindle Housing (obsolete)
use part #037-6015-50
$199.99
134.2 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
134.3 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
134.4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
134.5 037-8050-00 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle
$8.69
134.6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
142.0 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
142.1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
142.2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
142.3 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
142.4 039-2127-00 039-2127-00 - Deck Hanger (See Models Used On For Details) (obsolete)
use part #039-2127-17
$15.60
144.0 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
144.1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
144.2 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
144.3 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
144.4 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
144.5 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
145.0 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
156.0 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
156.1 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
156.2 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
156.3 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
156.4 048-6001-00 048-6001-00 - Maverick/Compact Outlaw Toplink Body (See Models Used On For Details)
$28.32
156.5 048-6002-00 048-6002-00 - Maverick/Compact Outlaw Topllink Bushing Retainer (See Models Used On For Details)
$28.32
156.6 048-6003-00 048-6003-00 - Toplink Bushing Retainer (See Models Used On For Details)
$28.32
156.7 048-6004-00 048-6004-00 - Maverick/Compact Outlaw Topllink Bushing Sleeve (See Models Used On For Details)
$11.29
156.8 048-6005-00 048-6005-00 - Toplink Bushing (See Models Used On For Details)
$32.09
