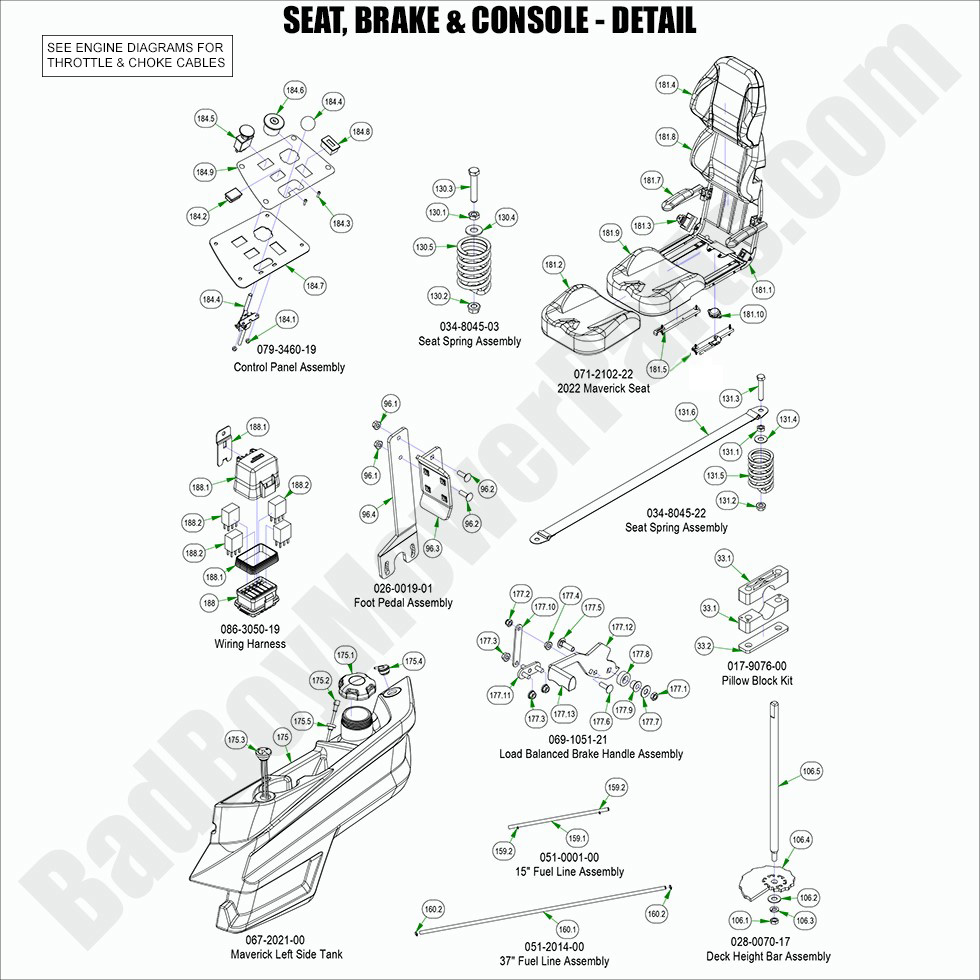

2022 Maverick - Seat, Brake & Console - Detail

2022 Maverick - Seat, Brake & Console - Detail

The 2022 Maverick Seat, Brake & Console - Detail components are essential for operator comfort, control, and safety. When your seat, brake system, or control console shows signs of wear, replacing them with premium Bad Boy Mower Parts ensures smooth operation. At BadBoyMowerParts.com, our easy-to-use Bad Boy Mower Part diagrams make it simple to locate the correct parts for quick and accurate repairs. Using genuine Bad Boy Lawn Mower Parts guarantees durability and reliability for years of use. Finding Bad Boy Parts Online is fast and convenient with our extensive inventory. Plus, take advantage of Free Shipping On Orders Over $100, saving you money while maintaining your mower’s comfort and functionality. Keep your 2022 Maverick Seat, Brake & Console - Detail components in peak condition with our top-quality replacement parts!

Bad Boy Mower Parts Lookup

2022 Maverick - Seat, Brake & Console - Detail
  Position Number SKU Product Title Price
33.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
33.1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
96.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
96.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
96.2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
96.3 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
96.4 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
106.0 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
106.1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
106.2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
106.3 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
106.4 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
106.5 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
130.0 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
130.1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
130.2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
130.3 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
130.5 034-8045-00 034-8045-00 - Seat Spring
$20.49
131.0 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
131.6 064-8083-00 064-8083-00 Seat Strap w/Buckles
$24.60
159.0 051-0001-00 051-0001-00 - Fuel Line-15" (See Models Used On For Details)
$40.53
159.1 051-8076-00 051-8076-00 - 3/8 Fuel Line-Priced per Foot
$6.59
159.2 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
160.0 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
160.1 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
175.0 067-2021-00 067-2021-00 - 2021-2024 Maverick Left Side Tank
$349.99
175.1 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
175.2 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
175.3 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
175.4 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
175.5 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
177.0 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
177.1 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
177.2 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
177.4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
177.5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
177.6 018-8056-00 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8
$2.99
177.8 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
177.9 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
177.10 039-0170-00 039-0170-00 - Brake Cable Extension Plate
$10.99
177.13 069-3010-00 069-3010-00 - Brake Handle Rubber
$18.45
181.0 071-2102-22 071-2102-22 - 2022 - 2023 Maverick Seat
$692.99
181.2 071-2114-00 071-2114-00 - Bad Boy Seat Cover for 071-2102-22
$106.99
181.3 071-2115-00 071-2115-00 - Webb Manufacturing Seat Belt Set for 071-2102-22
$119.99
181.4 071-2116-00 071-2116-00 - Bad Boy Back Cover for 071-2102-22
$109.99
181.5 071-5015-00 071-5015-00 - Seat Rails
$93.69
181.7 071-2119-00 071-2119-00 - Poly Pad w/ Shorter AFT Bracket for 071-2102-22
$139.99
181.8 071-5067-01 071-5067-01 - Back Cover Molded Foam for 071-5060-18
$64.19
181.10 071-5070-00 071-5070-00 - Seat Switch for 071-5060-18
$56.77
184.0 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
184.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
184.2 018-1040-00 018-1040-00 - Light Plug
$2.99
184.3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
184.5 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
184.6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
184.7 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
184.8 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
184.9 091-0338-22 091-0338-22 - Control Panel Decal (See Models Used On For Details)
$17.11
188.0 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
188.1 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
188.2 086-1202-19 086-1202-19 - Relay Terminal
$24.97
