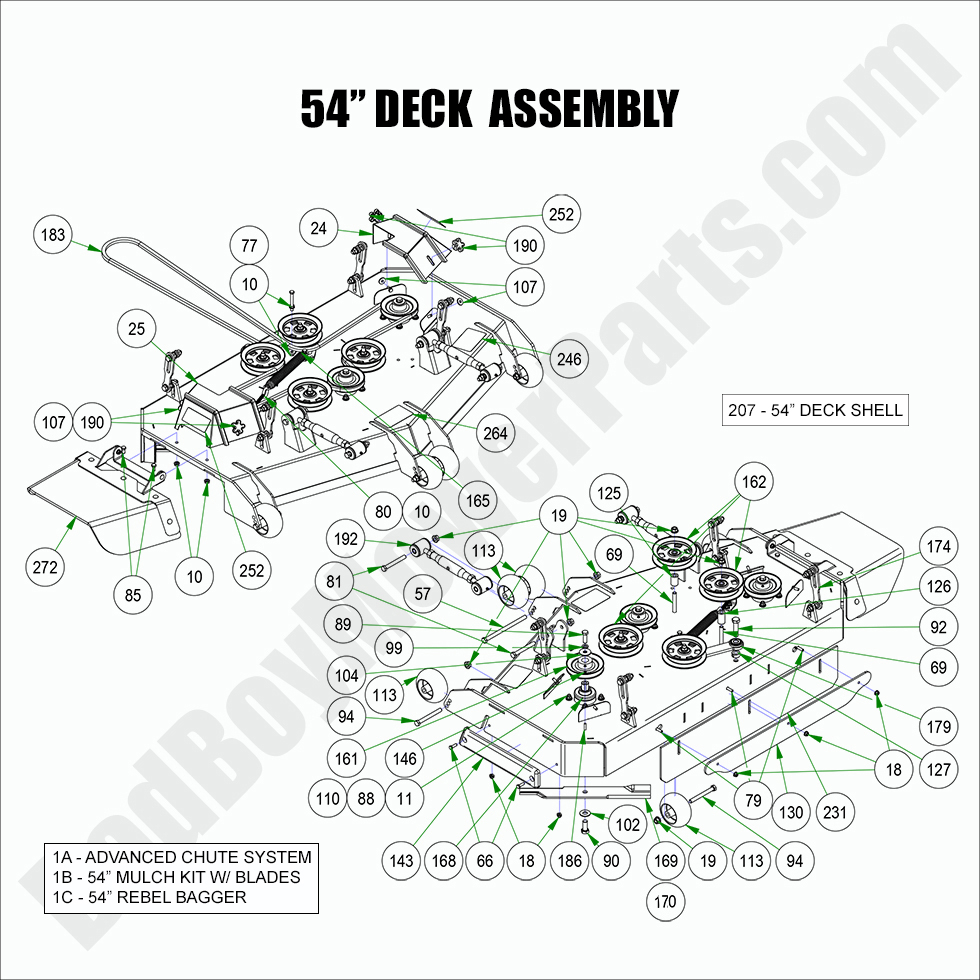

2022 Rebel - 54" Deck Assembly

2022 Rebel - 54" Deck Assembly

The 2022 Rebel 54" Deck Assembly is engineered for superior cutting performance and durability. Whether you need replacement blades, spindles, or pulleys, our Bad Boy Mower Part diagrams provide clear guidance on part placement and installation. At BadBoyMowerParts.com, we supply genuine Bad Boy Mower Parts designed to fit your mower perfectly. Keeping your deck in optimal condition is crucial, and using the best Bad Boy Lawn Mower Parts ensures long-lasting results. Finding Bad Boy Parts Online is effortless with our detailed product listings, making ordering simple and stress-free. Plus, take advantage of Free Shipping On Orders Over $100, so you can maintain your deck assembly without worrying about extra costs. Whether you're replacing worn components or upgrading for better performance, trust our high-quality parts to keep your 2022 Rebel 54" Deck Assembly in excellent working order.

Bad Boy Mower Parts Lookup

2022 Rebel - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-5419-00 088-5419-00 - Advanced Chute System for 2019-2025 54" Outlaws
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
10 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
18 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
19 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
24 014-5050-00 014-5050-00 - 54" Deck Left Pulley Cover 2019-2022 Rebel & Rogue
$17.86
25 014-5051-00 014-5051-00 - 54" Deck Right Pulley Cover 2019-2025 Rebel & Rogue
$17.86
57 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
66 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
69 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
77 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
79 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
80 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
81 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
85 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
88 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
89 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
90 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
92 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
94 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
99 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
102 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
104 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
107 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
110 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
113 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
125 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
126 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
127 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
130 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
143 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
146 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
161 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
162 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
165 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
168 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
169 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
170 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
174 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
179 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
183 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
186 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
190 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
192 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
207 060-5551-19 060-5551-19 - 2019 54" Sloped Deck Weldment
$1099.99
231 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
246 091-0904-18 091-0904-18 - 54" Deck Decal (See Models Used On For Details)
$6.41
252 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
264 091-4036-00 091-4036-00 - 2019-2022 Rebel & Rogue Deck Belt Route Decal
$9.61
272 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
