2022 Rebel - 72" Deck Assembly

2022 Rebel - 72" Deck Assembly

Designed for heavy-duty mowing, the 2022 Rebel 72" Deck Assembly delivers exceptional performance and efficiency. Whether you need replacement blades, belts, or pulleys, our Bad Boy Mower Part diagrams make it easy to identify and install the right components. At BadBoyMowerParts.com, we stock a complete range of Bad Boy Mower Parts to keep your mower deck running smoothly. High-quality Bad Boy Lawn Mower Parts ensure durability and reliable performance, even in tough mowing conditions. With access to Bad Boy Parts Online, finding the perfect deck components has never been more convenient. Plus, with Free Shipping On Orders Over $100, you can order all the necessary parts without worrying about extra costs. Whether you need minor replacements or a full overhaul, trust our superior-quality parts to maintain the cutting efficiency of your 2022 Rebel 72" Deck Assembly.

Bad Boy Mower Parts Lookup

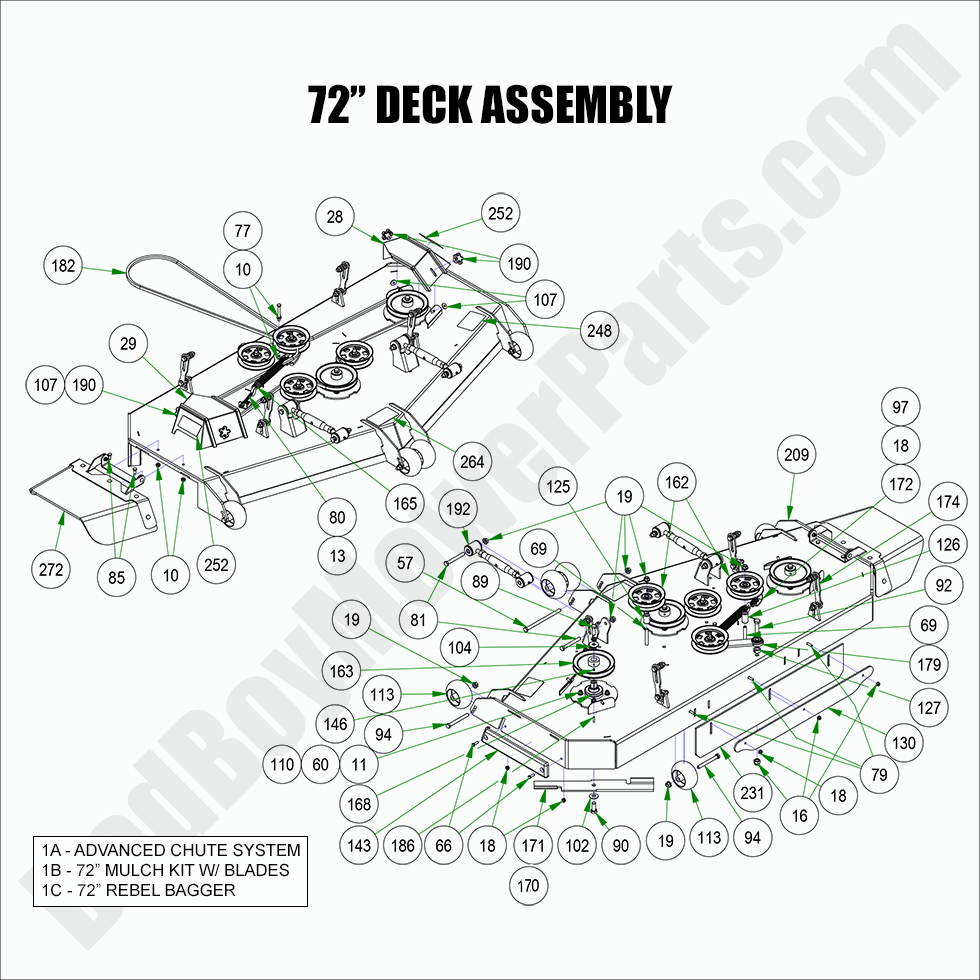

2022 Rebel - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0372-00 210-0372-00 - 2019-2025 72" Mulch Kit w/Blades Outlaws
$318.45
10 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
16 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
18 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
19 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99

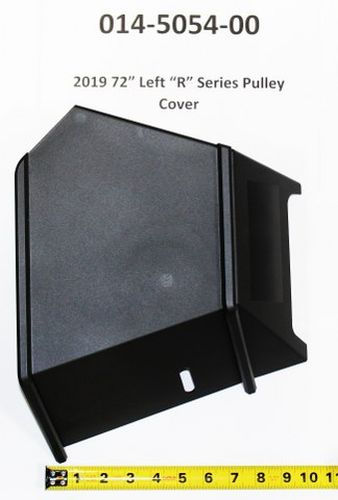

28 014-5054-00 014-5054-00 - 72" Left Deck Pulley Cover 2019 & Up Rebel, Renegade & Rogue
$17.86

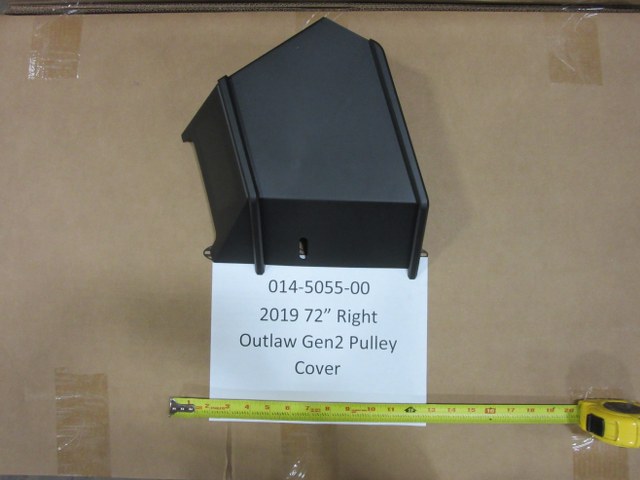

29 014-5055-00 014-5055-00 - 72" Right Deck Pulley Cover (See Models Used On For Details)
$17.86
57 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
60 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
66 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
69 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
77 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
79 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
80 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
81 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
85 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
89 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
90 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
92 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
94 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
97 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
102 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
104 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
107 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
110 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
113 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
125 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
126 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
127 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
130 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
143 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
146 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
162 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
163 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
165 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
168 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
170 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
171 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
172 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
174 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
179 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
182 041-0202-00 041-0202-00 - B202 Deck Belt for 72" (See Models Used On for Details)
$109.40
186 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
190 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
192 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24

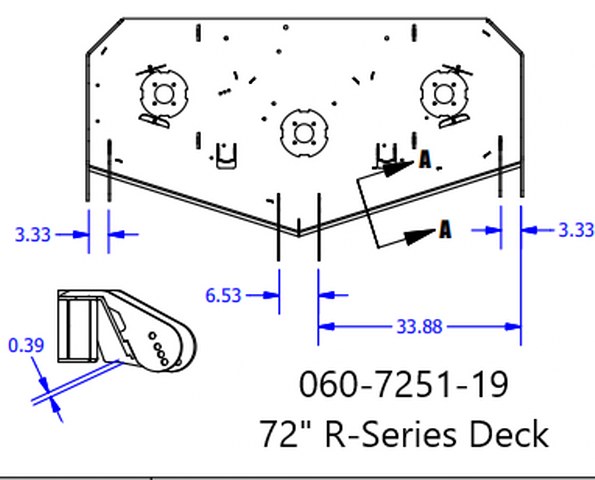

209 060-7251-19 060-7251-19 - 72" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
231 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77

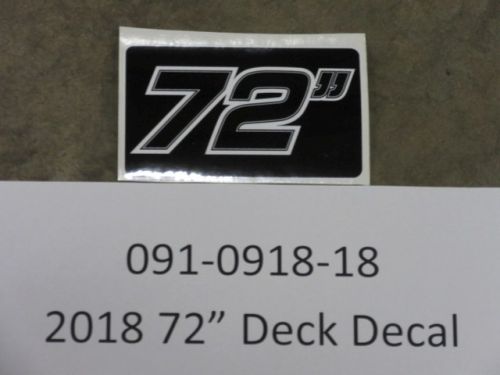

248 091-0918-18 091-0918-18 - 2018-2022 72" Deck Decal
$6.41
252 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
264 091-4036-00 091-4036-00 - 2019-2022 Rebel & Rogue Deck Belt Route Decal
$9.61
272 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
