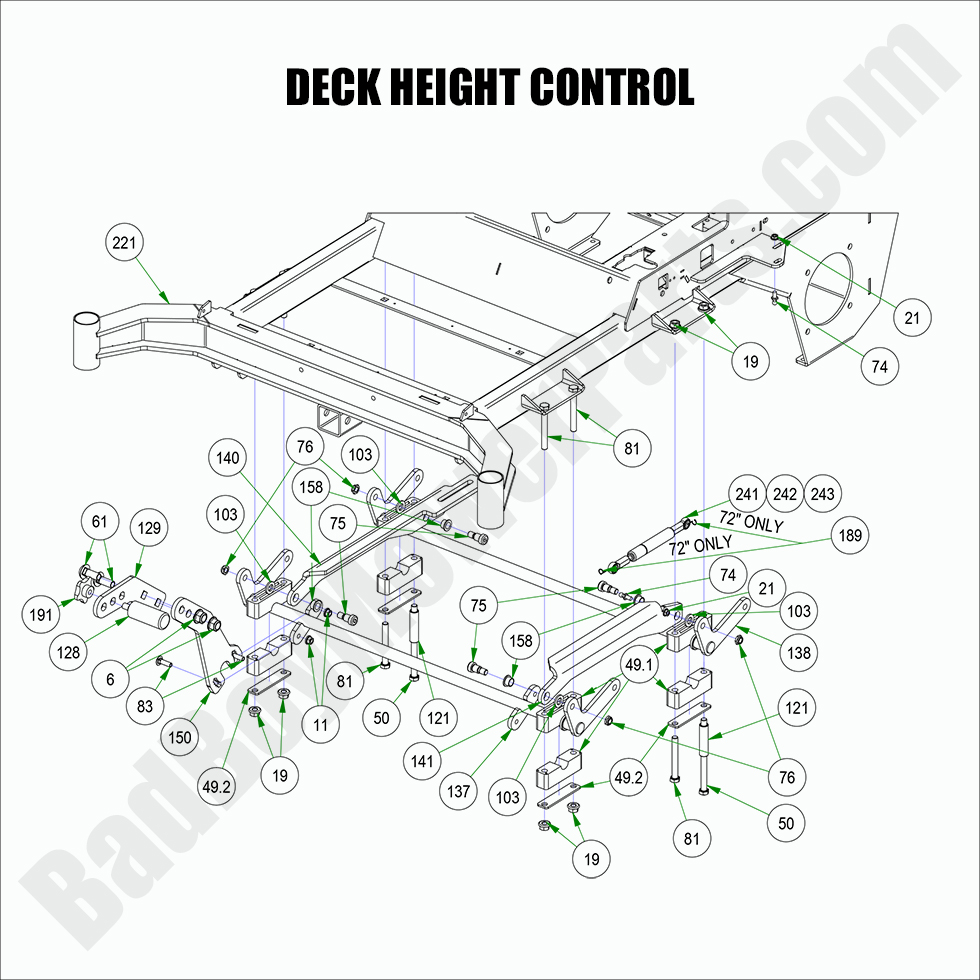

2022 Rebel - Deck Control Assembly

2022 Rebel - Deck Control Assembly

The 2022 Rebel Deck Control Assembly is responsible for precise deck adjustments and reliable operation. When replacing worn or broken components, our Bad Boy Mower Part diagrams provide a clear visual guide for easy installation. At BadBoyMowerParts.com, we offer a complete inventory of Bad Boy Mower Parts, ensuring you have access to high-quality replacements. Using genuine Bad Boy Lawn Mower Parts guarantees long-term durability and seamless functionality. With our extensive collection of Bad Boy Parts Online, you can quickly find and order everything needed for your deck control system. Plus, take advantage of Free Shipping On Orders Over $100, making maintenance more cost-effective. Whether you need levers, springs, or linkage components, our premium selection ensures smooth and precise deck operation, keeping your 2022 Rebel Deck Control Assembly in peak condition for years to come.

Bad Boy Mower Parts Lookup

2022 Rebel - Deck Control Assembly
  Position Number SKU Product Title Price
6 013-0090-00 013-0090-00 - 5/8-11 Nylon Insert Flange Nut
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
19 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
49.1 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
49.2 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
50 018-0004-00 018-0004-00 - 1/2-13 X 7" Hex Bolt -
$5.49
61 018-0080-00 018-0080-00 - 5/8-11 X 1-1/2 Carriage Bolt
$3.29
74 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
75 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
76 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
81 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
83 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
103 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
121 025-0033-00 025-0033-00 - Deck Stop Spacer (See Models Used On For Details)
$8.79
128 026-0026-00 026-0026-00 - Knurled Foot Pedal
$39.03
129 026-0222-00 026-0222-00 - R-Series Lift Extender Plate
$10.99
137 028-0026-00 028-0026-00 - Front Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$119.41
138 028-0027-00 028-0027-00 - Rear Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$82.38
140 028-6075-22 028-6075-22 - Actuator Linkage-Right
$43.86
150 031-0003-00 031-0003-00 - Foot Lift Upright Lever
$17.11
158 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
189 044-6050-00 044-6050-00 - Security Ring - PC744
$2.99
191 045-6044-00 045-6044-00 - Foot Pedal Knob 1/2-13
$12.48
241 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
242 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
243 087-7200-00 087-7200-00 - 300 lb Gas Spring -72" Deck Damper
$62.40
