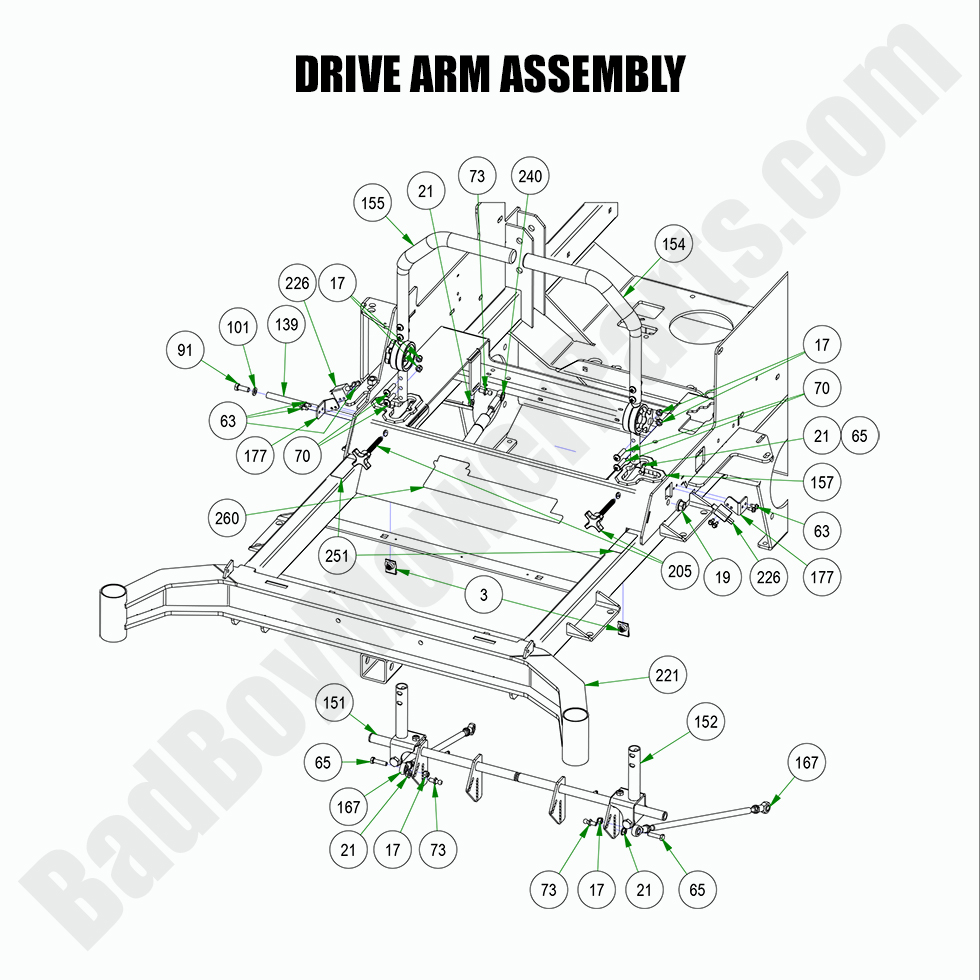

2022 Rebel - Drive Arm Assembly

2022 Rebel - Drive Arm Assembly

The 2022 Rebel Drive Arm Assembly is essential for steering and movement, allowing for precise mower control. If you need a replacement or repair, our Bad Boy Mower Part diagrams help you locate the exact components required. At BadBoyMowerParts.com, we provide a complete range of Bad Boy Mower Parts to keep your drive system working properly. Using high-quality Bad Boy Lawn Mower Parts ensures your mower remains responsive and reliable, preventing costly downtime. Ordering Bad Boy Parts Online is fast and efficient, allowing you to get back to mowing with minimal disruption. Plus, take advantage of Free Shipping On Orders Over $100, making repairs more affordable. Whether you need a new drive arm, bushings, or hardware, our premium selection ensures your 2022 Rebel Drive Arm Assembly functions smoothly for long-lasting performance.

Bad Boy Mower Parts Lookup

2022 Rebel - Drive Arm Assembly
  Position Number SKU Product Title Price
3 013-0021-00 013-0021-00 - Extruded Nut 3/8"-16 3/4"
$4.39
17 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
19 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
63 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
65 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
70 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
73 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
91 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
101 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
139 028-0051-00 028-0051-00 - Steering Actuator Rod 2019-2025 Rebel, Renegade & Rogue
$23.41
151 031-0030-19 031-0030-19 - R Series Right Arm Rod Assembly (See Models Used On For Details)
$85.17
152 031-0031-19 031-0031-19 - R Series Left Arm Rod Assembly, 2019-2023 Rebel/Renegade/Rogue
$85.17
154 031-9005-70 031-9005-70 - Left Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$132.68
155 031-9055-70 031-9055-70 - Right Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$115.31
157 032-0002-00 032-0002-00 - Snap-In Bushing 2019-2022 Rebel, Renegade & Rogue
$15.55
167 035-0003-00 035-0003-00 - 2019 - 2022 Rebel Push Rod Assembly
$42.58
177 039-2160-00 039-2160-00 - Arm Switch Bracket (See Models Used On For More Detail)
$13.90
205 057-5800-00 057-5800-00 - Speed Limiting Knob 3/8-16X 3"
$6.41
226 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
240 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
251 091-1114-00 091-1114-00 - 2018-2022 LH/RH Steering Control Decal Roll
$15.60
260 091-4010-00 091-4010-00 - 2019-2023 Rebel Cooler Cover Decal
$8.01
