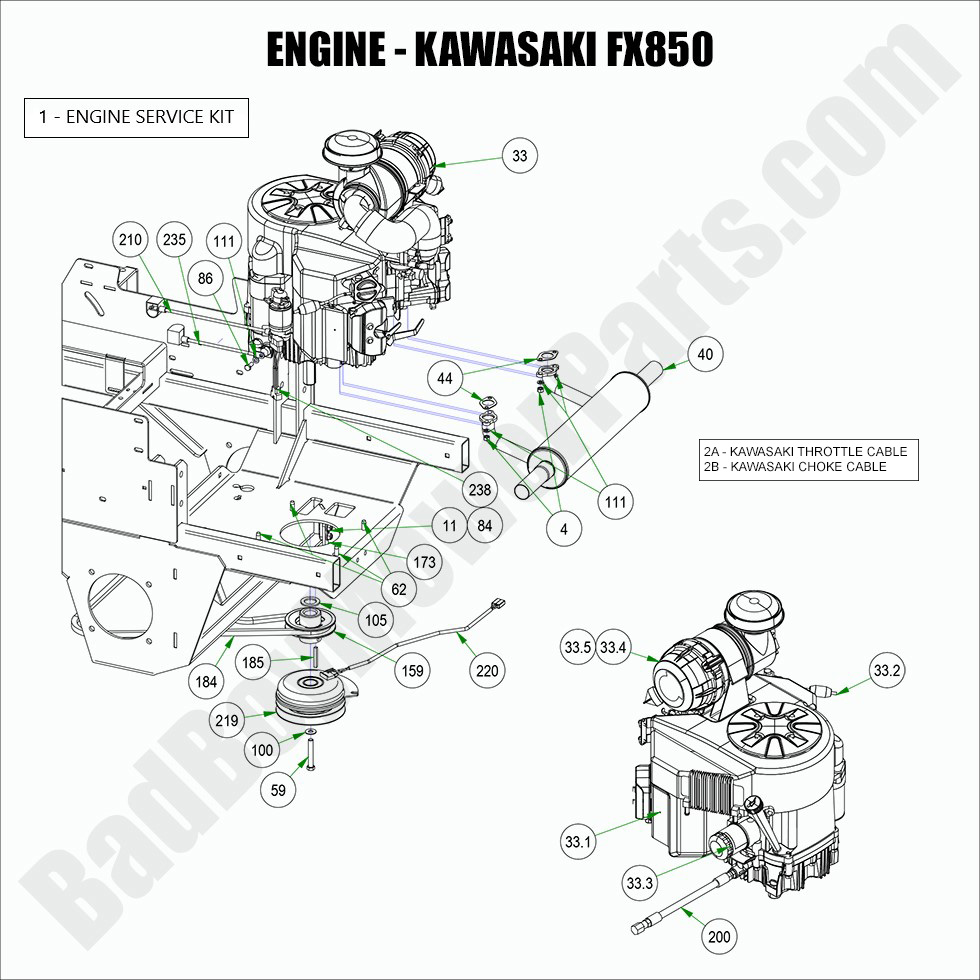

2022 Rebel - Engine - Kawasaki FX850

2022 Rebel - Engine - Kawasaki FX850

The 2022 Rebel Engine - Kawasaki FX850 is designed for high performance and efficiency, delivering the power needed for tough mowing tasks. Keeping it in top condition is essential, and our Bad Boy Mower Part diagrams make it easy to find and install the right components. At BadBoyMowerParts.com, we offer a full range of Bad Boy Mower Parts, ensuring you have access to everything required for maintenance and repairs. Investing in high-quality Bad Boy Lawn Mower Parts extends the life of your engine and ensures smooth operation. With Bad Boy Parts Online, finding air filters, fuel components, and other essential parts is fast and convenient. Plus, enjoy Free Shipping On Orders Over $100, making it more affordable to keep your 2022 Rebel Engine - Kawasaki FX850 running like new. Trust our selection to provide the best parts for reliability and long-lasting performance.

Bad Boy Mower Parts Lookup

2022 Rebel - Engine - Kawasaki FX850
  Position Number SKU Product Title Price
1 063-2000-02 063-2000-02 - Kawasaki FX850 Engine Service Kit
$124.74
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
4 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
33.1 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
33.2 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
33.3 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
33.4 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
33.5 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
33 015-0031-00 015-0031-00 - Kaw Engine FX-850V-AS15R
$3395.00

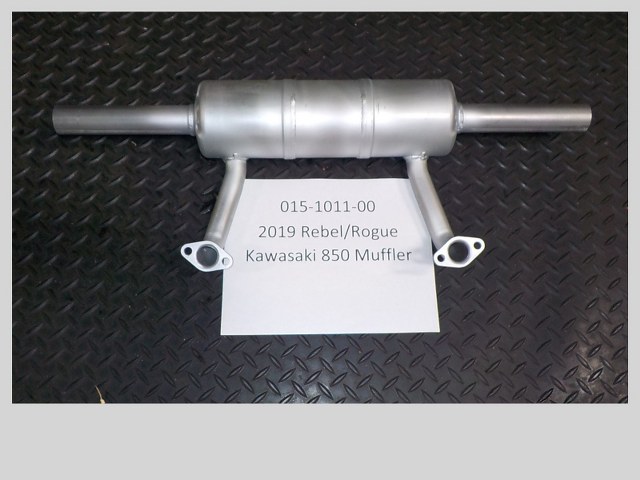

40 015-1011-00 015-1011-00 - Kawasaki FX850 Muffler for Rebel/Rebel X and Rogue
$199.00
44 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
62 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
84 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
86 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
100 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
105 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
111 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
159 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
184 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
185 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
200 051-5407-00 051-5407-00 - 12" Kawasaki Oil Drain FX850 / FX1000/ FX730
$42.58
210 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
219 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
220 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
235 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
238 086-9002-19 086-9002-19 - Wiring Harness Adaptor-All Kawasaki FX (See Models Used On For Details)
$20.29
