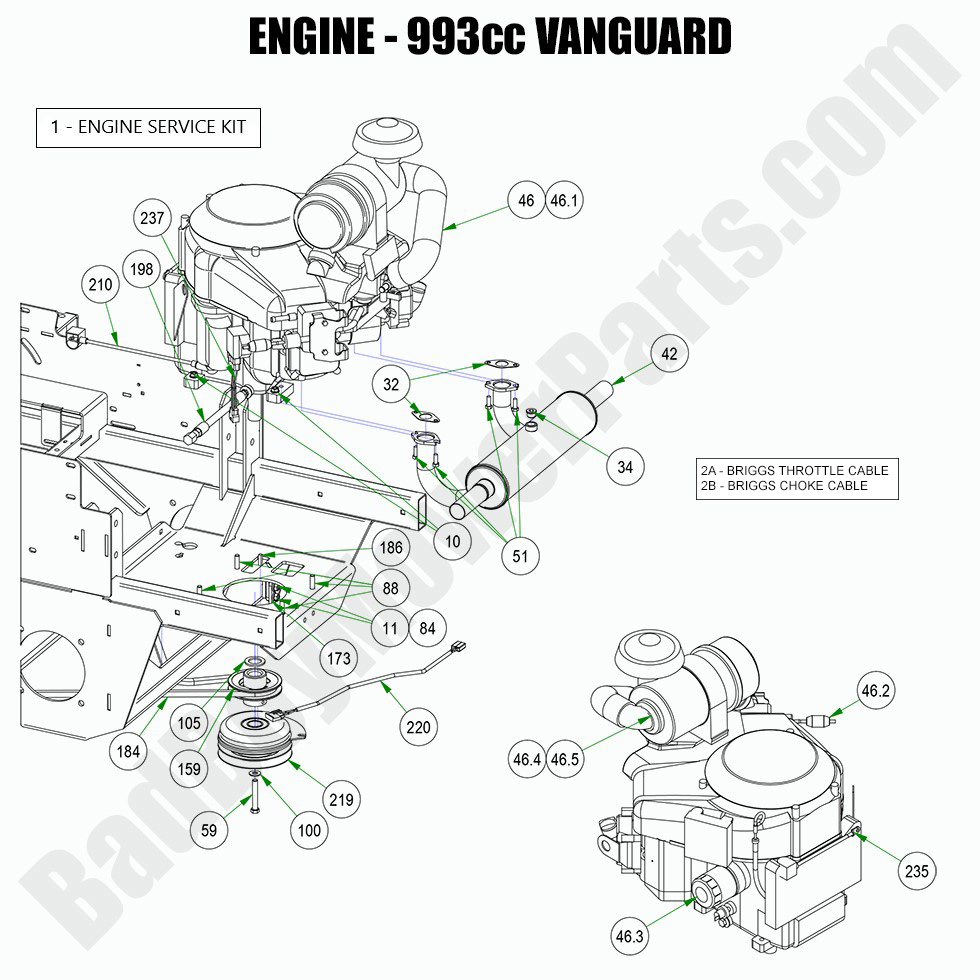

2022 Rebel - Engine - Vanguard

2022 Rebel - Engine - Vanguard

The 2022 Rebel Engine - Vanguard is known for its power, efficiency, and long-lasting performance. To ensure it stays in peak condition, our Bad Boy Mower Part diagrams help you quickly locate the necessary replacement parts. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts, including filters, belts, and other essential engine components. Using high-quality Bad Boy Lawn Mower Parts ensures that your engine operates smoothly and efficiently. With access to Bad Boy Parts Online, finding and ordering engine parts has never been easier. Plus, we offer Free Shipping On Orders Over $100, allowing you to stock up on all the maintenance essentials without additional costs. Whether you need minor replacements or a full engine service, our inventory is designed to keep your 2022 Rebel Engine - Vanguard running at its best for years to come.

Bad Boy Mower Parts Lookup

2022 Rebel - Engine - Vanguard
  Position Number SKU Product Title Price
1 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc (Non-EFI Models Only) Engine Service Kit
$127.15
2A 055-8022-00 055-8022-00 - Throttle Cable 35hp Kawasaki (NON-EFI) and 36 Vanguard Engines (NON-EFI) 2019-2025 Rebel & Rogue
$39.03
2B 054-8019-00 054-8019-00 - Choke Cable For 2019-2025 36HP Vanguard and FX1000 Engines
$26.54
10 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
32 015-0025-00 015-0025-00 - Exhaust Gasket for Vanguard (obsolete)
use part #015-2708-00
$16.04
34 015-0050-01 015-0050-01 - O2 Bung Plug 12mm x 1.25
$9.89
42 015-1014-00 015-1014-00 - Exhaust (See Models Used On For Details)
$199.00
46.1 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
46.2 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
46.3 063-8018-00 063-8018-00 - Oil Filter
$21.39
46.4 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
46.5 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
46 015-3600-00 015-3600-00 - 36hp Briggs Vanguard Engine
$4379.44
51 018-0017-00 018-0017-00 - Vanguard Exhaust Torx Bolt
$5.82
84 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
88 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
100 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
105 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
159 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
184 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
186 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
198 051-5402-00 051-5402-00 - 14mm Oil Drain Hose-36hp Vanguard
$31.22
210 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
219 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
220 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
235 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
237 086-9001-19 086-9001-19 - Harness Adaptor-36 Vanguard Carb 2019-2022 Rebel & Renegade Gas
$53.49
