2022 Rebel - Engine - Kawasaki FX1000

2022 Rebel - Engine - Kawasaki FX1000

The 2022 Rebel Engine - Kawasaki FX1000 delivers unmatched power and efficiency, making it a top choice for commercial-grade mowing. Keeping this high-performance engine in optimal condition is easy with our Bad Boy Mower Part diagrams, which simplify part identification and installation. At BadBoyMowerParts.com, we supply a complete selection of Bad Boy Mower Parts, ensuring your engine runs at peak efficiency. Using genuine Bad Boy Lawn Mower Parts helps extend the engine’s lifespan and maintain top-tier performance. With access to Bad Boy Parts Online, finding filters, belts, and other engine components is hassle-free. Plus, take advantage of Free Shipping On Orders Over $100, saving you money on essential maintenance parts. Whether you're performing routine servicing or replacing worn components, trust our high-quality inventory to keep your 2022 Rebel Engine - Kawasaki FX1000 running strong.

Bad Boy Mower Parts Lookup

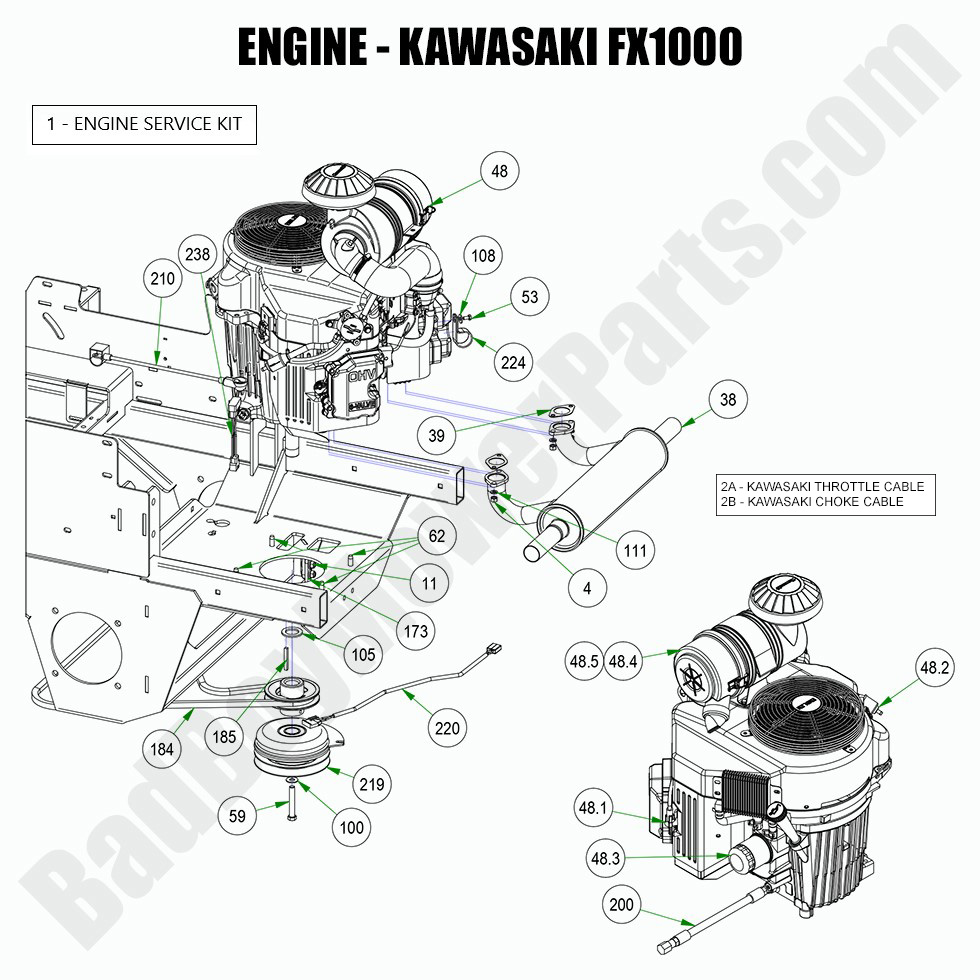

2022 Rebel - Engine - Kawasaki FX1000
  Position Number SKU Product Title Price
1 063-2000-20 063-2000-20 - Kawasaki FX1000 Engine Service Kit
$123.99
2A 055-8022-00 055-8022-00 - Throttle Cable 35hp Kawasaki (NON-EFI) and 36 Vanguard Engines (NON-EFI) 2019-2025 Rebel & Rogue
$39.03
2B 054-8019-00 054-8019-00 - Choke Cable For 2019-2025 36HP Vanguard and FX1000 Engines
$26.54
4 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
38 015-1010-00 015-1010-00 - Muffler for Kawasaki FX1000V/EFI Engines (See Models Used On For Details)
$199.00
39 015-1010-01 015-1010-01 - Exhaust Gasket for FX1000V Kawasaki
$8.79
48.1 515-0011-00 515-0011-00 Spark Plug for FX1000
$5.99
48.2 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
48.3 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
48.4 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
48.5 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
48 015-9911-00 015-9911-00 - 2019 - 2024 FX1000V Kawasaki Engine
$2799.99
53 018-0025-00 018-0025-00 - M6-1.0x12mm Bolt
$2.99
62 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
100 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
105 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
108 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
111 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99

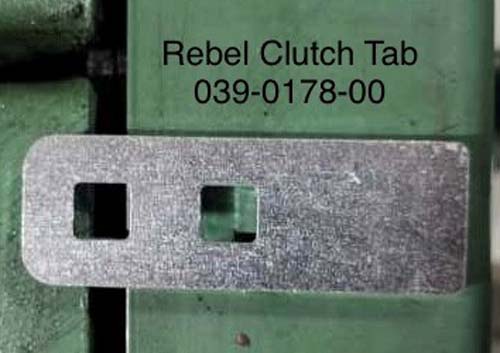

173 039-0178-00 039-0178-00 - Rebel Clutch Stop Tab
$14.97
184 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
185 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
200 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
210 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
219 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
224 072-5000-00 072-5000-00 - Diesel Hydraulic Hose Clamp
$7.28
238 086-9002-19 086-9002-19 - Wiring Harness Adaptor-All Kawasaki FX (See Models Used On For Details)
$20.29
