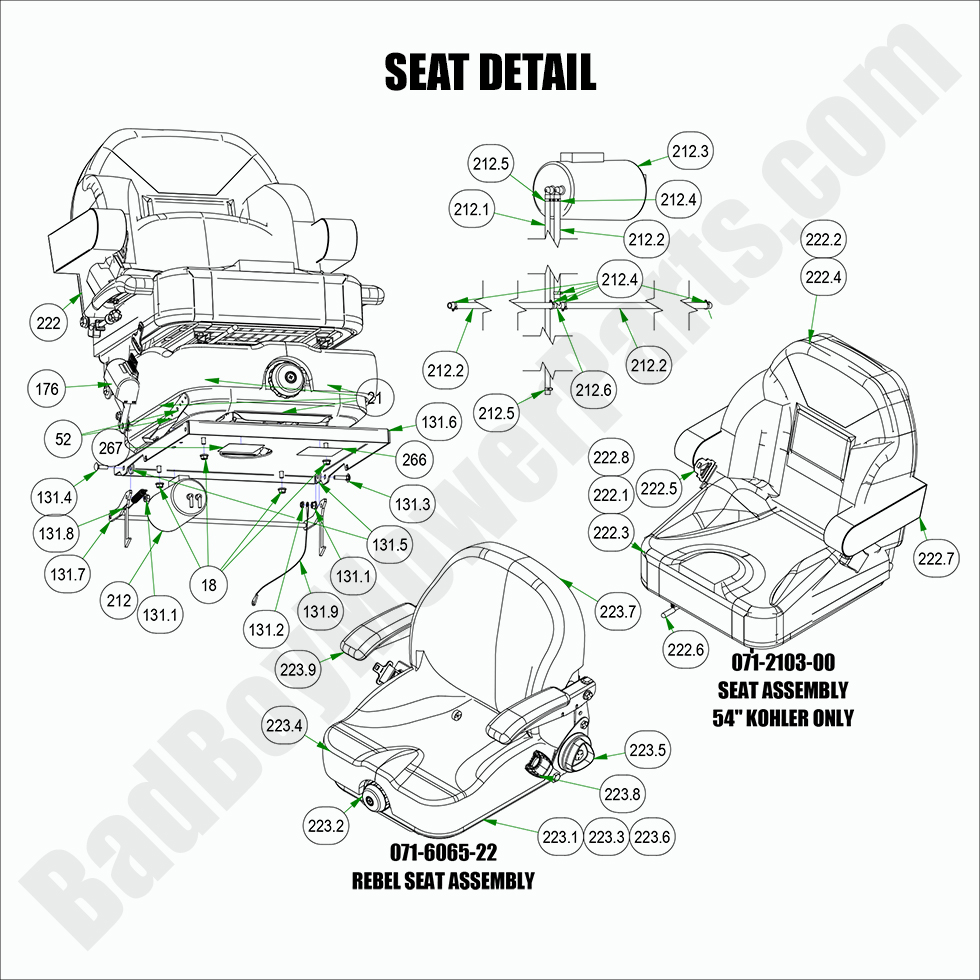

2022 Rebel - Seat Detail

2022 Rebel - Seat Detail

The 2022 Rebel Seat Detail focuses on comfort and durability, ensuring smooth operation even during long mowing sessions. Over time, seats can wear down, but our Bad Boy Mower Part diagrams make it easy to identify the right replacement parts. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including premium seat cushions, brackets, and mounting hardware. Upgrading with top-tier Bad Boy Lawn Mower Parts ensures comfort and support while extending the lifespan of your seat. With Bad Boy Parts Online, finding the perfect seat components is simple and hassle-free. Plus, enjoy Free Shipping On Orders Over $100, making it more affordable to replace or upgrade your seat. Whether you need a new cushion, armrests, or a complete seat assembly, trust our superior-quality parts to keep your 2022 Rebel Seat Detail in top shape for the best mowing experience.

Bad Boy Mower Parts Lookup

2022 Rebel - Seat Detail
  Position Number SKU Product Title Price
18 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
52 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
131.2 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
131.3 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
131.4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
131.5 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
131.6 026-2019-21 026-2019-21 - R-Series Seat Plate Assembly
$149.99
131.7 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
131.8 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
131.9 064-8081-00 064-8081-00 - Seat Cable
$15.60
176 039-2156-00 039-2156-00 - Seat stop
$14.19
212.1 051-2025-66 051-2025-66 - 66" 3/16 Vinyl EPA Line
$13.26
212.2 051-8072-38 051-8072-38 - 38" 1/4 Vinyl Tubing
$28.39
212.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
212.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
212.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
212.6 073-8068-00 073-8068-00 - Fuel Line T
$9.70
212 067-0020-19 067-0020-19 - EPA Cannister Assembly Rebel/Renegade Gas/Rogue (See Models Used On For Details)
$47.62
222.1 071-2103-01 071-2103-01 - Seat Cover for 071-2103-00
$145.95
222.2 071-2103-02 071-2103-02 - Back Cover for 071-2103-00
$131.37
222.3 071-2103-03 071-2103-03 - Foam Molded Seat for the 071-2103-00
$96.29
222.4 071-2103-04 071-2103-04 - Foam Molded Back for the 071-2103-00
$96.29
222.5 071-2103-05 071-2103-05 - Seat Belt Set 071-2103-00
$106.14
222.6 071-5015-00 071-5015-00 - Seat Rails
$93.69

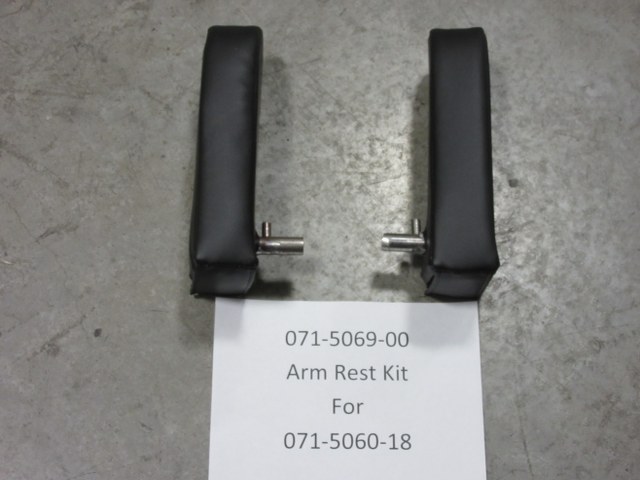

222.7 071-5069-00 071-5069-00 - Arm Rest Kit for 071-5060-18
$158.99
222.8 071-5070-00 071-5070-00 - Seat Switch for 071-5060-18
$56.77
222 071-2103-00 071-2103-00 - 2022 - 2023 Rebel Seat
$599.99
223.1 071-6065-06 071-6065-06 - Tracks for 071-6065-00 (See Models Used On For Details)
$99.37
223.2 071-6065-05 071-6065-05 - Weight Adjustment Knob for 071-6065-00
$32.09
223.3 071-6065-13 071-6065-13 Bellows w/Hardware for 071-6065-22
$64.19
223.4 071-6065-16 071-6065-16 Cushion Cover Kit for I3M - Logo for 071-6065-22
$153.99
223.5 071-6065-10 071-6065-10 - Recliner Adjustment Knob
$32.09
223.6 071-6065-07 071-6065-07 - Seat Switch for 071-6065-00
$21.28
223.7 071-6065-15 071-6065-15 Back Cover for I3M - Recl - Logos for 071-6065-22
$199.99
223.8 071-6065-14 071-6065-14 - 2" Retractable Belt Kit w/Spacers for 07
$119.99
223.9 071-6065-04 071-6065-04 - Arm Kit for 071-6065-00
$136.99
223 071-6065-22 071-6065-22 - Suspension Seat with Seatbelt (See Models Used On For Details) (obsolete)
use part #071-6065-25
$829.99
266 091-4038-00 091-4038-00 - Control Adj. Control Rod Decal
$6.04
267 091-4039-00 091-4039-00 - Control Adj. Control Dampener Decal
$6.04
