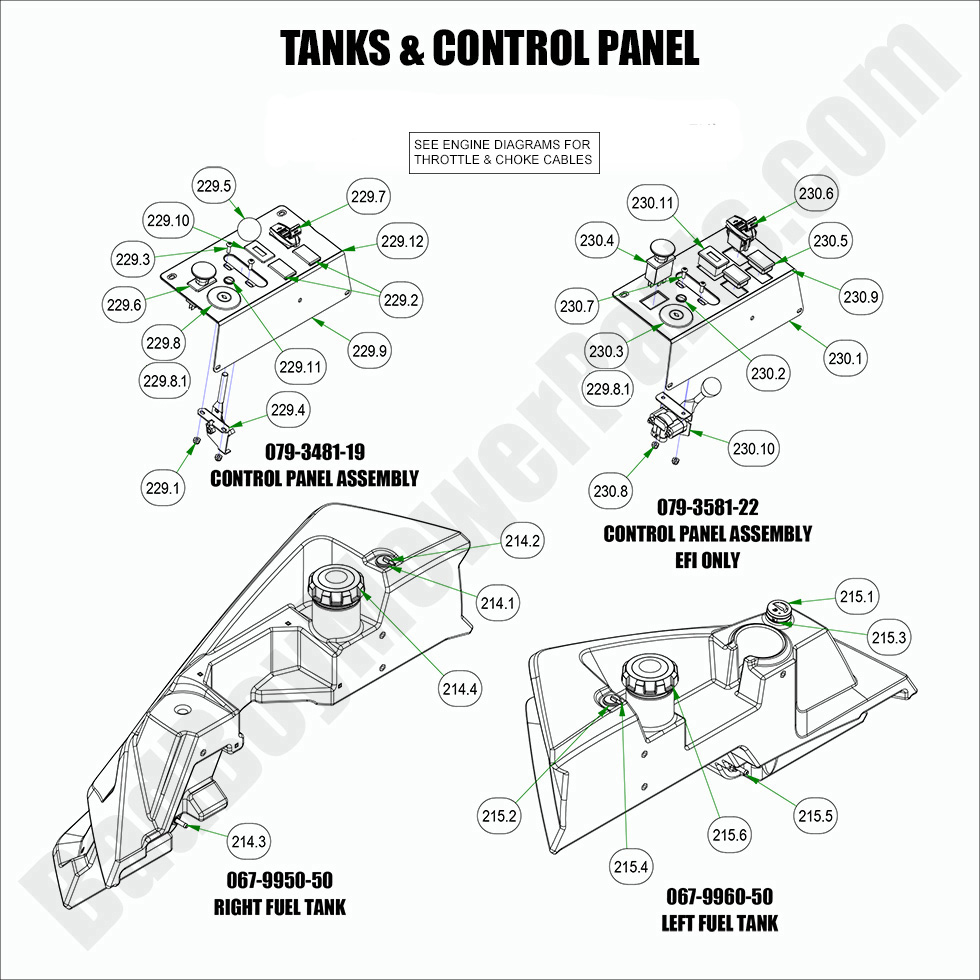

2022 Rebel - Tanks and Control Panel

2022 Rebel - Tanks and Control Panel

The 2022 Rebel Tanks and Control Panel system is essential for managing fuel and mower functions efficiently. If you need to replace a fuel tank, control switches, or wiring components, our Bad Boy Mower Part diagrams provide clear guidance for easy installation. At BadBoyMowerParts.com, we offer a full range of Bad Boy Mower Parts, ensuring that your mower operates smoothly. Using high-quality Bad Boy Lawn Mower Parts enhances durability and performance, preventing unexpected breakdowns. Shopping for Bad Boy Parts Online is hassle-free, with an organized catalog for finding the right parts quickly. Plus, with Free Shipping On Orders Over $100, maintaining your fuel and control systems is more affordable. Whether you need a fuel gauge, control switch, or replacement hoses, trust our superior selection to keep your 2022 Rebel Tanks and Control Panel in peak condition.

Bad Boy Mower Parts Lookup

2022 Rebel - Tanks and Control Panel
  Position Number SKU Product Title Price
1 079-3481-19 079-3481-19 - Rebel/Rogue Control Panel Assy (See Models Used On for Detail)
$109.00
2 079-3581-22 079-3581-22 - Drive by Wire Control Panel (See Models Used On For Detail)
$199.99
3 067-9950-50 067-9950-50 - Rebel/Rogue/Renegade Right Fuel Tank
$341.99
4 067-9960-50 067-9960-50 - Rebel/Rogue/Renegade Left Fuel Tank
$262.99
214.1 067-6054-00 067-6054-00 - Fuel Gauge Grommet
$8.01
214.2 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
214.3 067-9901-00 067-9901-00 - Bulkhead Fitting for Fuel Tanks 2019-2025 Rebel, Renegade & Rogue
$22.71
214.4 067-9904-00 067-9904-00 - Fuel Cap for Fuel Tank 2019-2025 Rebel, Renegade Gas & Rogue
$28.39
215.1 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
215.3 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
229.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
229.2 018-1040-00 018-1040-00 - Light Plug
$2.99
229.3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
229.4 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
229.5 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
229.6 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
229.7 077-2076-00 077-2076-00 - USB Port
$46.84
229.8.1 042-9000-00 042-9000-00 - Ignition Key
$4.06
229.8 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
229.9 079-3481-00 079-3481-00 - Control Panel
$10.99
229.10 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
229.11 089-1000-00 089-1000-00 - Oil Light
$12.63
229.12 091-4009-22 091-4009-22 2022-2024 Rebel/Rogue Control Panel Decal
$10.99
230.11 083-4050-00 083-4050-00 - Tachometer For Briggs/Kohler/Yamaha EFI Units (See Models Used On For Details)
$80.24
