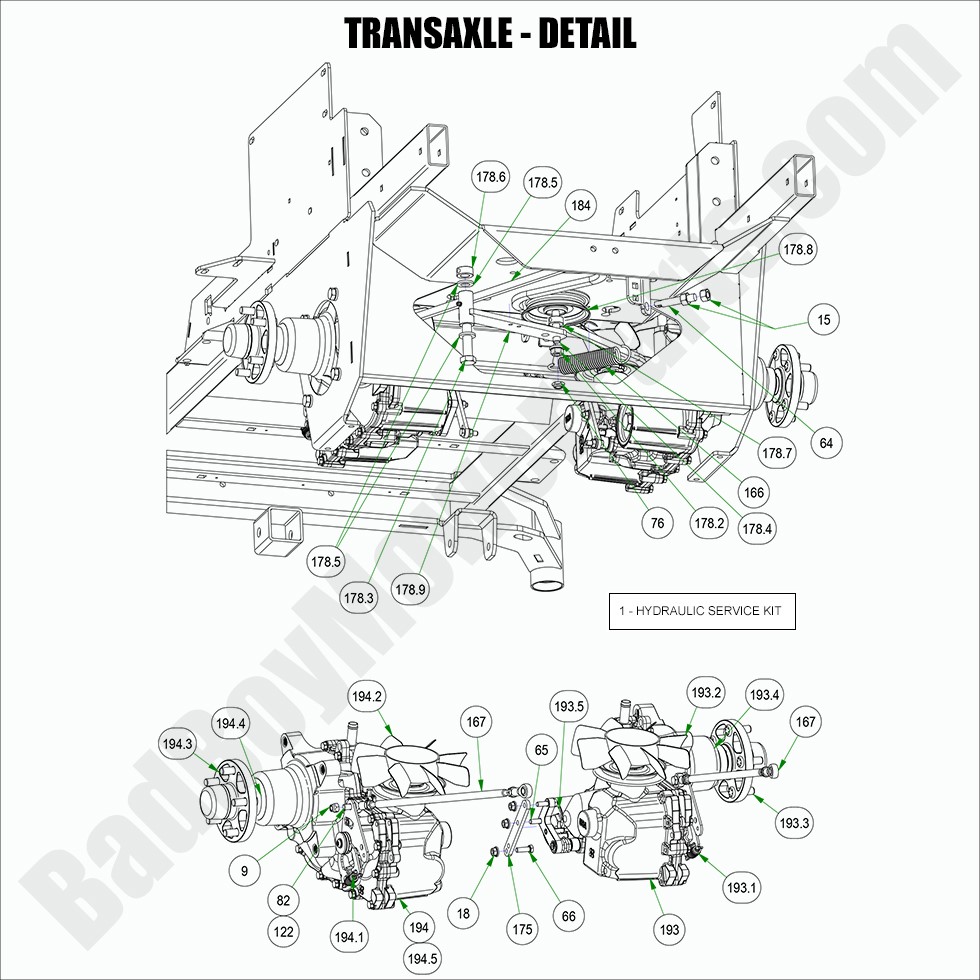

2022 Rebel - Transaxle - Detail

2022 Rebel - Transaxle - Detail

The 2022 Rebel Transaxle - Detail system is a critical component that ensures smooth and powerful transmission performance. Over time, parts may wear out, but our Bad Boy Mower Part diagrams make it easy to locate the exact replacement needed. At BadBoyMowerParts.com, we stock an extensive range of Bad Boy Mower Parts, including gears, seals, and bearings designed for durability. Using premium Bad Boy Lawn Mower Parts extends the life of your transaxle, keeping your mower running efficiently. With access to Bad Boy Parts Online, finding and ordering the right components is quick and straightforward. Plus, take advantage of Free Shipping On Orders Over $100, making maintenance and repairs more cost-effective. Whether you need minor replacements or a complete overhaul, trust our high-quality selection to keep your 2022 Rebel Transaxle - Detail in peak condition.

Bad Boy Mower Parts Lookup

2022 Rebel - Transaxle - Detail
  Position Number SKU Product Title Price
1 085-4050-00 085-4050-00 - Hydro-Gear ZT4400 Hydro Service Kit
$124.44
9 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
15 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
18 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
64 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
65 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
66 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99

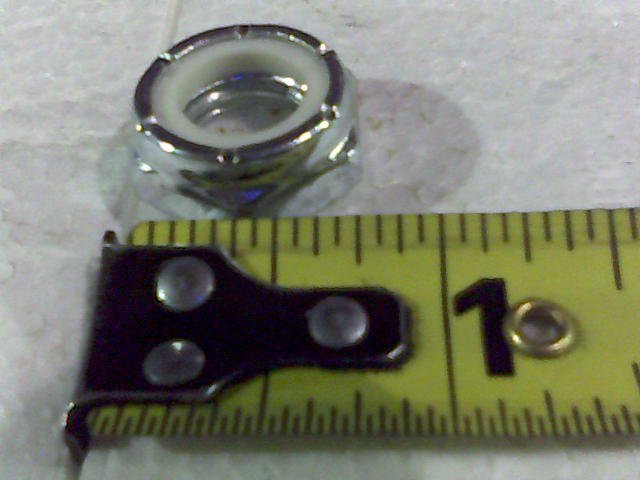

76 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
82 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
122 025-0036-00 025-0036-00 - Drive Arm Transaxle Spacer
$5.49
166 034-9050-00 034-9050-00 - Pump Idler Spring - Big Diameter
$17.11
167 035-0003-00 035-0003-00 - 2019 - 2022 Rebel Push Rod Assembly
$42.58

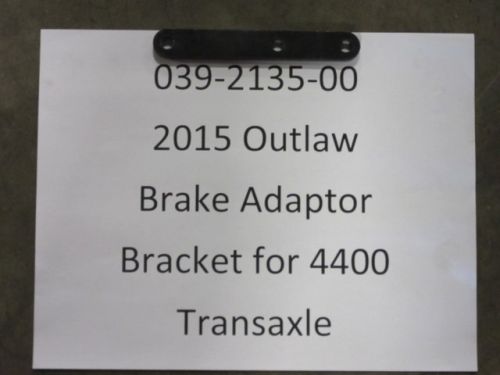

175 039-2135-00 039-2135-00 - Brake Adapter Bracket - 4400 Transaxle (See Models Used On)
$7.69
178.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99

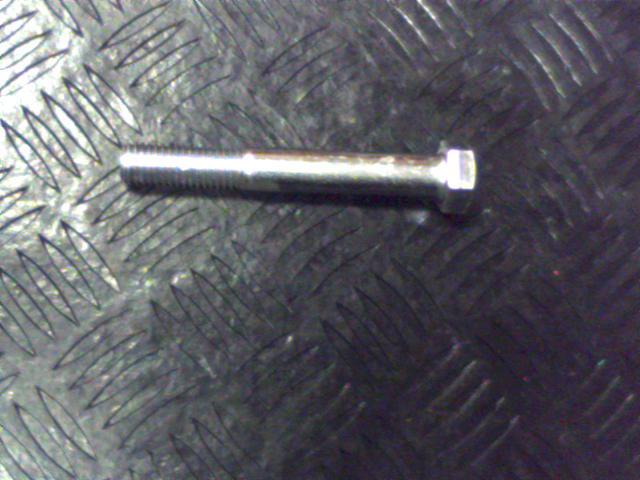

178.3 018-5309-00 018-5309-00 - 5/8-11 x 4-1/2 Hex Bolt
$2.99
178.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
178.5 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
178.6 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
178.7 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
178.8 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
178.9 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53

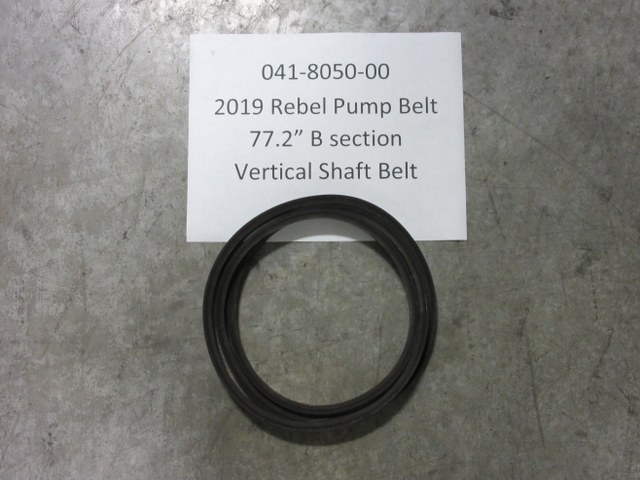

184 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
193.1 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89

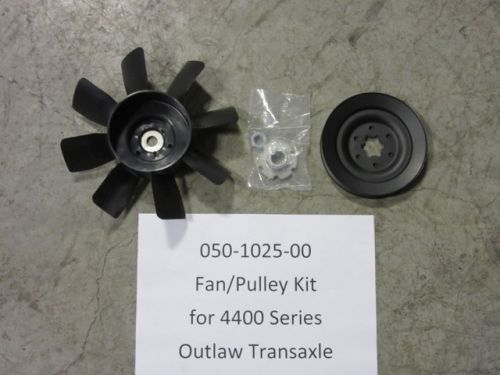

193.2 050-1025-00 050-1025-00 - Fan/Pulley Kit For ZT-4400 Transaxle (See Models Used On For Details)
$109.46

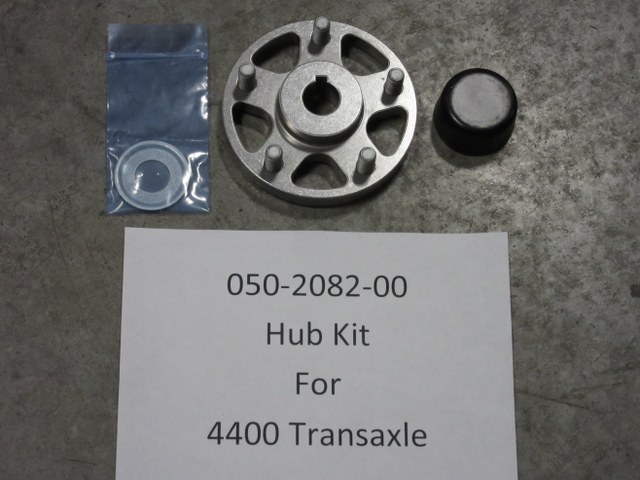

193.3 050-2082-00 050-2082-00 - Hub for 4400 Transaxle
$156.99

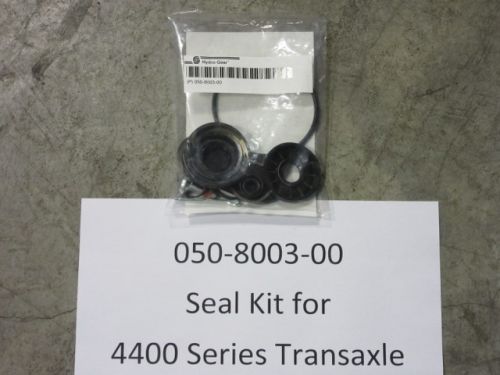

193.4 050-8003-00 050-8003-00 - Seal Kit for 4400 Series Outlaw Transaxle
$106.48
193.5 063-1070-00 063-1070-00 - Hydraulic Filter for ZT4400 Transaxle
$36.37

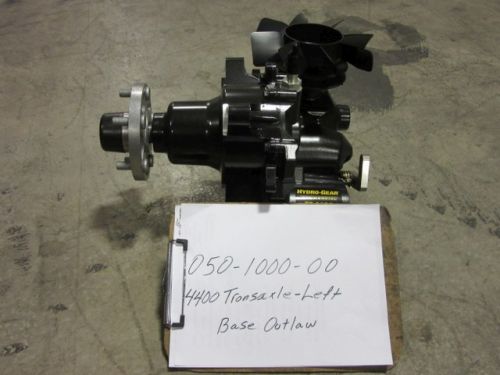

193 050-1000-00 050-1000-00 - 4400 Transaxle-Left
$909.99

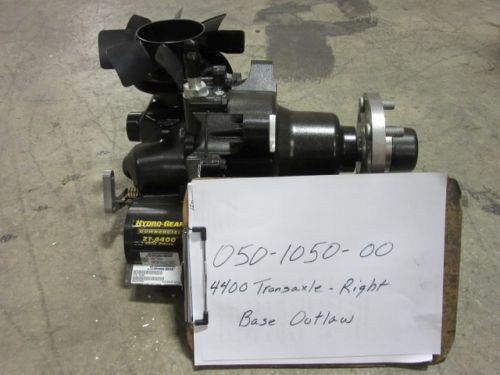

194 050-1050-00 050-1050-00 - 4400 Transaxle - Right
$909.99
