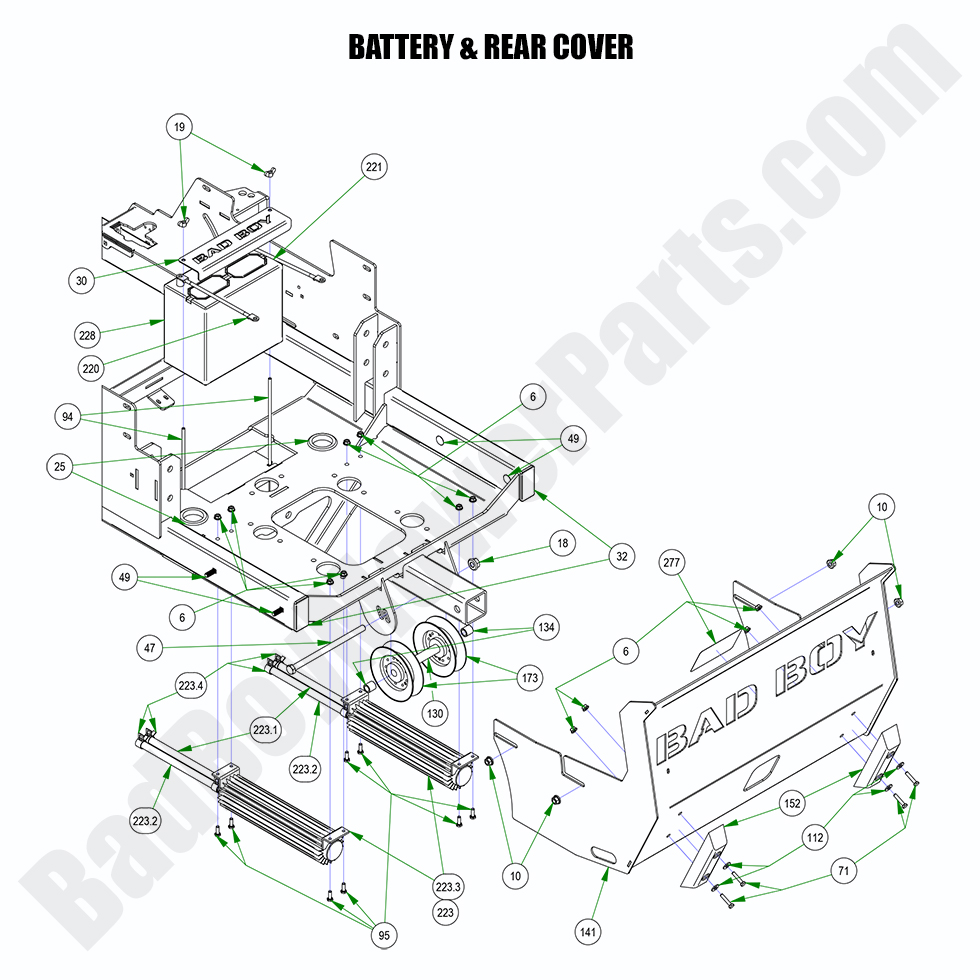

2022 Renegade - Diesel - Battery & Rear Cover

2022 Renegade - Diesel - Battery & Rear Cover

Keep your 2022 Renegade - Diesel in top shape by replacing the Battery & Rear Cover with quality parts from BadBoyMowerParts.com. Our site provides an array of Bad Boy Mower Parts, ensuring you find the right parts for your mower. With easy access to Bad Boy Mower Part diagrams, identifying the right components for your battery or rear cover replacement is simple. Whether you're looking for Bad Boy Lawn Mower Parts for basic maintenance or a more comprehensive overhaul, our site makes it easy to find what you need. Bad Boy Parts Online offers a convenient way to browse and order the necessary items without leaving your home. Plus, with Free Shipping On Orders Over $100, replacing your 2022 Renegade - Diesel Battery & Rear Cover becomes even more affordable. Shop with us for all your 2022 Renegade - Diesel parts and accessories.

Bad Boy Mower Parts Lookup

2022 Renegade - Diesel - Battery & Rear Cover
  Position Number SKU Product Title Price
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
19 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
25 014-2052-00 014-2052-00 - 2 x .25 Rubber Grommet (See Models Used On For Details)
$12.83
30 014-5063-00 014-5063-00 - Battery Hold Down Cover 2019-2025 Renegade
$10.99
32 014-9003-00 014-9003-00 - 1 1/2 x 3 Frame Plug
$2.99
47 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
49 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
71 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
94 018-8051-00 018-8051-00 - 1/4-20 X 9 Carriage Bolts Zinc
$2.99
95 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
112 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
130 025-0028-00 025-0028-00 - Pulley Spacer.75 x 4.375 x.5 ID 2019-2022 Renegade
$9.61
134 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
141 026-2224-00 026-2224-00 - Rear Side Cover 2019-2022 Renegade
$199.99
152 029-7038-00 029-7038-00 - 8 Bumper
$28.32
173 033-7027-00 033-7027-00 - Horizontal Rear V Pulley
$46.84
220 064-4000-00 064-4000-00 - Red Battery Cable (See Models Used On For Details)
$23.53
221 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
223.1 051-8063-14 051-8063-14 - 14" 3/8 Clear Hose No Clamp
$6.04
223.2 051-8063-24 051-8063-24 - 24" 3/8 Clear Hose No Clamps
$12.48
223.3 067-8052-00 067-8052-00 - 2019-2022 12" Oil Cooler With Fittings (See Models Used On For Details)
$62.46
223.4 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
223 067-8052-19 067-8052-19 - Renegade Oil Cooler-Assy
$70.97
277 091-4032-00 091-4032-00 - 2019-2022 Renegade Pump Belt Route Decal
$7.25
