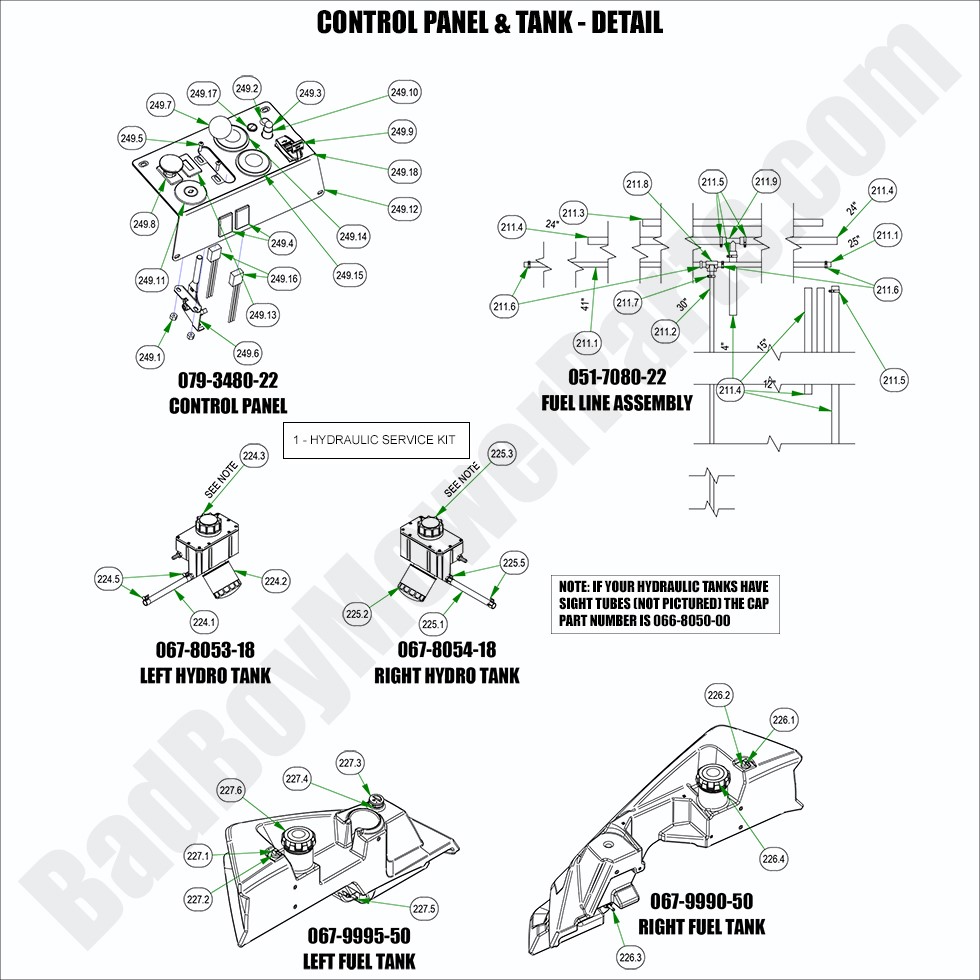

2022 Renegade - Diesel - Control Panel & Fuel Tank - Detail

2022 Renegade - Diesel - Control Panel & Fuel Tank - Detail

For precise repairs and maintenance on the 2022 Renegade - Diesel Control Panel & Fuel Tank, turn to BadBoyMowerParts.com for reliable Bad Boy Mower Parts. We provide detailed Bad Boy Mower Part diagrams, which make it easy to locate and replace components like the control panel, switches, or fuel tank. Whether you're upgrading or replacing worn-out parts, our selection of Bad Boy Lawn Mower Parts ensures compatibility and high performance. With Bad Boy Parts Online, you can browse all available parts for your 2022 Renegade - Diesel and complete your project in no time. Plus, enjoy the added benefit of Free Shipping On Orders Over $100, ensuring you get everything you need without extra shipping costs. Visit our website for all the detailed parts and diagrams to get your control panel and fuel tank in top condition.

Bad Boy Mower Parts Lookup

2022 Renegade - Diesel - Control Panel & Fuel Tank - Detail
  Position Number SKU Product Title Price
1C 067-8053-18 067-8053-18 - LH Renegade Hydro Tank Assy
$201.96
1D 067-8054-18 067-8054-18 - RH Renegade Hydro Tank Assy
$201.96
1E 067-9995-50 067-9995-50 - Right Outlaw Renegade Diesel Fuel Tank
$261.99
1F 067-9990-50 067-9990-50 - Left Outlaw Renegade Diesel Fuel Tank
$259.99
1G 066-8050-00 066-8050-00 - Hydraulic Tank Cap w/Dipstick (See Models Used On For Details)
$31.22
1 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
211.1 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
211.2 051-8068-00 051-8068-00 - 3/16 Fuel Line
$3.59
211.3 051-8069-00 051-8069-00 - 5/16 Clear Hose (Priced Per Foot)
$2.99
211.4 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
211.5 072-8068-00 072-8068-00 - 5/16 Fuel Line Clamp
$3.62
211.6 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
211.7 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
211.8 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
211.9 073-8070-00 073-8070-00 - 5/16 x 5/16 x 5/16 Fuel Line T
$7.69
224.1 051-8064-21 051-8064-21 - 21" 1/2 Braided Hose
$11.34
224.2 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
224.3 066-8050-22 066-8050-22 - Cap With Dip Stick
$29.95
224.5 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
226.1 024-9903-00 024-9903-00 - 90 Degree Elbow Fitting for 2019-2024 Renegade Diesel Fuel Tank
$8.79
226.2 032-9902-00 032-9902-00 - Nitrile Bushing for 2019-2024 Renegade Diesel Fuel Tank
$4.39
226.3 067-9901-00 067-9901-00 - Bulkhead Fitting for Fuel Tanks 2019-2025 Rebel, Renegade & Rogue
$22.71
226.4 067-9905-00 067-9905-00 - Diesel Fuel Tank Cap for 2019 - 2024 Fuel Tank
$32.09
227.3 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
227.4 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
249.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
249.2 014-3010-00 014-3010-00 - 5/8 Round Insert
$2.99
249.3 014-6000-00 014-6000-00 - Start Switch Boot - Diesel
$6.59
249.4 018-1040-00 018-1040-00 - Light Plug
$2.99
249.5 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
249.6 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
249.7 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
249.8 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
249.9 077-2076-00 077-2076-00 - USB Port
$46.84
249.10 077-6000-00 077-6000-00 - Momentary Start Switch Preheat Button for Diesel
$21.39
249.11 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
249.12 079-3480-00 079-3480-00 - Control Panel
$10.99
249.13 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
249.14 086-7000-00 086-7000-00 - 2" Oil Pressure Gauge (See Models Used On For Details)
$100.71
249.15 086-7001-00 086-7001-00 - 2" Water Temperature Gauge (See Models Used On For Details)
$100.71

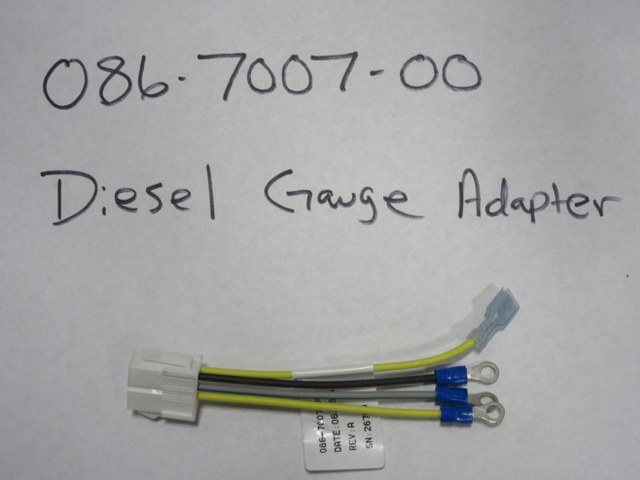

249.16 086-7007-00 086-7007-00 - Diesel Gauge Adapter
$11.76
249.17 089-1000-00 089-1000-00 - Oil Light
$12.63
249.18 091-4016-22 091-4016-22 - 2022 Renegade(Diesel) Control Panel Deca
$10.88
