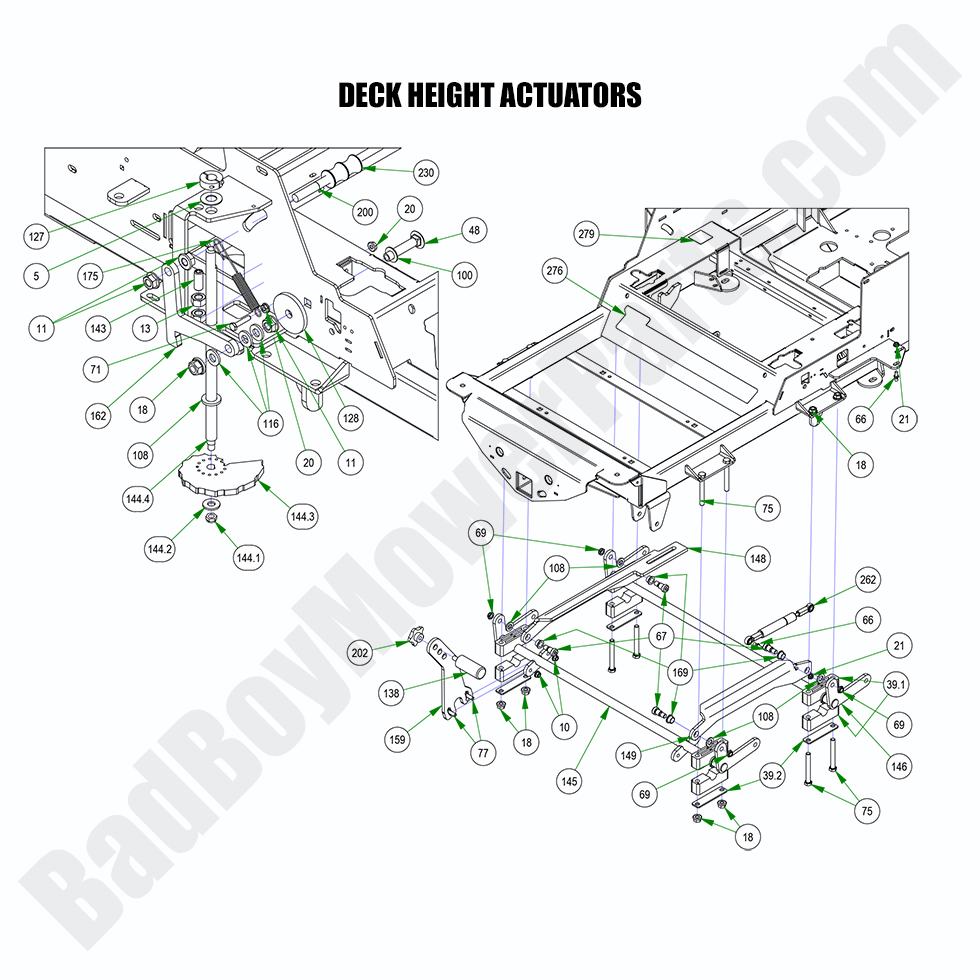

2022 Renegade - Diesel - Deck Height Actuators

2022 Renegade - Diesel - Deck Height Actuators

The 2022 Renegade - Diesel Deck Height Actuators are crucial components for adjusting your mower deck's height. At BadBoyMowerParts.com, we offer a complete selection of Bad Boy Mower Parts, ensuring you can find the actuators you need. Our site also provides Bad Boy Mower Part diagrams, making it easier to identify and replace the deck height actuators quickly. These actuators are designed specifically for the 2022 Renegade - Diesel, so you can trust their quality and fit. With Bad Boy Lawn Mower Parts available online, you’ll find everything from the actuators themselves to the other components required for deck height adjustments. Shopping for Bad Boy Parts Online offers you convenience and accuracy in selecting the correct parts. Additionally, you’ll enjoy Free Shipping On Orders Over $100, so you can get your mower operating perfectly without spending extra. Visit us for all your 2022 Renegade - Diesel deck components.

Bad Boy Mower Parts Lookup

2022 Renegade - Diesel - Deck Height Actuators
  Position Number SKU Product Title Price
5 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
20 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
39.1 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
39.2 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
48 018-0043-00 018-0043-00 - 2 1/2 X 1/2 Carriage Bolt
$3.29
66 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
67 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
69 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
71 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
75 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
77 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
100 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
108 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
116 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
127 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
128 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
138 026-0026-00 026-0026-00 - Knurled Foot Pedal
$39.03
143 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
144.1 018-4011-00 018-4011-00 - 3/8-24 Zinc Nylon Insert Jam Locknut
$2.99
144.2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
144.3 026-1101-00 026-1101-00 - Deck Height Cam
$15.55
144.4 028-0015-00 028-0015-00 - "R" Series Dial Rod 2019-2022 Rebel, Renegade & Rogue
$17.64
145 028-0026-00 028-0026-00 - Front Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$119.41
146 028-0027-00 028-0027-00 - Rear Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$82.38
148 028-6075-22 028-6075-22 - Actuator Linkage-Right
$43.86
159 031-0003-00 031-0003-00 - Foot Lift Upright Lever
$17.11
162 031-0125-00 031-0125-00 - Deck Travel Lock Lever 2019-2022 Rebel, Renegade & Rogue
$28.39
169 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
175 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
200 044-4000-00 044-4000-00 - Locking Pin (See Models Used On)
$7.25
202 045-6044-00 045-6044-00 - Foot Pedal Knob 1/2-13
$12.48
230 069-4011-00 069-4011-00 - Travel Lock Rubber Grip
$8.79
262 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
276 091-4015-00 091-4015-00 - 2019-2023 Renegade Cooler Cover Decal
$12.48
279 091-4037-00 091-4037-00 - 2019-2022 Deck Release Decal
$8.01
