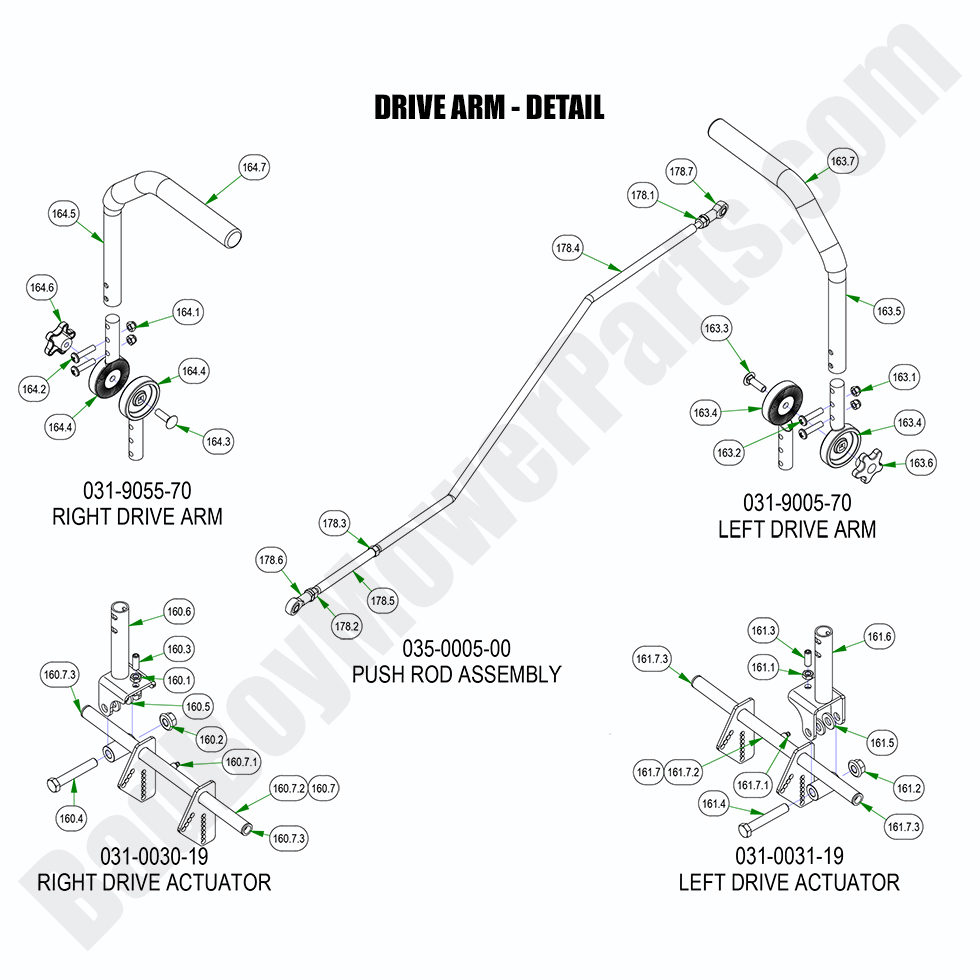

2022 Renegade - Diesel - Drive Arm - Detail

2022 Renegade - Diesel - Drive Arm - Detail

To keep your 2022 Renegade - Diesel operating at peak performance, the Drive Arm - Detail is an essential part that requires accurate replacement or repair. At BadBoyMowerParts.com, we have a full catalog of Bad Boy Mower Parts for this particular model, including detailed Bad Boy Mower Part diagrams to guide you through the replacement process. Our site makes it easy to find and purchase all necessary Bad Boy Lawn Mower Parts with just a few clicks. Whether you're a professional mechanic or a DIY enthusiast, you can confidently rely on our comprehensive selection. When you shop Bad Boy Parts Online, you’ll access the most up-to-date inventory for your mower. Plus, enjoy Free Shipping On Orders Over $100 to get your 2022 Renegade - Diesel Drive Arm - Detail delivered right to your door at no extra cost. Visit us today for all the parts you need for your mower.

Bad Boy Mower Parts Lookup

2022 Renegade - Diesel - Drive Arm - Detail
  Position Number SKU Product Title Price
1A 031-9055-70 031-9055-70 - Right Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$115.31
1B 035-0005-00 035-0005-00 - Push Rod Assembly 2019-2025 Renegade
$46.84
1C 031-9005-70 031-9005-70 - Left Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$132.68
1D 031-0030-19 031-0030-19 - R Series Right Arm Rod Assembly (See Models Used On For Details)
$85.17
1E 031-0031-19 031-0031-19 - R Series Left Arm Rod Assembly, 2019-2023 Rebel/Renegade/Rogue
$85.17
160.1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
160.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
160.3 018-0063-00 018-0063-00 - 3/8-16 X 1 Socket Set Screw Cup Point
$2.99
160.4 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
160.5 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
160.6 031-0014-00 031-0014-00 - Drive Arm Pivot 2019-2022 Rebel, Renegade & Rogue
$24.92
160.7.1 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
160.7.3 031-0032-00 031-0032-00 - Drive Arm Bushing (Plastic Flange)
$7.28
160.7 031-0030-00 031-0030-00 - Bad Boy Max Right Drive Arm Actuator (See Models Used On For Detail)
$46.78
161.7 031-0031-00 031-0031-00 - Left Drive Arm Actuator for Rebel, Renegade & Rogue
$46.78
163.1 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
163.2 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
163.3 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99

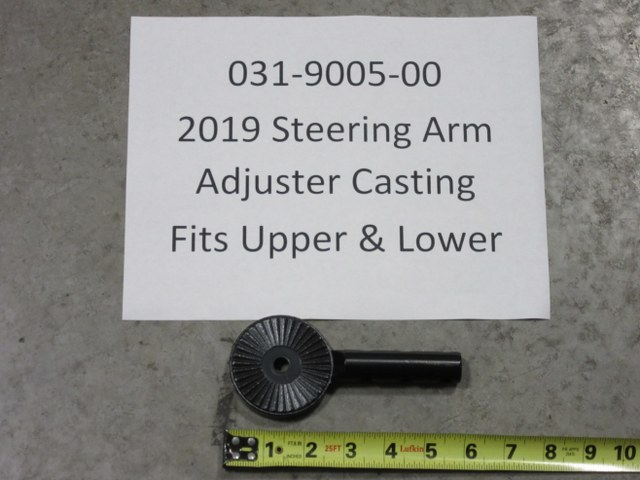

163.4 031-9005-00 031-9005-00 - Upper/Lower Steering Arm Casting 2019-2023 Rebel, Renegade & Rogue
$28.39

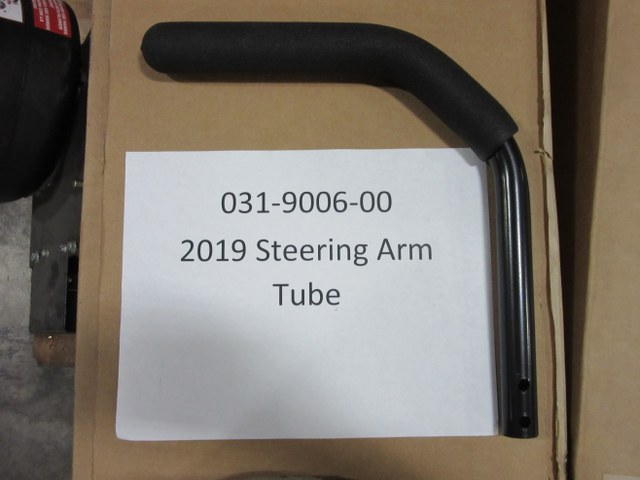

163.5 031-9006-00 031-9006-00 - Steering Arm Tube
$42.79
163.6 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
163.7 069-4010-00 069-4010-00 - Black Steering Grip
$8.12

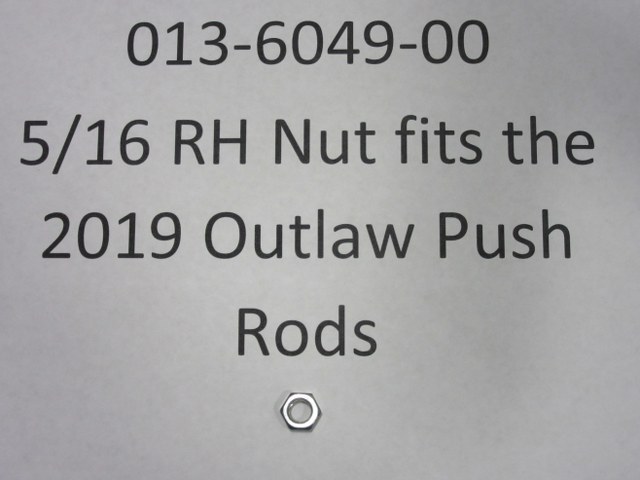

178.1 013-6049-00 013-6049-00 - 5/16 RH Nut For Push Rods
$4.39

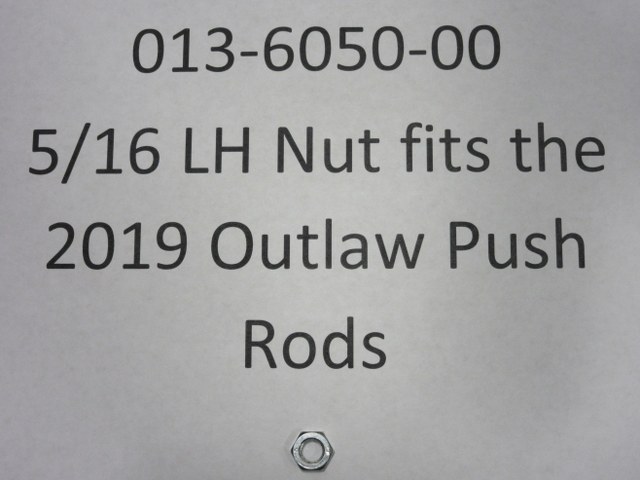

178.2 013-6050-00 013-6050-00 - 5/16 LH Nut For Push Rods
$4.39
178.3 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
178.4 035-0005-01 035-0005-01 - 2019-2022 Renegade Horizontal Push Rod (obsolete)
use part #035-0005-00
$46.84

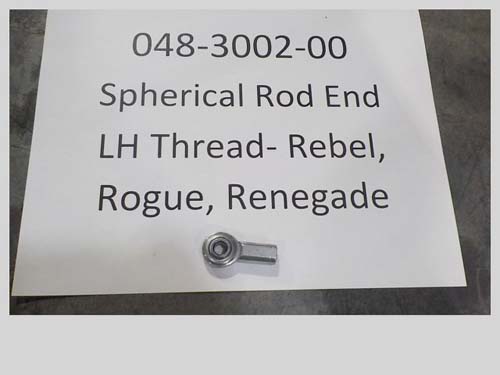

178.6 048-3002-00 048-3002-00 - Spherical Rod End - LH Thread (See Models Used On For Details)
$32.09

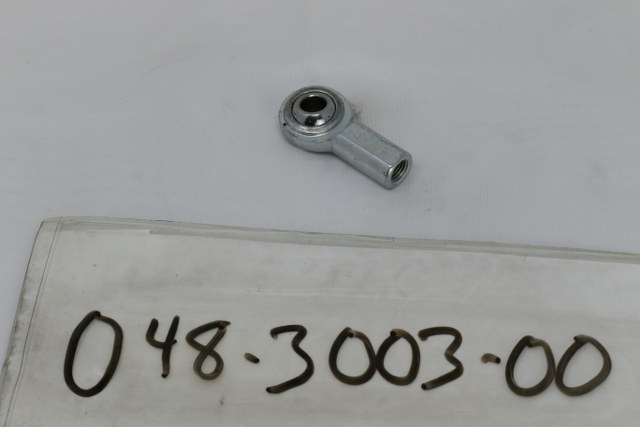

178.7 048-3003-00 048-3003-00 - Spherical Rod End - RH Thread (See Models Used On For Details)
$21.28
