2022 Renegade - Diesel - Drive Arms

2022 Renegade - Diesel - Drive Arms

Keeping your 2022 Renegade - Diesel in top shape requires durable and reliable Drive Arms. At BadBoyMowerParts.com, we offer an extensive collection of Bad Boy Mower Parts designed to fit your model, including the Drive Arms you need. With our detailed Bad Boy Mower Part diagrams, locating and replacing your Bad Boy Lawn Mower Parts is simple and straightforward. The 2022 Renegade - Diesel Drive Arms are essential for smooth operation, ensuring your mower performs at its best. Shopping for Bad Boy Parts Online gives you access to an extensive inventory of high-quality parts, and our convenient platform makes it easy to order exactly what you need. With Free Shipping On Orders Over $100, we make it even easier for you to maintain and repair your mower. Get your 2022 Renegade - Diesel Drive Arms from us and keep your mower running smoothly all season long.

Bad Boy Mower Parts Lookup

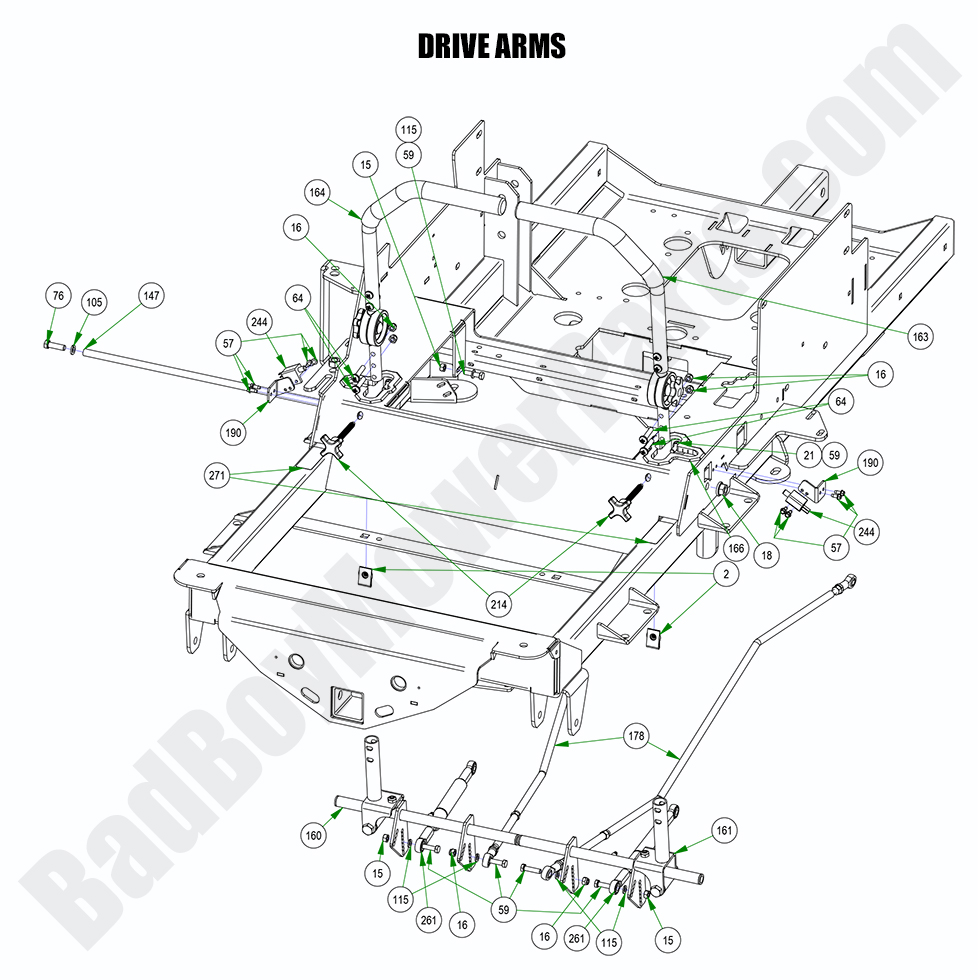

2022 Renegade - Diesel - Drive Arms
  Position Number SKU Product Title Price
2 013-0021-00 013-0021-00 - Extruded Nut 3/8"-16 3/4"
$4.39
15 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
16 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
57 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
59 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
64 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
76 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
105 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
115 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
147 028-0051-00 028-0051-00 - Steering Actuator Rod 2019-2025 Rebel, Renegade & Rogue
$23.41
160 031-0030-19 031-0030-19 - R Series Right Arm Rod Assembly (See Models Used On For Details)
$85.17
161 031-0031-19 031-0031-19 - R Series Left Arm Rod Assembly, 2019-2023 Rebel/Renegade/Rogue
$85.17
163 031-9005-70 031-9005-70 - Left Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$132.68
164 031-9055-70 031-9055-70 - Right Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$115.31
166 032-0002-00 032-0002-00 - Snap-In Bushing 2019-2022 Rebel, Renegade & Rogue
$15.55
178 035-0005-00 035-0005-00 - Push Rod Assembly 2019-2025 Renegade
$46.84
190 039-2160-00 039-2160-00 - Arm Switch Bracket (See Models Used On For More Detail)
$13.90
214 057-5800-00 057-5800-00 - Speed Limiting Knob 3/8-16X 3"
$6.41
244 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
261 087-0002-00 087-0002-00 - Steering Rod Damper With Spherical Rod Ends For Renegade/Rogue (See Models Used On For Details)
$62.46
271 091-1114-00 091-1114-00 - 2018-2022 LH/RH Steering Control Decal Roll
$15.60
