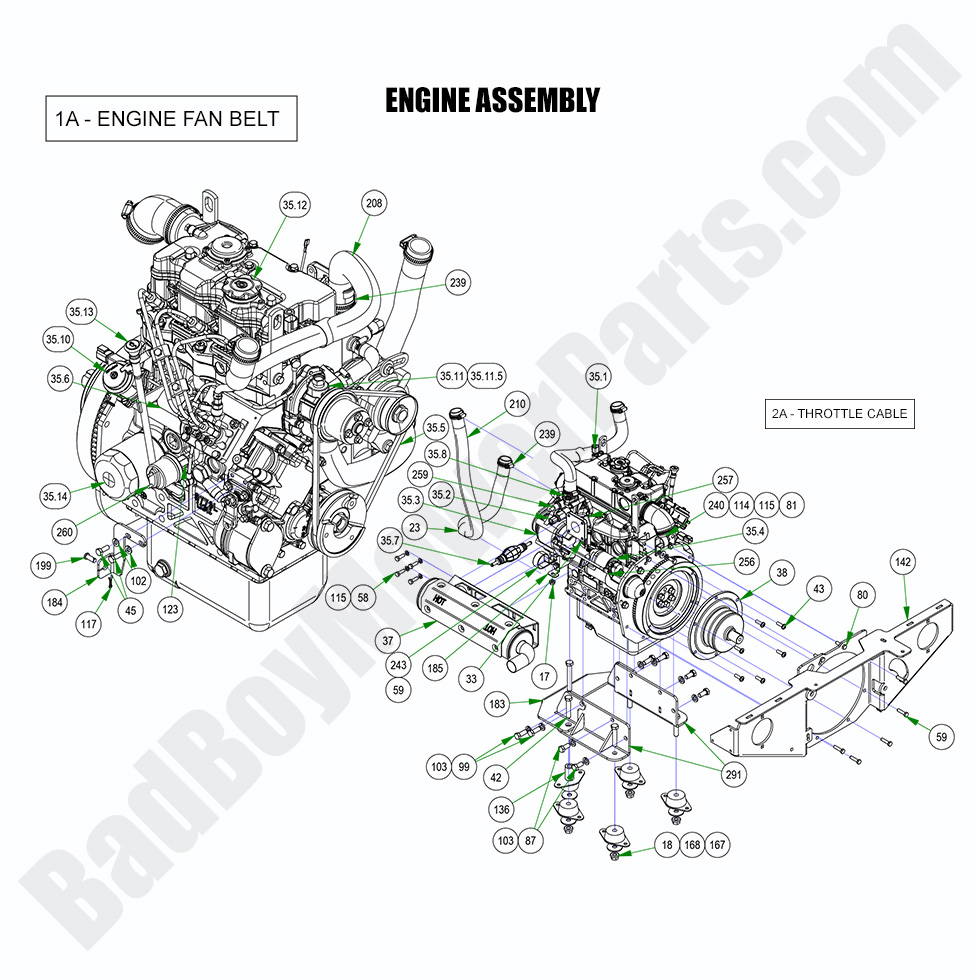

2022 Renegade - Diesel - Engine Assembly

2022 Renegade - Diesel - Engine Assembly

The 2022 Renegade - Diesel Engine Assembly is one of the most critical components of your mower, and at BadBoyMowerParts.com, we make it easy to find the right parts for any necessary repairs or replacements. Our website offers a vast selection of Bad Boy Mower Parts, including the entire engine assembly for the 2022 Renegade - Diesel. With Bad Boy Mower Part diagrams, you can quickly locate each part of the engine assembly, making your maintenance tasks simpler and more efficient. Whether you need Bad Boy Lawn Mower Parts for a complete engine overhaul or just a few replacement components, our online store has it all. Ordering Bad Boy Parts Online ensures you get the right part, and with Free Shipping On Orders Over $100, it’s easy to get what you need without extra charges. Keep your 2022 Renegade - Diesel engine running strong with our high-quality parts.

Bad Boy Mower Parts Lookup

2022 Renegade - Diesel - Engine Assembly
  Position Number SKU Product Title Price
1A 041-0010-00 041-0010-00 - Caterpillar/Perkins Fan Belt
$85.17
2A 055-8018-75 055-8018-75 - Diesel Thottle Cable ONLY
$32.09
23 014-1053-00 014-1053-00 - Plastic Mesh Hose Loom
$9.89
33 015-0010-50 015-0010-50 - 35/28 CAT Muffler Gasket
$17.02
35.1 015-0096-06 015-0096-06 - Oil Pressure Sensor for the Perkins 1100cc Diesel
$125.99
35.2 015-0096-07 015-0096-07 - Coolant Temperature Sensor for the Perkins 1100cc Diesel
$212.99
35.3 015-0096-09 015-0096-09 - Alternator for the Perkins 1100cc Diesel
$829.99
35.4 015-0097-01 015-0097-01 - Starter for 015-0097-00
$1099.99
35.5 015-0097-02 015-0097-02 - Alternator Belt for 015-0097-00
$32.09
35.6 015-0097-03 015-0097-03 - Fuel Shutoff Solenoid for 015-0097-00
$235.99
35.7 015-0097-04 015-0097-04 - Fuel Priming Bulb Pump for 015-0097-00
$103.78
35.8 015-0097-06 015-0097-06 - Thermostat Gasket for 015-0097-00
$21.39
35.10 015-0097-08 015-0097-08 - Fuel Lift Pump for 015-0097-00
$229.99
35.11.5 015-0097-05 015-0097-05 - Thermostat for 015-0097-00
$84.52
35.11 015-0097-09 015-0097-09 - Water Pump w/Gasket for 015-0097-00
$249.99
35.12 015-0097-11 015-0097-11 - Oil Filler Cap for 015-0097-00
$21.39
35.13 015-0097-12 015-0097-12 - Oil Level Dipstick for 015-0097-00
$53.49
35.14 063-2010-01 063-2010-01 - Perkins Oil Filter
$29.37
37 015-1019-00 015-1019-00 - 2019-2024 Renegade Diesel Muffler Catalytic# MUF1693
$175.99
38 017-3001-00 017-3001-00 - 2019-2024 Renegade Diesel Stub Shaft Double V
$150.99
42 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
43 018-0016-00 018-0016-00 - 5/16-18 x 1 Button Head Torx Drive Bolt
$2.99
45 018-0023-00 018-0023-00 - 5/16-18 x 2.25" Hex Bolt
$2.99
58 018-2001-00 018-2001-00 - M8 X 1.25 X 25MM Class 10.9 He x Bolts Zinc
$2.99
80 018-5320-00 018-5320-00 - M8 x 1.25 x 30MM Hex Head Bolt
$2.99
81 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
87 018-6022-00 018-6022-00 - 12mm Bolt - Diesel
$2.99
99 018-9002-00 018-9002-00 - M12 1.25 x 30mm 8.8 hex cap screw No Longer Available
Obsolete.
103 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
114 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
115 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
117 020-2000-00 020-2000-00 - 3/32 X 1/2 Cotter Pins Zinc
$2.99
123 024-0070-00 024-0070-00 - 8mm x 1/8 mpt Adaptor - All Di esel Models
$50.28
136 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
168 032-4051-00 032-4051-00 - Snubbing Washer for Rubber Compression Mount
$17.02
184 039-1010-00 039-1010-00 - Diesel Throttle Bracket 4 Tier
$5.49
185 039-1015-00 039-1015-00 - Radiator Hose Clamp Bracket
$2.99
199 044-2006-00 044-2006-00 - 1/4 X 5/8 Clevis Pin
$2.99
208 051-3003-00 051-3003-00 - Diesel Radiator Hose-Upper
$49.63
210 051-3005-00 051-3005-00 - Diesel Radiator Hose-Lower
$44.93
239 072-2003-00 072-2003-00 - 1 1/8" Hose Clamp
$5.82
240 072-5000-00 072-5000-00 - Diesel Hydraulic Hose Clamp
$7.28
256 086-0003-00 086-0003-00 - Alternator to Starter Cable
$7.79
259 086-7003-00 086-7003-00 - Temperature Sender- 2012 Gauge
$31.17
260 086-7004-00 086-7004-00 - Oil Pressure Sender- For 2012 and Newer Units
$119.99
291 201-8030-00 201-8030-00 - 2019 Diesel Motor Mount Weldment
$11.76
